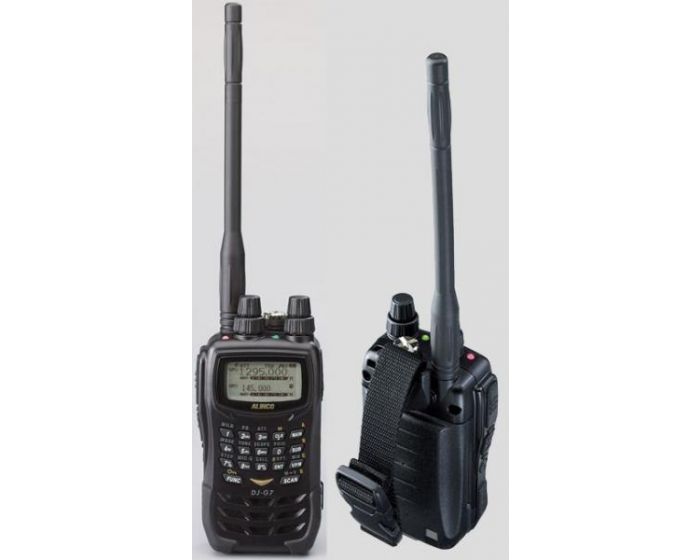

Alinco DJ-G7T 2m/70cm/23cm Tri-band handheld radio
Get ready for action as you hear signals that you may never have heard before. The DJ-G7 tunes 0.530-1299.995MHz continuously, and you can enjoy full duplex receive in combination with the amateur 144/430/1200MHz bands. AM and WFM modes allow you to hear the aviation and broadcast bands and with the broadcast preset memories and built-in AM bar antenna radio listening is easier than ever. Enjoy a variety of scan modes and options that include Time -set scan, 50 pair of programmable scan memories, Timing adjustable priority scanning and Alinco's patented Channel-Scope?visualize the presence of radio signals on the display. There are also two modes of bug detector functions. *Restrictions may apply to frequency combinations for Full-duplex QSO. Customize the DJ-G7 to your personal preferences. Set the parameters to suit your needs and likes. Choose the display language (English/Japanese) lamp function and display contrast and brightness. Select Auto-Power Off / Battery save function. Turn sounds (beep, bell, end beep) on or off. Set the transmitter for VOX / TOT / BCLO. Control the DTMF burst timing, link your scan banks, set priority scan-timing and memory skip functions and more. Personalize the DJ-G7 to make it, "YOUR DJ-G7".
| General | |
| Frequency range: | TX: 144.000 - 147.995MHz / 430.000 - 449.995MHz / 1240.000 - 1299.995MHz Sub-band RX: 0.530 -1299.995MHz (Cellular frequencies 824.000 - 849.995MHz, 869.000 - 894.995MHz blocked on T-version ) |
|---|---|
| Modulation: | TX: F2D/F3E (RX only:WFM,AM) |
| Frequency step: | 5,10, 12.5, 15, 20, 25, 30kHz step |
| Memory channel: | 1000 channels + 1 call channel per ham bands+50 programmed-scan pairs+100 dual-memory+100 priority+100 serch-pass |
| Antenna impedance: | 50ohm unbalanced |
| Frequency stability: | +/- 2.5ppm |
| Supply voltage: | DC 7.4V (EBP-73 Li-Ion battery pack) / DC 4.5 - 16V (external regulated source) |
| Current consumption: (Typical value) |
TX approx. 1.6A/144MHz, 1.8A/430MHz, 0.8A/1200MHz RX approx. 200mA Battery save (1:4) approx. average: Dual 56mA / Single 50mA |
| Temperature range: | -10 to +45 degrees C. (+14 to 113 F) |
| Ground: | Negative |
| Dimensions: | (WxHxD Projections exclusive): 60 x 115 x 30 mm or 2.36 x 4.53 x 1.18 in. |
| Weight: | (Antenna/EBP-73 inclusive): Approx. 296 g /9.55 oz |
| Transmitter | |
| Power Output: (Approx.value) |
DC13.8V: 144MHz/430MHz 5/2/1/0.3W,1200MHz 1/0.3W EBP-73: 144MHz 5/2/0.8/0.3W, 430MHz 4.5/2/0.8/0.3W, 1200MHz 1/0.3W 4 x AA cells (Max): 144MHz 2W, 430MHz 1.5W, 1200MHz 0.5W |
| Modulation: | Variable reactance |
| Spurious emission: | -60dB or less |
| Max. deviation: | +/- 5KHz |
| Mic. impedance: | 2Kohms |
| Receiver | |
| System: | Double-conversion super heterodyne (NFM,AM) Single-conversion super heterodyne (WFM) |
| Sensitivity: | 144/430MHz ham-radio bands -15dBu or better 1200MHz ham-radio band -13dBu or better Sub-band receiver (Best values): AM (10dB S/N): Lower than 50MHz -1dBu 50MHz and above -6dBu FM (12dB SINAD): 30-470MHz -15dBu 470MHz and above -7dBu WFM 76-470MHz -6dBu 470MHz and above -3dBu |
| Intermediate frequency: | Main-band FM 51.65MHz / 450KHz Sub-band AM/FM 50.75MHz / 450KHz Sub-band WFM 10.7MHz |
| Selectivity: | AM/FM -6dB 12KHz or more / -60dB 35KHz or less WFM -6dB 130KHz or more / -60dB 300KHz or less |
| AF output: | 400mW (8ohm, 10% THD) |
EBP-73 Li-Ion Battery Pack 1200mAh 7.4V
EDC-173T Drop-In Charger (120V/T-version)
EA-163 Antenna
EBC-23 Beltclip
Handstrap
