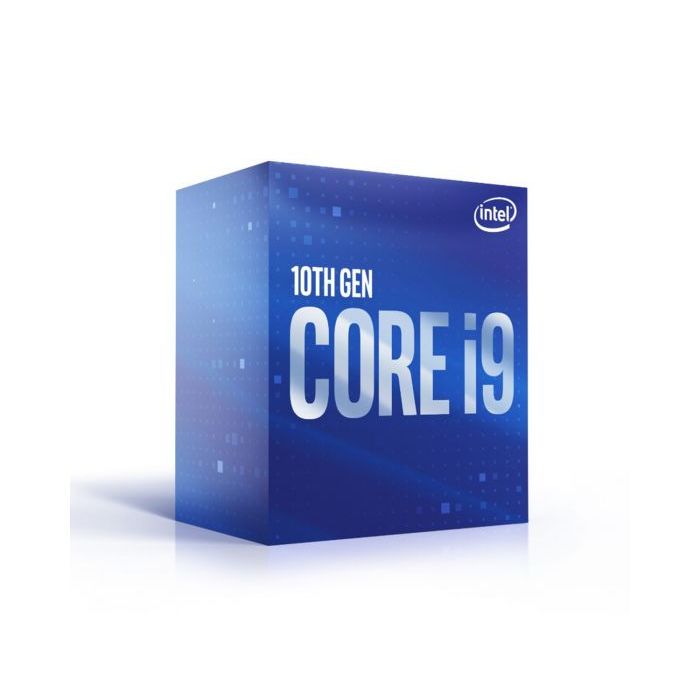

Intel® Core™ i9-10900 Processor (20M Cache, up to 5.20 GHz) |
| Essentials |
|
| Product Collection |
10th Generation Intel® Core™ i9 Processors |
| Code Name |
Products formerly Comet Lake |
| Vertical Segment |
Desktop |
| Processor Number |
i9-10900 |
| Status |
Launched |
| Launch Date |
Q2'20 |
| Lithography |
14 nm |
| Use Conditions |
PC/Client/Tablet |
| Performance |
|
| # of Cores |
10 |
| # of Threads |
20 |
| Processor Base Frequency |
2.80 GHz |
| Max Turbo Frequency |
5.20 GHz |
| Intel® Thermal Velocity Boost Frequency |
5.20 GHz |
| Cache |
20 MB Intel® Smart Cache |
| Bus Speed |
8 GT/s |
| Intel® Turbo Boost Max Technology 3.0 Frequency ‡ |
5.10 GHz |
| TDP |
65 W |
| Supplemental Information |
|
| Embedded Options Available |
No |
| Memory Specifications |
|
| Max Memory Size (dependent on memory type) |
128 GB |
| Memory Types |
DDR4-2933 |
| Max # of Memory Channels |
2 |
| Max Memory Bandwidth |
45.8 GB/s |
| ECC Memory Supported ‡ |
No |
| Processor Graphics |
|
| Processor Graphics ‡ |
Intel® UHD Graphics 630 |
| Graphics Base Frequency |
350 MHz |
| Graphics Max Dynamic Frequency |
1.20 GHz |
| Graphics Video Max Memory |
64 GB |
| 4K Support |
Yes, at 60Hz |
| Max Resolution (HDMI 1.4)‡ |
4096x2160@30Hz |
| Max Resolution (DP)‡ |
4096x2304@60Hz |
| Max Resolution (eDP - Integrated Flat Panel)‡ |
4096x2304@60Hz |
| DirectX* Support |
12 |
| OpenGL* Support |
4.5 |
| Intel® Quick Sync Video |
Yes |
| Intel® InTru™ 3D Technology |
Yes |
| Intel® Clear Video HD Technology |
Yes |
| Intel® Clear Video Technology |
Yes |
| # of Displays Supported ‡ |
3 |
| Device ID |
0x9BC5 |
| Expansion Options |
|
| Scalability |
1S Only |
| PCI Express Revision |
3 |
| PCI Express Configurations ‡ |
Up to 1x16, 2x8, 1x8+2x4 |
| Max # of PCI Express Lanes |
16 |
| Package Specifications |
|
| Sockets Supported |
FCLGA1200 |
| Max CPU Configuration |
1 |
| Thermal Solution Specification |
PCG 2015C |
| TJUNCTION |
100°C |
| Package Size |
37.5mm x 37.5mm |
| Advanced Technologies |
|
| Intel® Optane™ Memory Supported ‡ |
Yes |
| Intel® Thermal Velocity Boost |
Yes |
| Intel® Turbo Boost Max Technology 3.0 ‡ |
Yes |
| Intel® Turbo Boost Technology ‡ |
2 |
| Intel® vPro™ Platform Eligibility ‡ |
Yes |
| Intel® Hyper-Threading Technology ‡ |
Yes |
| Intel® Virtualization Technology (VT-x) ‡ |
Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ |
Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ |
Yes |
| Intel® Transactional Synchronization Extensions |
No |
| Intel® 64 ‡ |
Yes |
| Instruction Set |
64-bit |
| Instruction Set Extensions |
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States |
Yes |
| Enhanced Intel SpeedStep® Technology |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Intel® Identity Protection Technology ‡ |
Yes |
| Intel® Stable Image Platform Program (SIPP) |
Yes |
| Security & Reliability |
|
| Intel® AES New Instructions |
Yes |
| Secure Key |
Yes |
| Intel® Software Guard Extensions (Intel® SGX) |
Yes with Intel® ME |
| Intel® OS Guard |
Yes |
| Intel® Trusted Execution Technology ‡ |
Yes |
| Execute Disable Bit ‡ |
Yes |
| Intel® Boot Guard |
Yes |
