Refurbished RigExpert Stick Pro Antenna Analyzer SN165818
Refurbished by our Tech Room...tested and PASSED

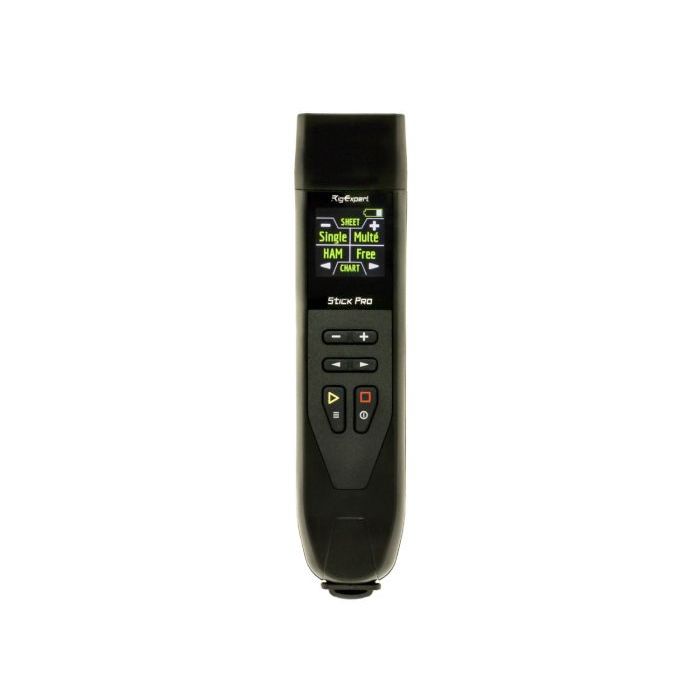

RigExpert Stick Pro: Compact Antenna and Cable Vector Analyzer
Discover the power of the RigExpert Stick Pro, a compact and lightweight antenna and cable vector analyzer with a frequency range of 100 kHz to 600 MHz. Effortlessly measure various parameters of antennas, cables, lines, filters and more both at home and in the field with this innovative analyzer.
Frequency range: 0.1 to 600 MHz
Frequency entry: 1 KHz resolution
Measurement for 25, 50, 75, 100, 150, 200, 300, 450, and 600-Ohm systems
SWR measurement range: 1 to 100 in numerical modes, 1 to 10 in chart modes
R and X range: 0…2000, -2000…2000
Display modes:
SWR, return loss, R, X, Z, L, C, Magnitude and Phase Angle at a single frequency, SWR chart, 100 points. SWR chart at fixed HAM bands by IARU Regions, 100 points, Multé mode – to check your multiband antenna promptly, Cable tools (Velocity factor & Cable length measurer, Stub tuner, Cable loss chart, Cable impedance chart), TDR.
RF output:
- Connector: N-type.
- Output signal shape: square, 0.1 to 600 MHz.
- Output power: -10 dBm (at 50 Ohm load).
Power:
- One 3.7V Li-Ion battery, type 18650
- When the analyzer is connected to a PC or a DC adapter with a USB socket, it takes power from these sources
Interface:
- 220×220 color TFT display
- 2×3 keys on the water-proof keypad
- English menus and help screens
- USB connection to a personal computer
Bluetooth: v.4.2 BLE Single-mode, Class B
Dimensions: 185 mm x 40 mm x 33 mm (7,3 in x 1,6 in x 1,3 in)
Operating temperature: 0…40 °C (32…104 °F)
Weight: 185 g (6,5 Oz) with battery
