Used TYT MD-380G SN76009

$79.00
Used TYT MD-380G SN76009 SKU: ZUS-1843

$79.00

SOLD!

Check Store Stock

Huntsville Store:

Las Vegas:

Used very good TYT MD-380G SN76009. Device is in good, working condition. Package is in good condition. The image shown above is for representation of what the product looks like. It is for representation purposes only.

TYT MD-380G 400-480MHz 5W UHF DMR Digital Radio Handheld Transceiver (without GPS)

This version of the MD-380G does NOT include GPS.

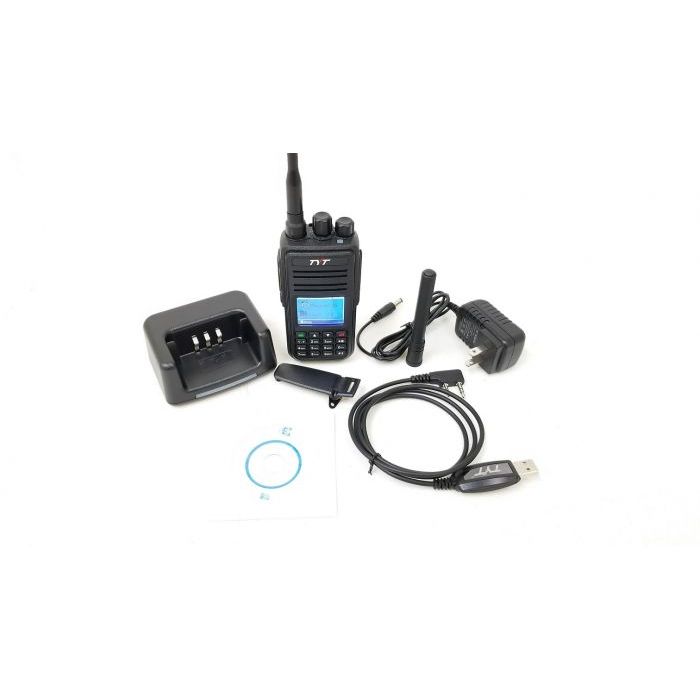

The TYT MD-380G is an excellent value if you are looking for a way to get into DMR. The MD380G offers 5W of output power with lower output settings available. It is compatible with Mototrbo Tier 1 and 2. This UHF DMR radio has a frequency range of 400-480MHz. It features 1000 channels, remote kill/stun/activate, voice prompt, a color LCD, built-in CTCSS/DCS, priority scan, DTMF decoding and encoding, private call, group call and all call in digital mode. In the box with the TYT MD-380G you will find a standard stubby antenna, a high gain antenna, ear-piece, a 2000mAh Li-ion battery, belt clip, charging cradle, wall adapter, user manual, programming cable and software. Be sure to purchase your TYT MD-380G from GigaParts today!

**Use of "MD-380 Tools" software will void your warranty.**

  • Emergency Call
  • Short Text Message via Keypad
  • Quick Text Messages
  • Manual Dial
  • Remote Monitor
  • Remote Check
  • Remote Disable/Enable
  • Enhanced Encryption
  • Private/Group/All Call
  • Lone Worker
  • Power On Password
  • Programming Password
  • Zone Selection
  • Date/Time Programmable
  • Remote Kill/Stun/Activate
  • Voice Prompt
  • Power-On Protection
  • Color LCD Display
  • Text Messages in Digital Mode
  • Encryption Function
  • Built-in CTCSS/DCS
  • Up to 1000 Channels
  • Priority Scan
  • Complying with digital protocol ETSI TS 102 361-1, -2, -3
  • Compatible with MotoTRBO Tier I & II
  • DTMF decoding and encoding
  • Updated Software  available for new features
  • Private Call, Group Call, All Call in Digital Mode
  • Operate in both Digital and Analogue mode, allows easy migration from Analog to Digital
  • Provide clearer voice communications in digital mode, throughout the coverage area
General:
Frequency Range UHF:400-480MHz
Channel 1000 Channels
Channel spacing 12.5KHZ
Operating voltage 7.4v
Battery type Li-ion
Operating temperature -30℃+60℃
Store temperature -40℃+85℃
Antenna Impedence 50Ω
Audio output power [email protected]Ω
Battery capacity 2000mAh standard Li-ion battery
Dimension(H*W*D) 131*61*36mm
Weight 258g

Transmitter:
Output power High: ≤5W(HI) / Low: ≤1W(Low)
Frequency stability +/-1.0ppm
Adjacent channel Power ≤-60dB
Free time slot power TDMA: ≤57dBm
Hum and Noise -40dB @ 12.5KHZ
Spurious Radiation Antenna:9KHz-1GHz≤-36dBm
1GHz-12.75GHz ≤-30dBm
FM modulation mode 12.5KHZ:11K0F3E
4FSK digital mode 12.5KHZ(data only):7K60FXD
12.5KHZ(data+voice):7K60FXE
Modulation Maximum Deviation [email protected]
Nonactive slot power -57dBm
Digital protocol ETSITS102 361-1 -2 -3
Vocoder type AMBE+2TM
Audio response +1dB~-3dB
Modulation BER(Bit error rate) ≤5%

Receiver:
Analog sensibility 0.35uV/-116dBm(20dB SINAD)  /  0.22 uV/-120dBm(Type)
Digital sensibility 0.3 uV/-117.4dBm(BER 5%) /  0.22 uV/-110dBm(BER 1%)
Co-channel Rejection ≥-12dB
Spurious response TIA603C: 75dB  ETSI:  70dB
Adjacent channel selectivity TIA603C: 65dB  ETSI:  60dB
Rated audio power 1W
Audio response =1dB~-3dB
Rated audio distortion 3%(Type)
Spurious radiation Antenna:9KHz-1GHz ≤-57dBm  / 1GHz-12.75GHz ≤-47dBm
