M2 Antenna EB-144
  Bookmark Page Share via email Tweet this! Like this page on Facebook Like this share on Google+



     SKU: ZM2-EB-144


M2 Antenna EB-144



  Regular:    $
  Discounts:


  Net Price:   $







   Product Description

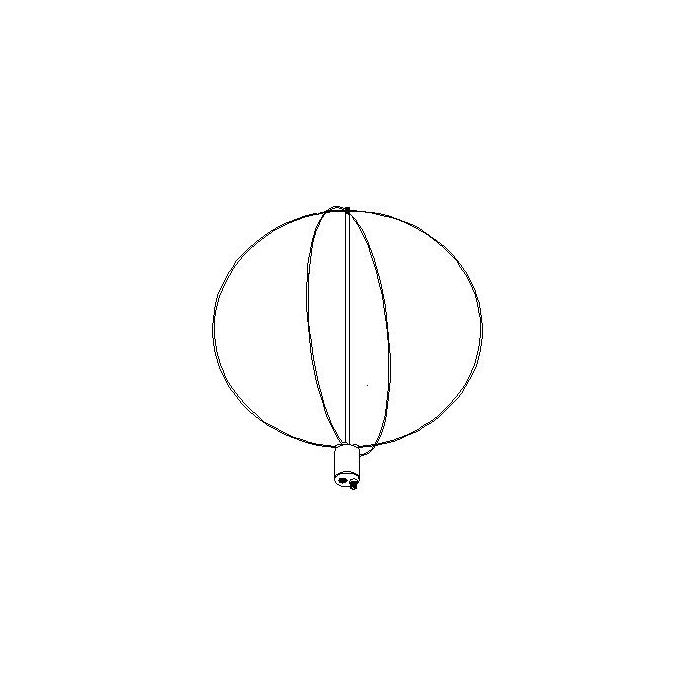

2m Band Eggbeater Style Antenna



The EB-144 EGGBEATER offers exciting new performance characteristics for both fixed and mobile operations. The EGGBEATER produces smooth omnidirectional HORIZONTAL polarity at the horizon. Above the horizon, the pattern transforms to RIGHT HAND CIRCULAR, making it a natural for OSCAR satellite use. By spacing the EGGBEATER 1/8 wave above a metal surface or using the inluced RK-2M radial kit for base installations, the circular lobe increases by 6 dB, producing a hemispherical pattern. No rotation or steering is required. For terrestrial mobile, base, net control, contest or field day operation, increasing the distance above ground or over a metallic surface improves the horizontal radiation by 6 dB. This produces instantaneous communications in all directions. Hams with little room or budget for larger antennas will experience a new standard of performance with the EB-144.



Specifications:




  • Frequency Range: 144 - 148 MHz
  • VSWR: 1.2:1 or better
  • Max Power: 1000 watts
  • Size: 34" W x 28" H
  • Max Wind: 100MPH
  • Connector: SO-239
