Alinco DM-330FX

$149.00
Alinco DM-330FX SKU: ZAL-DM-330FX

$149.00

This item has been discontinued by the manufacturer. Please see ZAL-DM-330MVT as a suitable replacement.

Check Store Stock

Huntsville Store:

Las Vegas:

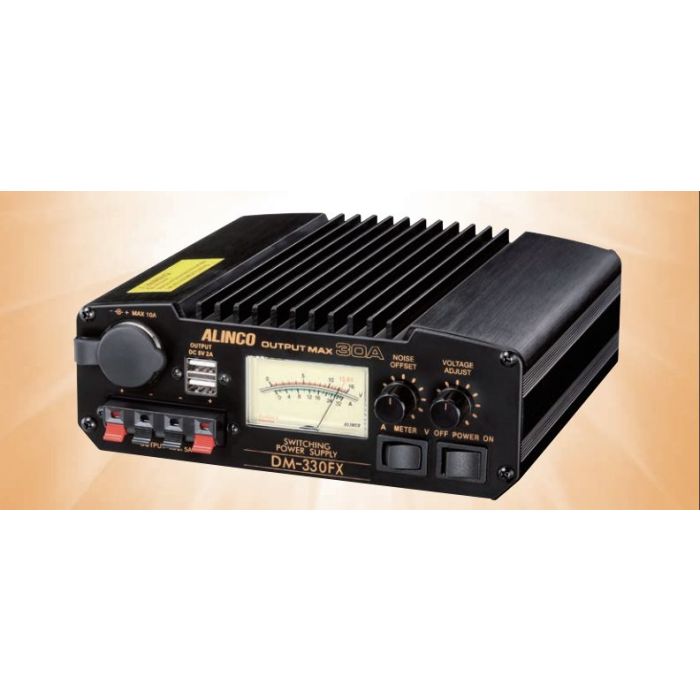

30amp Switching power supply w/ USB

This CE-Approved,"Breakthrough" switching power supply packs a lot of features into a compact, lightweight design that features 9-15VDC variable output and delivers up to 25amps, 30 peak. Unlike other "switchers", it's electrically quiet. But if you should find noise, don't worry! The patented Noise Offset Circuit lets you move the switching noise you might find to another frequency. Other features include a large illuminated "instrument-class" Volt/Amp meter, rear panel binding posts (30A peak), front panel cigar outlet (10A), two pairs of snap-in terminals (5A max.) and USB ports (2A max.), front panel voltage adjust, customer-defined output voltage "memory", ripple less than 50mVp-p and triple circuit protection for short-circuit, over temperature, and current limiting!
SPECIFICATIONS

Input voltage 230VAC(DM-330FXE) / 120VAC(DM-330FXT)
Output voltage 9~15VDC variable
Output voltage variation Less than 3%
Protection short-circuit, Automatic current limiting over 30 over-temperature Output current 30 A (max), 25 A (continuous)
Ripple Less than 50mVp-p at rated load
 Fuse 4 A (FXE), 8 A (FXT)
Meter single volt / current meter, back-lit
Size 190(W)×69(H)×181(D)mm (Projections not included)
Weight Approx.2.5kgs with AC cord
