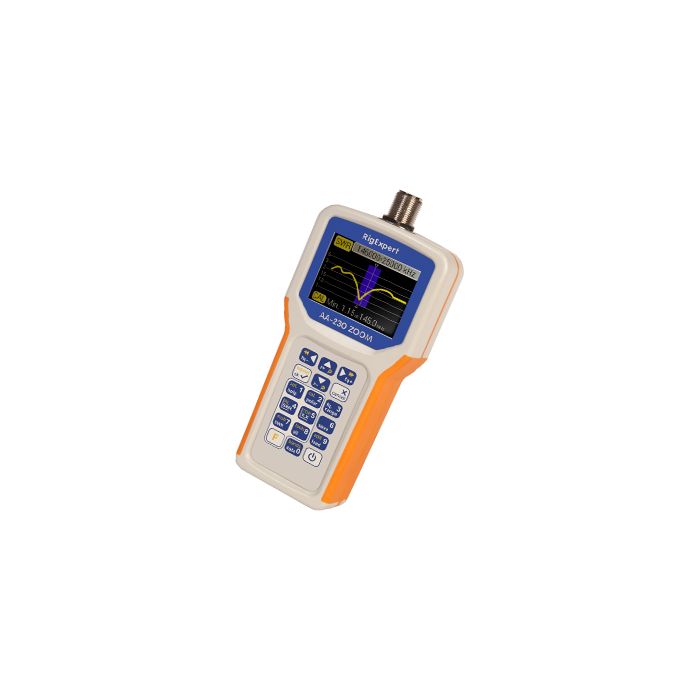

AA-230 ZOOM Antenna Analyzer 100-230MHz w/Bluetooth

Now, thanks to its ability to work in conjunction with a smartphone or the tablet/netbook, the new RigExpert AA-230 ZOOM Option BLE antenna analyzer is your laboratory in a field.

The analyzer is designed for measuring SWR (standing wave ratio), return loss, cable loss, as well as other parameters of cable and antenna systems in the range of 100 kHz to 230 MHz.

A built-in ZOOM capability makes graphical measurements especially effective.

An integrated Time Domain Reflectometer mode can be used to locate a fault within the feedline system.

The following tasks are easily accomplished by using this analyzer:

Rapid check-out of an antenna

Tuning an antenna to resonance

Comparing the characteristics of an antenna before and after a specific event (rain, hurricane, etc.)

Making coaxial stubs or measuring their parameters

Cable testing and fault location, measuring cable loss and characteristic impedance

Measuring capacitance or inductance of reactive loads

Probably some of you have already appreciated the work of AA-55 ZOOM Option Bluetooth.

The main idea is that we are not just installed a small Bluetooth module in our devices the RigExpert AA-55 ZOOM Option Bluetooth and the RigExpert AA-230 ZOOM Option BLE, but:

1. The presence of the Bluetooth module makes it possible galvanically isolate the device from the PC. Which is especially important for RF professionals for the accuracy of calculations.

2. Creating a free AntScope application for iOS and Android it is an effort of our highly skilled software developers, which spend a lot of time to make customers happy.

3. In the future, the Bluetooth function will enable our devices to use external measurement modules: a power meter, a spectrum analyzer, etc.


Also, our Design Bureau engineers are constantly developing the new models of devices and improve the current ones.

All of the above gives a great added value to our devices, doesn’t it?

Frequency range: 0.1 to 230 MHz Bluetooth specs.: Bluetooth Specification v.4.0 (BLE). Frequency entry: 1 kHz resolution Measurement for 25, 50, 75 and 100-Ohm systems SWR measurement range: 1 to 100 in numerical modes, 1 to 10 in chart modes SWR display: numerical or analog indicator R and X range: 0…10000, -10000…10000 in numerical modes, 0…1000, -1000…1000 in chart modes Display modes: – SWR at single or multiple frequencies – SWR, return loss, R, X, Z, L, C at single frequency – SWR chart, 20 to 500 points – R, X chart, 20 to 500 points – Smith chart, 20 to 500 points – Return loss chart, 20 to 500 points – TDR (Time Domain Reflectometer) chart – Cable tools (loss and characteristic impedance) Optional open-short-load calibration. Non Volatile memory: – 100 slots to save measurement results RF output: – Connector type: N – Output signal shape: square – Output power: -10 dBm (at 50 Ohm load) Power: – Four 1.5V alkaline batteries, type AAA – Four 1.2V Ni-MH batteries, type AAA * – Max. 4 hours of continuous measurement, max. 2 days in stand-by mode when fully charged batteries are used – When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources Interface: – 290×220 color TFT display – 6×3 keys on the water-proof keypad – Multilingual menus and help screens – USB connection to a personal computer Dimensions: 82 x 182 x 32 mm (3.2 x 7.2 x 1.3 in) Operating temperature: 0…40 °C (32…104 °F) Weight: 236 g (8.32 oz) Warranty: 2 years GTIN-13: 4820185420211 RigExpert AA-230 ZOOM is made in Ukraine. Specifications are subject to change without notice. * Batteries are not included with the analyzer.
  • RigExpert AA-230 ZOOM-BT
  • N Male SO-239 Female adaptor
  • USB cable
  • Soft case
  • User’s manual
