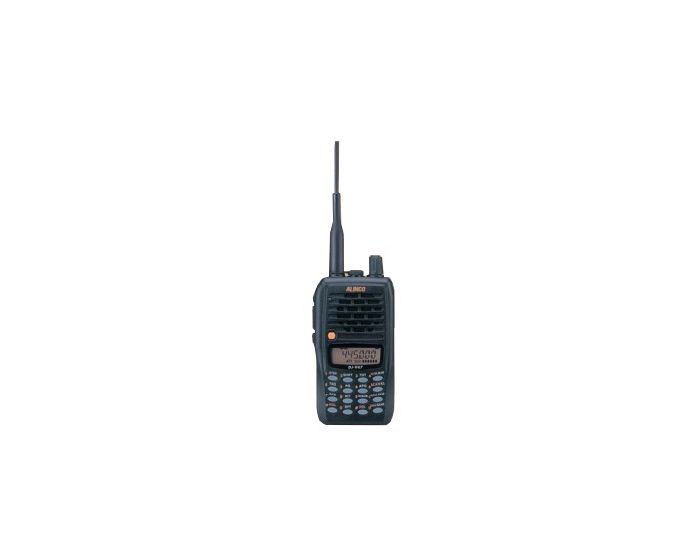

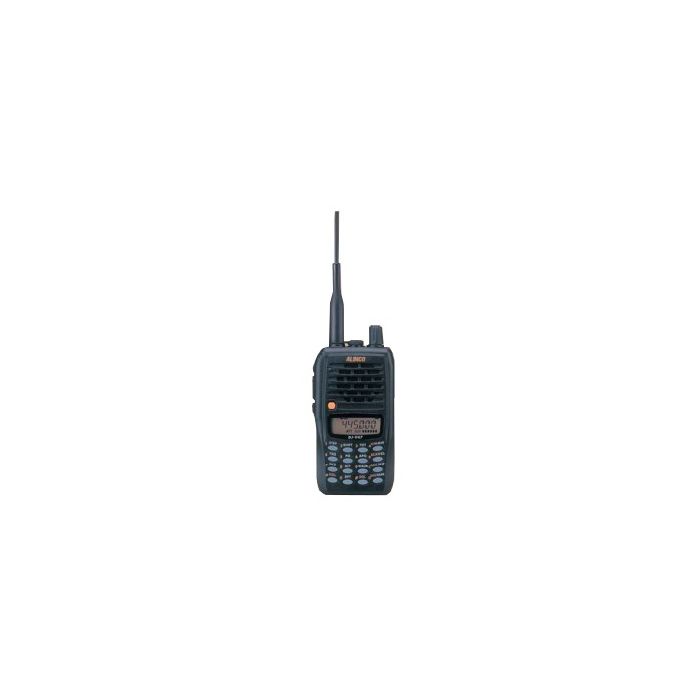

main product photo

Alinco DJ-V47T

SKU
ZAL-DJ-V47T
$79.00
Add to Wish List

This item has been discontinued by the manufacturer.

Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

Alinco DJ-V47T 440MHz 5W FM Handheld
The "new generation" DJ-V47T is loaded with features, including:
  • New, two-touch repeater access
  • High grade waterproof materials compatible to IPX7* (submersible 1m/3ft. for 30 min.)
  • Rugged polycarbonate body resists dirt, dust and moisture
  • Highly visible backlit alphanumeric display
  • Direct frequency input through illuminated keypad (V-models only)
  • DTMF Autodialer with Memory includes nine autodial memories plus redial function (V-models only)
  • 200 Memories and one call channel
  • VFO, Memory and Scan modes
  • Ultra-flexible antenna with SMA connector avoids breakage
  • 39 CTCSS tone squelch (encode+decode) settings
  • Tone burst function (1,000, 1450, 1750 and 2100Hz)
  • Battery-drain function avoids memory-effect
  • Ergonomic design, fits in the palm of your hand
  • Wire cloning capability
  • Ni-MH standard and varieties of optional batteries including Li-ION packs
  • 2-level attenuator
  • Waterproof single mic/speaker jack
STANDARD ACCESSORIES
  • Ni-MH battery pack EBP-65 (7.2V 700mA)
  • EDC-146(T) or EDC-147(other versions) wall-charger
  • Flexible whip antenna (EA0141 or EA0142 depending on the versions)
  • Belt clip
  • Hand strap
  • Instruction manual
Frequency range:DJ-V17 / S17
T: TX144 - 147.995MHz RX130 - 173.995MHz
E: TX/RX 144 - 145.995MHz
DJ-V27T
T: TX222 - 224.995MHz RX216 - 249.995MHz
DJ-V47 / S47
T: TX430 - 449.995MHz RX410 - 470MHz approx.
E: TX/RX 430 - 439.995MHz
Modulation:F3E (FM)
Frequency step:5,10, 12.5, 15, 20, 25, 30kHz step
Memory channel:200 channels + 1 call channel + 1 Repeater-Access parameter memory
Antenna impedance:50ohm unbalanced
Frequency stability:DJ-V17 / S17: +/- 5ppm
DJ-V27/V47 / S47: +/- 2.5ppm
Supply voltage:DC 7.0 - 16.0V (EXT DC-IN)
Current consumption:
(Typical value)		TX at High power V/S17 1.4A, V27T 1.6A, V/S47 1.7A
RX at 500mW AF out: 250mA
Stand-by: V/S17 70mA, V27T 80mA, V/S47 80mA
Battery-save ON: average 26mA
Temperature range:Unit -10digC to 60digC (+14digF to +140digF)
Battery packs: -10digC to +45digC (+14digF to +113digF)
Ground:Negative
Dimensions:58(W)x110(H)x36.4(D)mm (2.28"(W)x4.33"(H)x1.43"(D)) with EBP-63 w/o projection
Weight:Approx.280g (9.9oz) with EBP-65N & antenna
Transmitter
Power Output:
(Approx.value)		V/S17: 5W (with EBP-65N) 5W (with DC 13.8V) 0.8W (LOW output)
V27T: 5W (with EBP-65N) 5W (with DC 13.8V) 0.8W (LOW output)
V/S47: 4.5W (with EBP-65N) 5W (with DC 13.8V) 0.8W (LOW output)
Modulation:Variable reactance
Spurious emission:-60dB or less
Max. deviation:FM : +/- 5KHz
Mic. impedance:2Kohm
Receiver
System:Double-conversion super heterodyne
Sensitivity:-14.0dBu (0.2uV) or less
Intermediate frequency:DJ-V/S17: 1st IF 21.7MHz 2nd IF 450kHz
DJ-V/S47 & V27T: 1st IF 38.85MHz 2nd IF 450kHz
Selectivity:-6dB: 12kHz or more -60dB: 35kHz or less
AF output:Max 500mW / 400mW (8ohm, 10% distortion) /
