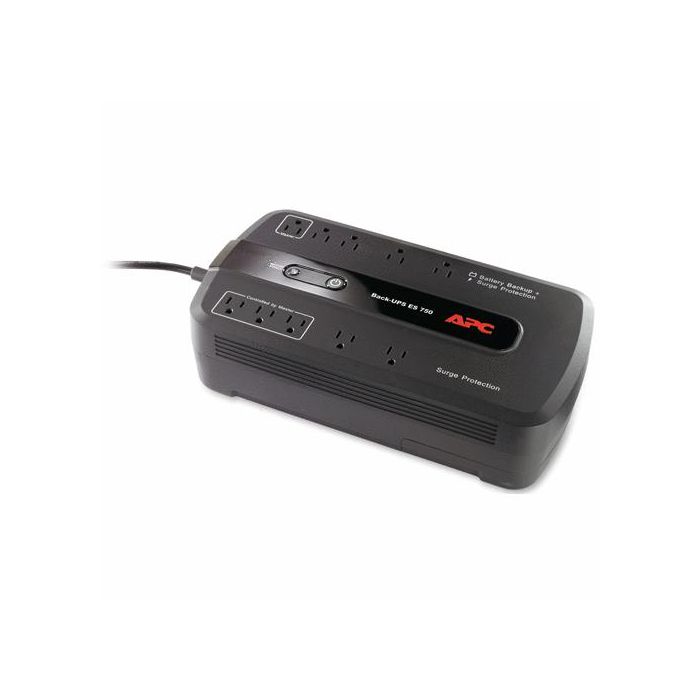

APC Back-UPS ES 750 Master Control - UPS ( external ) - AC 120 V - 450 Watt - 750 VA - USB - 10 output connector(s)
The Back-UPS ES offers APC's best value for protecting your home and home office computer systems. It provides battery backup power that allows you to work through short and medium length power outages. It also safeguards your equipment from damaging surges and spikes that travel along your utility and phone lines. Award-winning software automatically shuts down your computer system in the event of an extended power outage. Additional features like audible alarms, an LED status indicator, user replaceable battery, push-button circuit breakers and transformer-block spaced outlets make the Back-UPS ES the perfect unit to protect your productivity from the constant threat of power outages and lost data.
Specifications: - Mfr Part Number: BE750G
- Output:
- Output Power Capacity: 450 Watts / 750 VA
- Max Configurable Power: 450 Watts / 750 VA
- Nominal Output Voltage: 120 V
- Output Frequency (sync to mains): 60 ±3 Hz
- Waveform Type: Stepped approximation to a sinewave
- Output Connections: 5x NEMA 5-15R (Battery Backup); 5x NEMA 5-15R (Surge Protection)
- Input:
- Nominal Input Voltage: 120 V
- Input Frequency: 50/60 ±3 Hz (auto sensing)
- Input Connections: NEMA 5-15P
- Cord Length: 6 ft / 1.83 meters
- Input voltage range for main operations: 88~139 V
- Batteries & Runtime:
- Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte - leakproof
- Included Battery Modules: 1
- Typical recharge time: 16 hours
- Replacement battery cartridge: RBC17
- RBC Quantity: 1
- Efficiency in Battery Operation: 83%
- Maximum Battery Current at End of Discharge: 55
- Typical Backup Time (at Half Load): 11.3 minutes (225 Watts)
- Typical Backup Time (at Full Load): 2.3 minutes (450 Watts)
- Communications & Management: Control panel - LED status display with On Line; On Battery; Replace Battery and Building Wiring Fault
- Surge Protection and Filtering:
- Surge energy rating: 355 Joules
- Filtering: Full time multi-pole noise filtering; 5% IEEE surge let-through, zero clamping response time, meets UL 1449
- Dataline protection: RJ-45 Modem/Fax/DSL/ISDN/10-100 Base-T protection, Cable modem / Video protection
- Regulatory Approvals: FCC Part 15 Class B, FCC Part 68, NOM, UL 1778
- Audible noise at 1 meter from surface of unit: 45 dBA
- Online Thermal Dissipation: 47.00 BTU/hr
- Color: Black
- Dimensions: 7.09 x 13.49 x 3.48 inch / 180 x 343 x 88 mm
- Weight: 10.34 lbs / 4.7 kg
