Arrow Antennas 52-4S

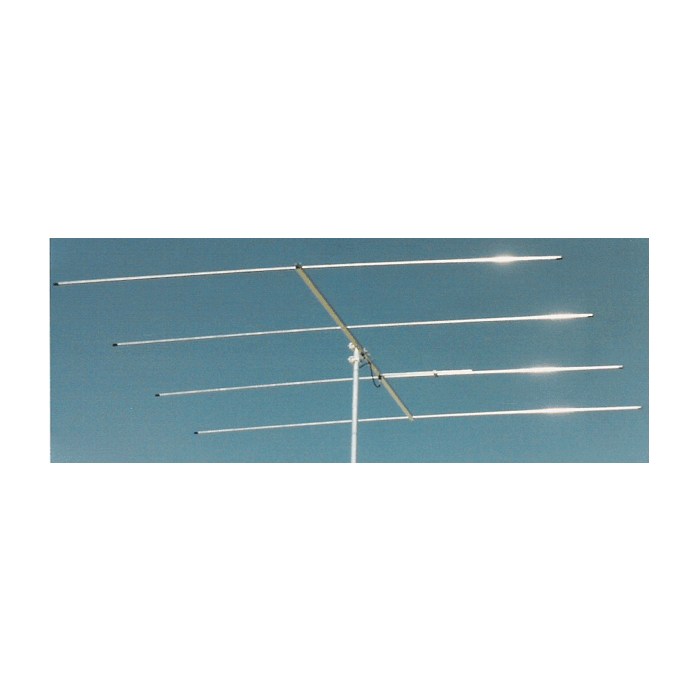

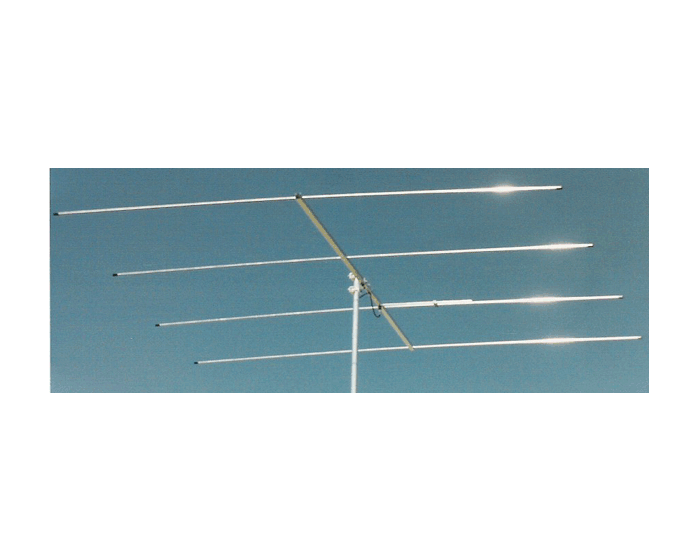

Arrow 4 Element Yagi Beam Antenna for 6 meters
Arrow antennas are hand held directional Yagi antennas made in America and a great accessory for the ham that wants a very directional, focused propagation of his transceiver radio so he/she can work LEO (low earth orbit) satellites and distant repeaters. The antenna’s direction is modified by a reflector (the largest element, located at the “back” of the antenna) and then several reflectors, or directors, set in parallel help to focus the propagation of the antenna. The more reflectors the Yagi has, the greater the gain.
This is a direct scale of our 4 Element 2 meter Yagi. Elements are 3/8" Solid Aluminum. Boom is 1" sq. Tube, Length is 115 inches (2 piece). In Line (Direct Feed) Gamma Match with SO239 Connector. Instructions show how to adjust for a center frequency from 50 MHz. to 54 MHz. (2:1 Bandwidth is over 4 MHz.)
(Maximum power is 150 Watts.)
Mounting Hardware included. (Stainless Steel and Zinc coated.) Mounts horizontally or vertically on a mast up to 1 1/2 inches using our original saddle design or on a mast up to 2 inches using modified mounting plate and zinc u-bolts (available upon request).
(BP stands for BackPack)
