ASUS ROG STRIX B850-F GAMING WIFI ATX DDR5 AM5 Motherboard - STRIXB850FGAMWI

Availability:
In stock

Description

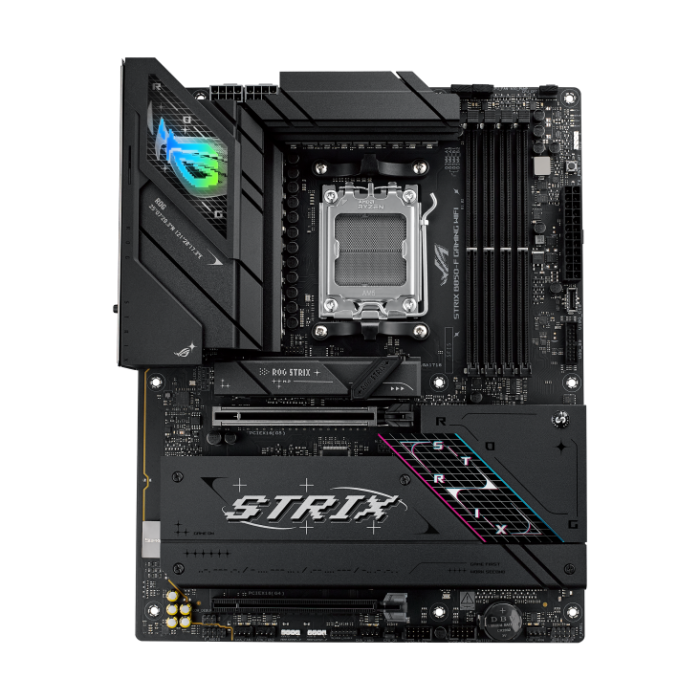

ROG STRIX B850-F GAMING WIFI
ROG Strix B850-F Gaming WiFi ATX Motherboard: Dominate with AMD Ryzen 9000 Series Processors
Unleash the ultimate gaming experience with the ROG Strix B850-F Gaming WiFi motherboard, engineered for peak performance with AMD Ryzenâ„¢ 9000, 8000, and 7000 Series Desktop Processors. This motherboard is built for elite gamers and demanding AI PC applications, offering cutting-edge connectivity, robust power delivery, and intelligent AI optimizations. Experience lightning-fast speeds, immersive audio, and a DIY-friendly design, making it the perfect foundation for your next-gen gaming rig.
Key Features
- AMD Ryzenâ„¢ 9000 Series Ready: Supports the latest AMD Ryzenâ„¢ 9000, 8000, and 7000 Series Desktop Processors for unparalleled gaming performance.
- Robust Power Solution: 16+2+2 power stages (80A per stage) ensure stable power delivery for demanding CPUs, enabling confident overclocking.
- Blazing-Fast Connectivity: Experience next-gen speeds with WiFi 7, Intel 2.5Gb Ethernet, and a USB 20Gbps Type-C® port for lightning-fast data transfers.
- DDR5 Support: Supports up to 192GB of DDR5 memory with AEMP (ASUS Enhanced Memory Profile) for enhanced performance and stability.
- PCIe 5.0 Ready: Fully embraces the new PCIe 5.0 standard for both graphics cards and NVMe SSDs, maximizing bandwidth and performance.
- Immersive Audio: SupremeFX audio with the ALC4080 codec and Savitech amplifier delivers high-fidelity sound, complemented by Dolby Atmos for immersive 3D audio.
- AI Optimizations: Features AI Networking II for optimized network performance and ASUS AI Advisor for easy access to motherboard features.
- DIY-Friendly Design: Includes M.2 heatsinks, backplate, Q-Release mechanisms (PCIe Slot Q-Release Slim, M.2 Q-Release, M.2 Q-Latch, M.2 Q-Slide), and Q-Antenna for easy installation and maintenance.
- Aura Sync RGB Lighting: Customize your build with onboard RGB LEDs and synchronize lighting effects with compatible ROG devices using ASUS Aura technology.
- M.2 Support: Two onboard M.2 slots with heatsinks and backplate to maximize NVMe SSD performance.
This powerhouse embraces cutting-edge technologies like PCIe 5.0, DDR5, and WiFi 7, ensuring your system is ready to handle the most demanding games for years to come. Experience unparalleled immersion with SupremeFX and Dolby Atmos. SupremeFX delivers high-fidelity audio, while Dolby Atmos expands the soundscape with height channels, creating a truly 3D soundscape that brings your games to life. Building your dream PC is easier than ever with the ROG Strix B850-F's DIY-friendly design and intelligent features. From M.2 heatsinks that keep your storage cool to Q-Release mechanisms for hassle-free installation, the ROG Strix B850-F simplifies the building process so you can focus on what matters most: enjoying the game.
Upgrade your gaming experience today! Purchase the ROG Strix B850-F Gaming WiFi motherboard now and dominate the competition.
Specifications
CPU |
---|
AMD Socket AM5 for AMD Ryzenâ„¢ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list. |
Chipset |
AMD B850 Chipset |
Memory |
4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzenâ„¢ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPOâ„¢) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
Graphics |
1 x DisplayPort* 1 x HDMIâ„¢ port** - Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. * Supports max. 8K@30Hz as specified in DisplayPort 1.4 ** Supports 4K@60Hz as specified in HDMI 2.1 |
Expansion Slots |
AMD Ryzenâ„¢ 9000 & 7000 Series Desktop Processors - 1 x PCIe 5.0 x16 slot with Q-Release Slim AMD Ryzenâ„¢ 8000 Series Desktop Processors - 1 x PCIe 5.0 x16 slot with Q-Release Slim (supports PCIe 4.0 x8 or x4 mode)* AMD B850 Chipset - 1 x PCIe 4.0 x16 slot (supports x4 mode)** * Specifications vary by CPU types. ** PCIEX16(G4) slot (supports x4 mode) from AMD B850 Chipset shares bandwidth with M.2_3 |
Storage |
Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzenâ„¢ 7000 & 9000 Series Desktop Processors - M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode) - M.2_2 (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) AMD Ryzenâ„¢ 8000 Series Desktop Processors - M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode) - M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)* AMD B850 Chipset - M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)** - M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4) - 2 x SATA 6Gb/s ports * Specifications vary by CPU types. ** M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled. AMD RAIDXpert2 Technology - Ryzenâ„¢ 9000 Series Processors: RAID 0/1/5/10 - Ryzenâ„¢ 8000 Series Processors: RAID 0/1 - Ryzenâ„¢ 7000 Series Processors: RAID 0/1/10 |
Ethernet |
1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
Wireless & Bluetooth |
Wi-Fi 7* - 2x2 Wi-Fi 7 (802.11be) - Supports 2.4/5/6GHz frequency band** - Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4*** * Wi-Fi features may vary depending on the operating system. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
USB |
Rear USB (Total 12 ports) - 1 x USB 20Gbps port (1 x USB Type-C®) - 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) - 4 x USB 5Gbps ports (4 x Type-A) - 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) - 1 x USB 10Gbps connector (supports USB Type-C®) - 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports - 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A |
Audio |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. |
Back Panel I/O Ports |
- 1 x USB 20Gbps port (1 x USB Type-C®) - 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) - 4 x USB 5Gbps ports (4 x Type-A) - 4 x USB 2.0 ports (4 x Type-A) - 1 x DisplayPort - 1 x HDMI™ port - 1 x Wi-Fi module - 1 x Intel® 2.5Gb Ethernet port - 2 x Audio jacks - 1 x Optical S/PDIF out port - 1 x BIOS FlashBack™ button - 1 x Clear CMOS button |
Internal I/O Connectors |
Fan and Cooling Related - 1 x 4-pin CPU Fan header - 1 x 4-pin CPU OPT Fan header - 1 x 4-pin AIO Pump header - 4 x 4-pin Chassis Fan headers Power Related - 1 x 24-pin Main Power connector - 2 x 8-pin +12V CPU Power connector Storage Related - 4 x M.2 slots (Key M) - 2 x SATA 6Gb/s ports USB - 1 x USB 10Gbps connector (supports USB Type-C®) - 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports - 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous - 3 x Addressable Gen 2 headers - 1 x CPU Over voltage jumper - 1 x Front Panel Audio header (F_AUDIO) - 1 x Power button - 1 x 10-1 pin Front System Panel header - 1 x Thermal Sensor header - 1 x Thunderbolt™ (USB4®) header |
Special Features |
Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink ASUS EZ DIY - BIOS FlashBackâ„¢ button - BIOS FlashBackâ„¢ LED - Clear CMOS button - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 headers |
Software Features |
ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software - Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 - GameFirst - HWiNFO - Power Saving - ASUS DriverHub - ASUS GlideX - TurboV Core - Adobe Creative Cloud (Free Trial) - Norton 360 for Gamers (60 Days Free Trial) - WinRAR (40 Days Free Trial) |
BIOS |
256 Mb Flash ROM, UEFI AMI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
Manageability |
WOL by PME, PXE |
