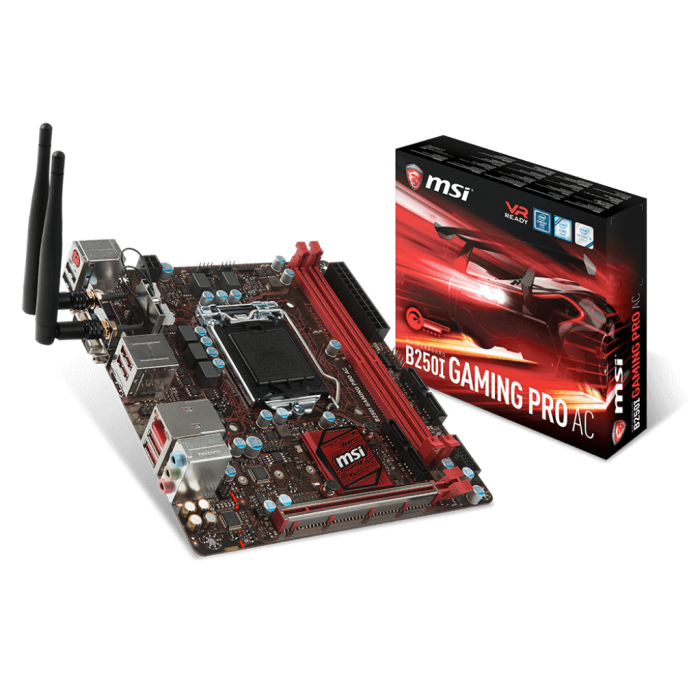

MSI B250I GAMING PRO AC HDMI, DVI, LAN, M.2, WIFI, MITX

Supports 7th / 6th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1151 socket
Supports DDR4-2400 Memory (Max.)
DDR4 Boost: Give your DDR4 memory a performance boost
VR Ready: Best virtual reality game experience without latency
Lightning Fast Game experience: Turbo M.2, Intel Optane Memory Ready
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
GAMING LAN: The best online gaming experience with lowest latency and bandwidth management
Military Class 4, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
Mystic Light Sync: Synchronize other RGB solutions with your gaming rig and control all LEDs in one click
In-Game Weapons: GAMING Hotkey, X-Boost, Xsplit Gamecaster
EZ Debug LED: Easiest way to troubleshoot
Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players

Supports 7th / 6th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1151 socket
Supports DDR4-2400 Memory (Max.)
DDR4 Boost: Give your DDR4 memory a performance boost
VR Ready: Best virtual reality game experience without latency
Lightning Fast Game experience: Turbo M.2, Intel Optane Memory Ready
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
GAMING LAN: The best online gaming experience with lowest latency and bandwidth management
Military Class 4, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
Mystic Light Sync: Synchronize other RGB solutions with your gaming rig and control all LEDs in one click
In-Game Weapons: GAMING Hotkey, X-Boost, Xsplit Gamecaster
EZ Debug LED: Easiest way to troubleshoot
Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players

CPU

• Supports 7th/ 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
* This function will be supported depend on the CPU.

Chipset

• Intel® B250 Chipset

Main Memory

• 2 x DDR4 memory slots, support up to 32GB
- 7th Gen processors support DDR4 2400/ 2133 MHz*
- 6th Gen processors support DDR4 2133 MHz*
• Dual channel memory architecture
• Supports Intel® Extreme Memory Profile (XMP)
* Please refer www.msi.com for more information on compatible memory.s
* DDR4 memory modules can only run at maximum of 2400 MHz for 7th Gen processors and 2133 MHz for 6th Gen processors on XMP mode.

Slots

• 1 x PCIe 3.0 x16 slots
• 1 x M.2 Wi-Fi/ Bluetooth® module vertical slot (Key E)

Storage

• Intel® B250 Chipset
• 4 x SATA 6Gb/s ports*
• 1 x M.2 slot (Key M slot on the bottom of the motherboard)
- Supports up to PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260 /2280 storage devices
- Intel® Optane™ Memory Ready
* The SATA1 connector will be unavailable when an M.2 SATA SSD module has been installed in the M.2_2 slot.

USB

• Intel® B250 Chipset
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
- 4 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connector)

Audio

• Realtek® ALC887 Codec
- 7.1-Channel High Definition Audio

WLAN & Bluetooth

• Wi-Fi/ Bluetooth® expansion module with Intel® Dual Band Wireless-AC 8265 chip
- Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed.
- Supports Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2

LAN

• 1 x Realtek RTL8111H Gigabit LAN controller

Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Serial port connector
- 1 x LED connecotr
- 1 x Clear CMOS jumper

Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse combo port
- 2 x USB 2.0 Type-A ports
- 2 x antenna connectors
- 1 x DVI-D port
- 4 x USB 3.1 Gen1 Type-A ports
- 1 x HDMI™ port
- 1 x LAN (RJ45) port
- 3 x audio jacks

Dimension

• 6.7 in. x 6.7 in. (17 cm x 17 cm)
• Mini-ITX Factor

Mounting

• 4 mounting holes
