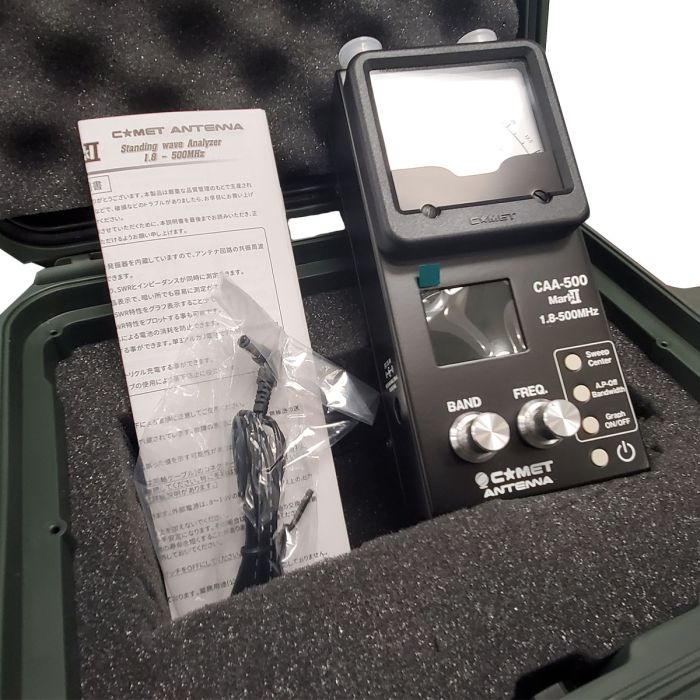

The NEW CAA-500MARKII SWR/Impedance Analyzer is finally arriving from the Comet factory!
The new analyzer retains the same analog cross needles to display SWR and impedance, but ADDS a full color TFT LCD display screen providing graphic and numerical SWR along with total impedance with R and X values.
The CAA-500MarkII is the primary tool for any antenna adjustment or diagnostic project!
AUTO SWEEP MODE
Automatically graphs the SWR on the LCD display. Choose any one of the pre-set amateur band frequency ranges and press the sweep button…in about 30 seconds the SWR graph is completed and displayed.
MANUAL SWEEP MODE
Choose the band and manually set the band-width and manually sweep the chosen frequency range.
MULTIPLE MANUAL SWEEPS
Should you want to make an adjustment to the antenna length, to the position, height above ground, a gamma match adjustment, etc…you can overlay 5 manual sweep results in different colors! Instantly graph and see exactly what happened after each adjustment!
Range: 1.8 – 500MHz (including 222MHz band)
- RF output level: 0dBm 1 mW
- Measured SWR Range: Analog meter 1.0 – 6.0:1 , LCD display 1.0 – 9.9:1
- Impedance measurements: 12.5-300 ohms
- Reactance range: 0 – 500 Ohms (absolute value) 1.8 -190MHz
- Battery indicator and selectable Auto-Power-Off timer
- Operates up to 9 hours continuous using six AA Alkaline or NiMH cells (not included) or use an external 8-16VDC 200ma power source (DC cable included)
- Internal trickle charger option when using NiMH batteries
- Size: 3.5 x 7.75 x 2.65 inches (overall)
- Weight: 2lbs 2oz with alkaline batteries installed
- SO-239 for 1.8-300MHz range
- N-female for 300-500MHz range
Nanuk 905 Case w/foam - Olive
NANUK comes loaded with innovative features. Countless hours of research and development went into defining the requirements for NANUK. The result is a line of cases that are equipped to meet today’s challenges. Responding to feedback from professionals in various fields, NANUK is the evolution of traditional protective cases. NANUK has also been designed to adapt as your needs change.
Many features that are optional on other cases are standard on NANUK. By integrating attachment features into the case at the design stage, you can easily add a shoulder strap or a panel kit without modifying the case with holes or additional hardware. The attachment features are already there when you need them.
Cubed Foam
- Made of high quality polyurethane foam, the multi-layered set of customizable inserts includes a pre-scored removable layer. This layer consists of foam squares that can be removed in various configurations to accommodate the contents of the case. This solution is ideal if you are seeking a quick and easy way to protect and organize your items.
Powerclaw Latching System
- The PowerClaw latching system (US Patent No. 8,297,464) used on all NANUK cases is engineered to keep your case closed during the toughest of missions.
- The PowerClaw clamps the case tightly closed using compressive force while the integrated slide lock prevents the case from opening during transport or when dropped.
- The super tough nylon construction ensures your precious items remain safely inside the case no matter where the journey takes you.
Waterproof - IP67 Rated
- NANUK Waterproof Cases IP67 Rated (Submersion at 3ft for 30 min)
- The waterproofing seal used in all NANUK watertight cases is custom designed to fit our products. The seal is designed to resist deformation and fatigue, ensuring a long lasting watertight seal.
- Our waterproof cases are ideal for applications such as search and rescue, marine transportation / storage and diving. Any of our many dealers can easily outfit you with one of our waterproof cases, accessories or other products.
-
- NANUK equipment cases and transportation products are complete with a lifetime guarantee in materials and workmanship for the life of our products.
Impact Resistant NK-7 Resin
- Impact Resistant Hard Sided Cases
- NANUK tough cases were designed with one objective in mind: survival. With rounded corners, thick wall construction and oversized details, NANUK durable hard sided cases are built to absorb the shocks without damaging the case or more importantly your contents.
-
- Based on Plasticase’s years of experience in the plastics industry, our new NK-7 resin durable cases were developed specifically for the demanding conditions that NANUK will be exposed to. Highly impact resistant, lightweight, and rugged, our NK-7 resin tough hard sided cases can withstand nature’s extremes.
-
- No matter the application, NANUK durable protective cases clearly offer superior performance. Rugged, dependable, and efficient; NANUK impact resistant and toughhard sided cases will never let you down.
Padlock-able
- Every NANUK case come equipped with two padlock-able hasps molded directly into the case for superior strength. High quality TSA approved combination padlocks are available as an option to keep your items secure within your case.
Other Features:
- Stackable
- Bezel System
- Handle Stay
- Lid Stay
- Stainless Steel Hardware
Interior dimensions
L9.4" x W7.4" x H5.5"
L239mm x W188mm x H140mm
Exterior dimensions
L12.5" x W10.1" x H6.0"
L318mm x W257mm x H152mm
Weight (empty)
3.3 lbs | 1.5 kg
Lid depth
1.4" | 36mm
Base depth
4.1" | 104mm
Material
lightweight NK-7™ resin
Max buoyancy
17 lbs | 7.7 kg
Temperature range
Min -20°F (-29°C ) Max 140°F (60°C)
Airline carry-on
yes
Watertight
yes
Warranty
conditional lifetime guarantee
