Comet Antennas CMX-2300

This item has been discontinued.  Please make another selection.

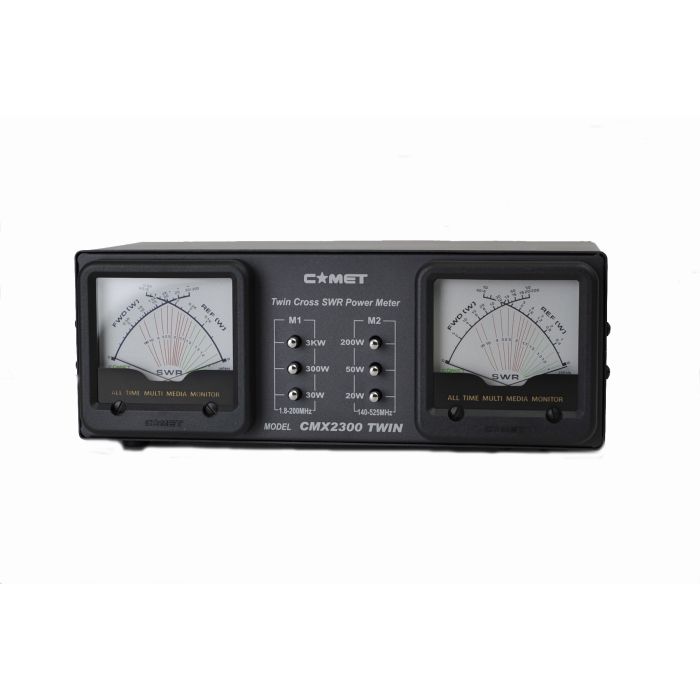

Comet CMX-2300 NEW!!  Twin cross-needle meters in a single case
Forward power, reflected power and SWR are all displayed simultaneously
Each meter has a -30db (nominal) attenuated BNC jack to monitor wave form and frequency
Both meters can operate at the same time
12V DC jack to light the meters

Meter 1)  1.8-200MHz
Max Power: 3kW  (HF)  1kW (VHF)
Power ranges:  30/300/3kW

Meter 2) 140-525MHz
Max Power: 200W
Power ranges: 20/50/200W

Peak/Average power selector
Accuracy:  +/- 10% of full scale
Impedance: 50 Ohm
VSWR: 1.2:1 or less
Insertion loss: 0.2dB or less
Connectors:  SO-239s
Overall dimensions:  10" (W) x 4" (H) x 5.5" (D)
Weight: 3 lbs 4 ozs
