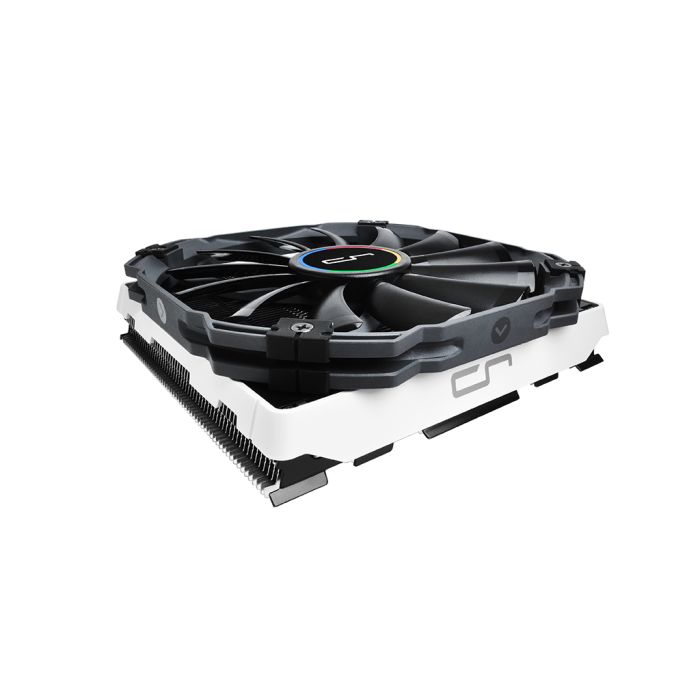

CRYORIG C1 140mm Top Flow Low Profile Heatsink
Born for ITX Systems
Fast, Cool and Versatile
The Low Profile Super Cooler
Featuring our patented DirectCompress™ Soldering, each heatpipe has 10% more contact surface than traditional manufacturing methods. Increased contact surface means more heat transferred and a cooler CPU.
Faster Hot Air Exhaust
Keeping The System Cool
The C1 features CRYORIG proprietary Jet Fin Acceleration System™. Utilizing two stacks of fins with different gap distances, this causes hot exhaust air to move faster out of the heatsink.
Moving More Heat
U-Type heatpipes spreads heat in two Directions simultaneously increasing heat carrying capacity. The C1 has a total of 6 full copper sintered heatpipes, containing 4 high capacity U-Type heatpipes nearly doubling the cooling capacity.
Low Fit Design
Made for ITX
The C1 along with it’s XT140 slim profile high performance fan is the ultimate combo for achieving both low height and high performance, made for ITX systems.
5 Step Easy Installs
Ready Within Minutes
Featuring CRYORIG’s patented MultiSeg™ quick mount system and AMD quick mount kit, installations are fast easy and ready to go within minutes.
The Enthusiast ITX Solution
Fit & Installation Made Easy
The C1 is designed from the base up to be easy to install, while bringing powerful performance to cool your high-end CPU’s in tight situations.
|Dimension ( with fan )||L144.5 mm x W140 mm x H74 mm|
|Weight ( with fan )||628 g|
|Weight ( without fan )||539 g|
|Heat pipes||6mm heatpipe x 6 units|
|Top Fin||T = 0.4 mm ; Gap = 1.8 mm|
|Top Fin Pcs||56 pcs|
|Bottom Fin||T = 0.4 mm ; Gap = 1.4 mm|
|Bottom Fin Pcs||35 pcs|
|Copper Base||C1100 Pure copper nickel plated|
|RAM Height Limit||42|
|Dimension||L140 mm x W140 mm x H13 mm|
|Rated Speed||700 ~ 1300 RPM ±10 %|
|Noise Level||20 ~ 24 dBA|
|Air Flow||65 CFM|
|Air Pressure||1.49 mmH2O|
