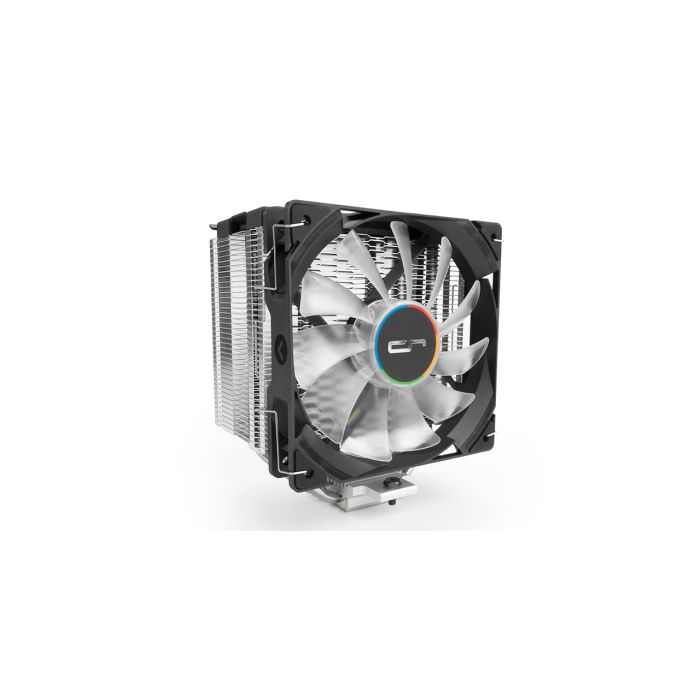

CRYORIG H7 Quad Lumi RGB 120MM Single Tower Heatsink
CRYORIG H7 QUAD LUMI
The High-End Software Controlled
RGB Lighting Heatsink
Powered By CAM
Enhanced Efficiency with Hive Fin Technology
Featuring CRYORIG’s proprietary Hive Fin™ technology, the H7 Quad Lumi gains the benefit of faster hot air exhaust speeds and air turbulence reduction, so air passes through further and is expelled faster!
Optimized Heatpipes Placement Improves Heat Transfer
CRYORIG’s proprietary Convex-Align™ System is again featured in the H7 Quad Lumi, allowing for more heatpipes concentrated towards the hot spots on the CPU surface. This grants better heat transfer from the CPU Die to all heatpipes.
The H7 Quad Lumi features the most advanced lighting system on any cooling product to date. The dual channel RGB system that allows for individual lighting effects and colors for the top logo and bottom under glow. Reactive effects can respond to system conditions such as temperature, audio and more.
SPECTRUM WAVE FIXED BREATHING MARQUEE
Integrated RGB LED Control System Powered by CAM.
Inside each H7 Quad Lumi, houses a NZXT CAM controller module. With the additional controller the H7 Quad Lumi is capable of full software control. Color change, lighting effects and even Fan RPM and profile settings are all capable through CAM software and app.
Small yet Powerful
The CRYORIG H7 Quad Lumi much like the H7 is designed with compatibility in mind. Maintaining the original 145mm height the H7 Quad Lumi is made to fit almost all cases on the market. At the same time it’s 160watt TDP thermal design makes it one of the best performance options for it’s miniature size.
Zero RAM Interference
Unlimited RAM Compatibility
The H7 Quad Lumi features CRYORIG’s Zero Interference design, that keeps the full heatsink+fan compactly inside the CPU Keep Out Zone and away from the RAM slots. This means that users can choose whatever RAM they like and know for certain that it will work with the H7 Quad Lumi.
High Performance LED Fan
with Quad Air Inlet™ Tech
The H7 Quad Lumi includes the new QF120 LED. Based on the original QF120 series the QF120 LED features white LED lighting as well as all of the existing features from the QF series including: Quad Air Inlet™ for added air intake, ultra wide PWM RPM range, integrated Acoustic Absorbers and HPLN™ bearing. It delivers a great balance of performance versus acoustics, while adding LED lighting
H7 QUAD LUMI
Evolved and Improved
The H7 Quad Lumi is based on the award winning best seller H7. Besides adding the CAM powered RGB system, with the H7 Quad Lumi CRYORIG has added one additional high performance heatpipe as well as increased support enthusiast grade Intel™ LGA 2011v3. The H7 Quad Lumi is not only RGB capable but all around a more powerful Quad Heatpipe H7!
|Dimension ( with fan )||L98 mm x W123 mm x H145 mm|
|Weight ( with fan )||713 g|
|Weight ( without fan )||585 g|
|Heat pipes||6mm heatpipe x 4 units|
|Fin||T = 0.4 mm ; Gap = 2.2 mm|
|Fin Pcs||40 pcs|
|Copper Base||C1100 Pure copper nickel plated|
|RAM Height Limit||Limitless|
|QF120 LED SPECIFICATION|
|Dimension||L120 mm x W120 mm x H25.4 mm|
|Rated Speed||330 ~ 1600 RPM ±10 %|
|Noise Level||10 ~ 25 dBA|
|Air Flow||49 CFM|
|Air Pressure||1.65 mmH2O|
