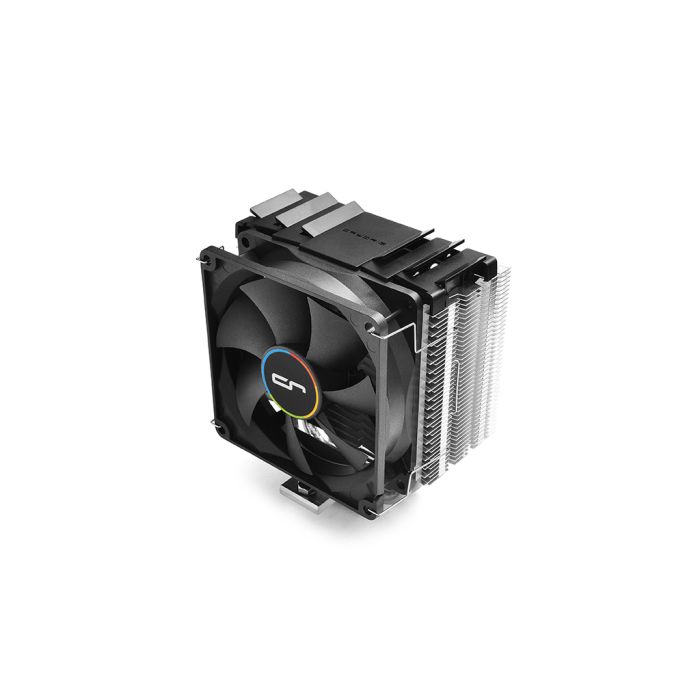

CRYORIG M9I Single Tower Heatsink
Small, Light, Affordable
The Tiny Enthusiast Grade
CRYORIG Tower Cooler
Increased Air Exhaust Speed
Higher Cooling Efficiency
The CRYORIG M9i/M9a features CRYORIG proprietary Jet Fin Acceleration System™. By creating a structure of alternated fin stacks, the M9i/M9a has a wider air intake area and higher fin density air exhaust area to squeeze out air, heated air exits the system faster.
True Copper Base Plate
Increased Cooling Efficiency
CRYORIG’s M9i/M9a while being an entry level product, comes with a True Copper Base Plate. Copper base plates can effectively spread heat to all heatpipes and allows for increased heat contact area. In comparison on a heatsink without a True Copper Base Plate, the heat source from the CPU die will not efficiently reach the outer heatpipes and the aluminum material holding heatpipes also provide lackluster contact and heat conduction with the heatpipes. Together with the highly heat conductive C1100 Pure Copper, further increasing heat conduction efficiency of the whole cooler.
CRYORIG’s Smallest Tower to Date
Minimal Height, Maximum Performance
With a total height of 124.6mm, the CRYORIG M9i/M9a is the smallest CRYORIG Tower cooler. Featuring the same materials and cooling technology found on all CRYORIG tower coolers, there are no compromises or downgrades to quality and performance. It’s the perfect entry product to PC Building, Enthusiast Grade Cooling, and Overclocking.
Focusing on providing the widest range of compatibility, the M9i/M9a’s small size moves the heatsink away from the RAM and inside the *CPU Keep Out Zone, offering optimal compatibility for RAM with tall heat spreaders on both Intel™ 115X and AMD platforms.
*The CPU Keep Out Zone is a design guideline set by both Intel™ and AMD. It is set around the CPU, and dictates no components over a certain height can be placed there.
Augmented Backplate System
Safe and Secure Support
The M9i/M9a like all CRYORIG tower heatsinks includes a backplate support system that evenly spreads out the heatsink mounting force through the whole surface of the backplate, and protecting your mainboard. Made from fiberglass augmented PBT material, it provides just the right amount of tensile strength for the best mounting force and support for your system.
|Dimension ( with fan )||L87 mm x W102 mm x H124.6 mm|
|Weight ( with fan )||425 g|
|Weight ( without fan )||345 g|
|Heat pipes||6mm heatpipe x 3 units|
|Fin||T = 0.4 mm ; Gap = 1.6 mm|
|Fin Pcs||40 pcs|
|Copper Base||C1100 Pure copper nickel plated|
|RAM Height Limit||Limitless|
|Dimension||L92 mm x W92 mm x H25.4 mm|
|Rated Speed||600 ~ 2200 RPM ±10 %|
|Noise Level||26.4 dBA|
|Air Flow||48.4 CFM|
|Air Pressure||3.1 mmH2O|
