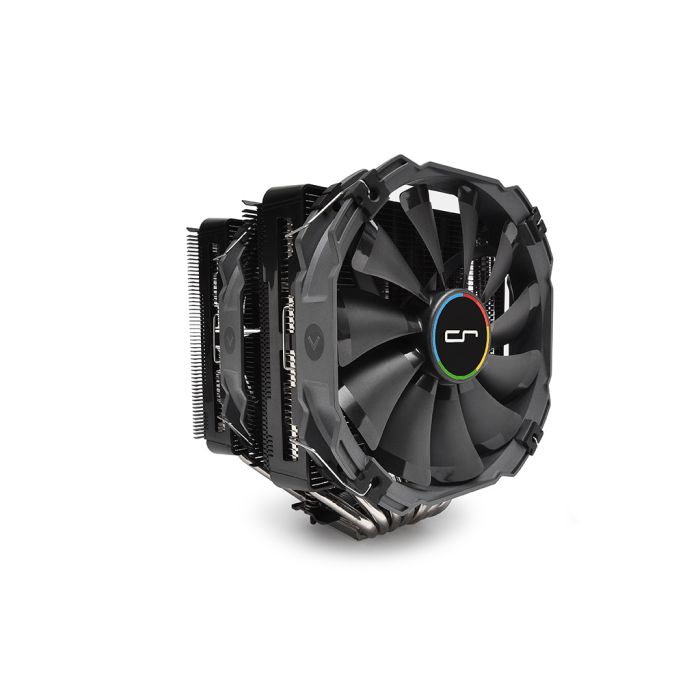

CRYORIG R1 Ultimate 140mm Dual Tower CPU Cooler

$89.99
CRYORIG R1 Ultimate 140mm Dual Tower CPU Cooler SKU: FN0630

$89.99

Ready to Ship!
Check Store Stock

Huntsville Store:

Las Vegas:

CRYORIG R1 ULTIMATE

Research in Performance
Perfection in Details
The Apex of Air Cooling Technology


Full Contact
Enhanced Performance


Patented DirectCompress™ Soldering, increases the actual contact surface between the heatpipe and heatsink fins. DirectCompress™ Soldering has up to 10% more contact surface compared to traditional soldering, and the more contact surface the faster the heat conduction.

Spreading Out
and Making Room


On aluminum sheets, heat spreads out in a radial direction. By displacing the heatpipe alignment on the heatsink fins, our Heatsink Displacement Optimization™ allows for better and more evenly spread heat conduction on the fins compared to traditional linear alignment.

Accelerated Air Exhaust
The Faster the Cooler


The individual tower stack is separated into two sections, the loose air intake and the high density exhaust section. By the laws of fluid dynamics, the increase in fin count in the exhaust section squeezes airflow and increases exhaust air speed. The increase of airflow speed in our Jet Fin Acceleration System™ allows heated air leave the tower faster.

Optimized
Heatpipe Positioning
Total CPU Coverage


The R1’s Heatpipe Convex-Align™ System allows for more heatpipes in a given area, optimized heatpipe placement in the copper base, and improved alignment with your CPU. With the Heatpipe Convex-Align™ System, each heatpipe functions to their maximum TDP capacity.

Optimized
Heatpipe Positioning
Total CPU Coverage


The R1’s Heatpipe Convex-Align™ System allows for more heatpipes in a given area, optimized heatpipe placement in the copper base, and improved alignment with your CPU. With the Heatpipe Convex-Align™ System, each heatpipe functions to their maximum TDP capacity.

Kill the Noise
Silence is Cold


Acoustics are just as important as performance. That’s why the XF140 140mm fan integrates acoustic optimizations. The XF140 features our High Precision Low Noise (HPLN™) Bearing and the detachable Acoustic Vibration Absorbers that give the fan a snugger fit while canceling vibration and noise at the same time.

Patent Pending
"MultiSeg™"
Quick Mount System


Patent Pending "Multiseg™" Quick Mount System providing an all in one solution on Intel platforms, CRYORIG’s MultiSeg™ Quick Mount System allows for a securer and firmer installation within minutes.

Customization Capable
With CUSTOMOD Covers


The fan covers for R1 is fully modular and replaceable with CRYORIG’s CUSTOMOD Covers. Available in all the major mainboard color schemes, choose your color based on your system’s general color scheme, or match together all your favorite colors. It’s your PC, why not make it personal! (CUSTOMOD Covers for R1 sold separately.)

HEATSINK SPECIFICATION
Dimension ( with fan ) L142.4 mm x W140 mm x H168.3 mm
Weight ( with fan ) 1282 g
Weight ( without fan ) 970 g
Heat pipes 6mm heatpipe x 7 units
Front Fin T = 0.4 mm ; Gap = 2.4 mm
Front Fin Pcs 42 pcs
Rear Fin T = 0.4 mm ; Gap = 1.8 mm
Rear Fin Pcs 53 pcs
Copper Base C1100 Pure copper nickel plated
Distance From Center 40 mm
RAM Height Limit 30 ~ 35 mm ( Fan position adjustable )
TDP 250 W+
XF140 SPECIFICATION
Dimension L140 mm x W140 mm x H25.4 mm
Weight 156 g
Rated Speed 700 ~ 1300 RPM ±10 %
Noise Level 19 ~ 23 dBA
Air Flow 76 CFM
Air Pressure 1.44 mmH2O
Ampere 0.16 A
