Diamond Antenna MGC50

$48.95
Diamond Antenna MGC50 SKU: ZDM-MGC50

$48.95

Ready to Ship!
Check Store Stock

Huntsville Store:

Las Vegas:

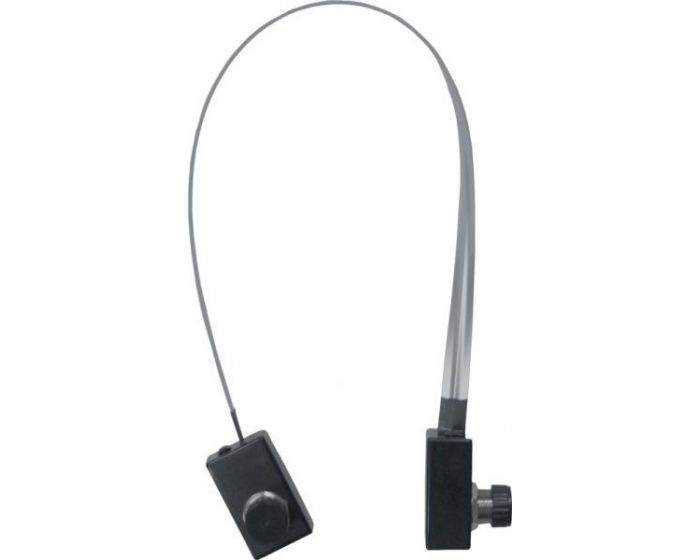

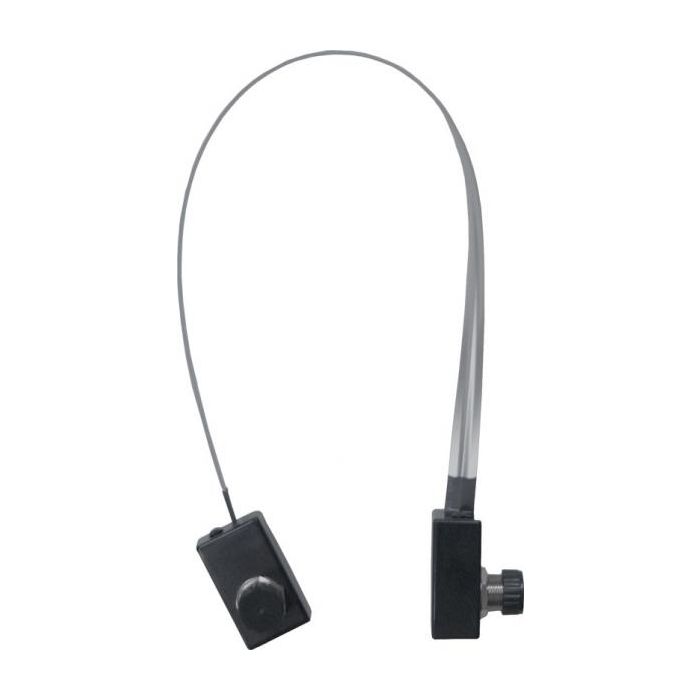

Diamond MGC50 Through Window/Door Cable Set

Specifications:

  • Frequency: DC to 1500MHz
  • Max Power Rating: HF to 50Mhz: 100w (SSB), 50w (FM/CW), 144MHz: 40w (FM), 440MHz: 30w (FM), 1200 MHz: 10w (FM)
  • Length: 19.7" (between connectors)
  • Weight: 102g
  • Connector: UHF Female to UHF Female
  • VSWR: HF up to 500Mhz: Less than 1.2; 500 to 1000Mhz: Less than 1.3; Up to 1000Mhz: Less than 2.0; 1200MHz: Less than 1.7.
  • Impedance: 50 Ohms
  • Insertion Loss: 144MHz: Less than 0.3dB; 440MHz: Less than 0.6dB; 1200MHz: Less than 1.6dB
