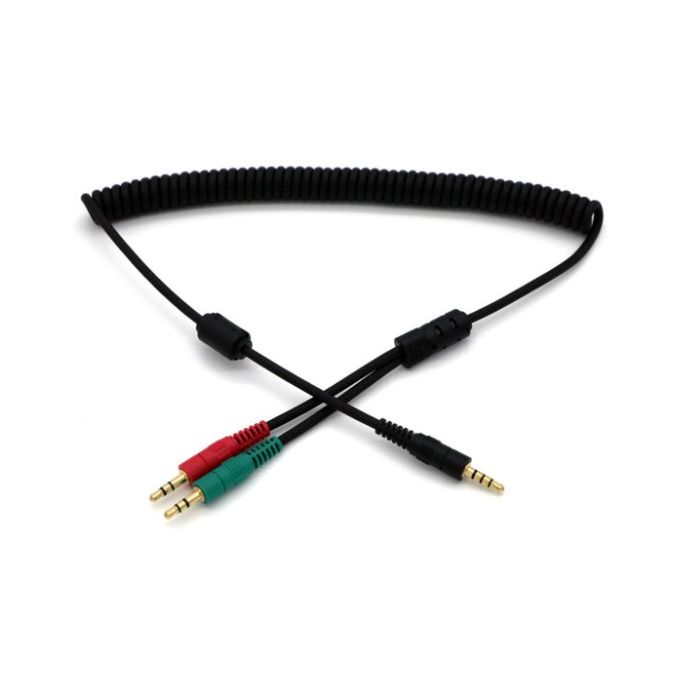

Digirig Interface Cable for uSDX

• Cable works with uSDX, (tr)uSDX transceivers using separate 3.5mm TRS connectors for mic+PTT and headphones
• Connect straight black jack into Digirig’s audio socket, red jack into radio’s mic socket and green jack into the headphones socket
• Data cable allows digital modes and packet radio protocols as FT8, FT4, SSTV, APRS, Echolink, Allstar etc
• Great for working satellites (e.g. APRS and SSTV)
• Data cable combines audio and PTT control, plugs into Digirig’s audio socket
• Coiled cable keeps things nice and tidy by preventing knots and kinks
• Coiled part is about 24″ relaxed, 72″ fully stretched
• Shielded and RF choked with ferrite beads on both ends to prevent RFI
• Premium quality materials and craftsmanship

The audio cable requires Digirig Mobile Revision 1.6 or later (any configuration).

Note: Digirig mobile is available in four different configurations. Configuration only matters if your transceiver is capable of serial CAT control or if you plan to use Digirig for programming the radio (firmware or settings), and is not strictly required for digital operations. You can still share a Digirig in incompatible configuration with a CAT capable transceiver if you don’t connect the serial cable.
