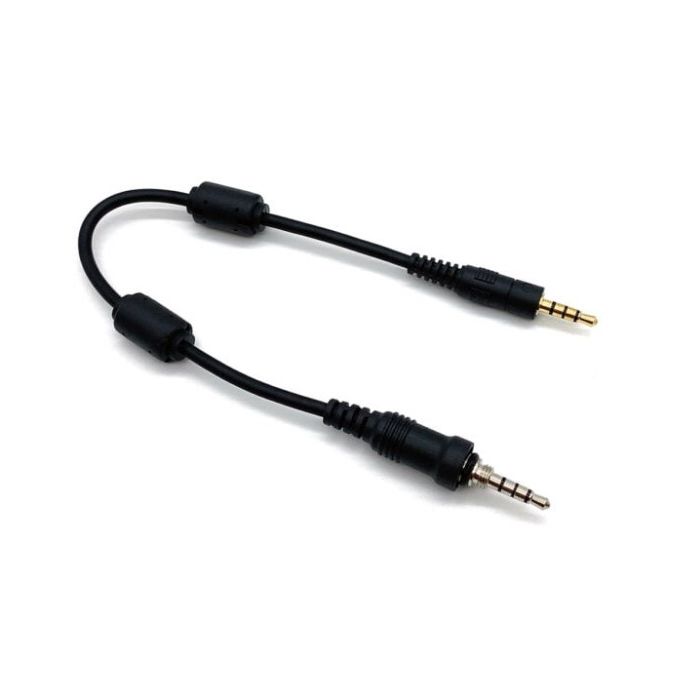

- Cable works with Yaesu handy talkies (HT) models using threaded waterproof 3.5mm TRRS connector
- Data cable allows digital modes and packet radio protocols as FT8, FT4, SSTV, APRS, Winlink, VaraFM, Echolink, Allstar etc
- Great for working satellites (e.g. APRS and SSTV)
- Data cable combines audio and PTT control, plugs into Digirig’s audio socket
- Minimal length for compact arrangement: about 11″ tip-to-tip
- Shielded and RF choked with ferrite beads on both ends to prevent RFI
- Premium quality materials and craftsmanship
The audio cable requires Digirig Mobile Revision 1.6 or later (any configuration).
Â
HTs that can be interfaced with the data cable
-
Yaesu VX-6,Yaesu VX-6E,Yaesu VX-6R,Yaesu VX-7,Yaesu VX-7E,Yaesu VX-7R,Yaesu VX-120,Yaesu VX-127,Yaesu VX-170,Yaesu VX-246,Yaesu VX-177,Yaesu FT-270,Yaesu FT-270E,Yaesu FT-270R,Yaesu VX-700,Yaesu VX-710
The audio cable requires Digirig Mobile Revision 1.6 or later (any configuration).
Note: Digirig mobile is available in four different configurations. Configuration only matters if your transceiver is capable of serial CAT control or if you plan to use Digirig for programming the radio (firmware or settings), and is not strictly required for digital operations. You can still share a Digirig in incompatible configuration with a CAT capable transceiver if you don’t connect the serial cable.
