Description

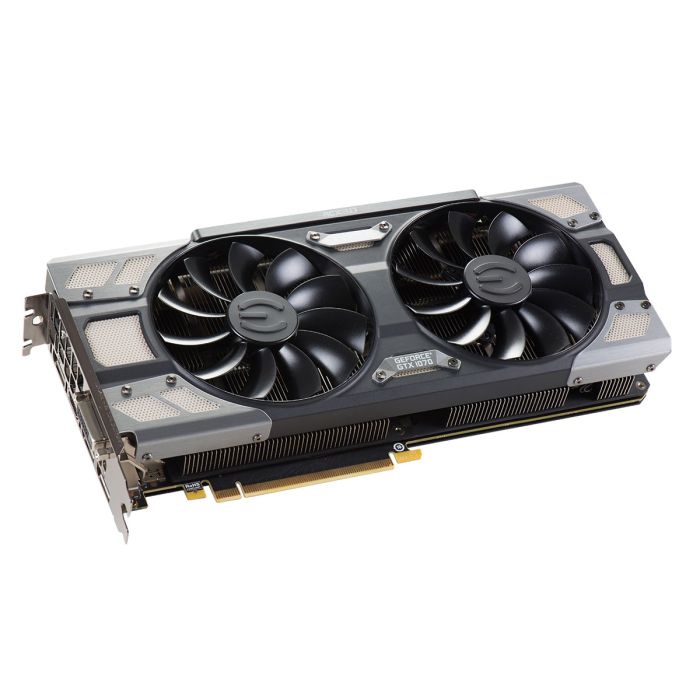

The EVGA GeForce GTX 1070 featuring EVGA ACX 3.0 cooling has arrived. This new graphics card features NVIDIA's new "Pascal" graphics processor which is the most advanced gaming GPU ever created. This breakthrough GPU delivers industry-leading performance, innovative new gaming technologies, and immersive, next-gen VR.
These cards also feature EVGA ACX 3.0 cooling technology. EVGA ACX 3.0 once again brings new and exciting features to the award winning EVGA ACX cooling technology. SHP 2.0 gives increased heatpipes and copper contact area for cooler operation, and optimized fan curve for even quieter gaming. Of course, ACX 3.0 coolers also feature optimized swept fan blades, double ball bearings and an extreme low power motor, delivering more air flow with less power, unlocking additional power for the GPU. Select EVGA ACX 3.0 models will even feature a 10CM fan and RGB LED, allowing complete control over the color from EVGA PrecisionX OC.
Features
PCI Express 3.0 Support
Designed for the new PCI Express 3.0 bus architecture offering the highest data transfer speeds for the most bandwidth-hungry games and 3D applications, while maintaining backwards compatibility with existing PCI Express motherboards for the broadest support.
EVGA Double BIOS
A secondary BIOS allows you to experiment with custom BIOSes without risk of breaking the card, and allows easy BIOS recovery with just the flip of a switch. Also, on select cards the secondary BIOS may unlock additional overclocking potential and/or improved fanspeed control!
NVIDIA GameStream Technology
Stream extreme GeForce GTX PC gaming experiences to portable device like NVIDIA SHIELD with super-smooth, low-latency performance.
NVIDIA G-SYNC Ready
NVIDIA G-SYNC monitors feature revolutionary NVIDIA technology that eliminates screen tearing while also reducing input lag. The result is the smoothest, fastest, and most responsive gaming experience ever seen.
OpenGL 4.5 Support
Supporting the latest standards in the OpenGL API.
Simultaneous Multi-Projection
Simulates seperate viewports of the same scene giving improved performance in VR and improved display accuracy in NVIDIA Surround
VR Ready
Discover next-generation VR performance, the lowest latency, and plug-and-play compatibility with leading headsets-driven by NVIDIA VRWorks technologies.
NVIDIA Ansel
Revolutionary new 360-degree image capture.
NVIDIA SLI w/ HB Bridge Support
NVIDIA's new SLI HB bridge doubles the available transfer bandwidth compared to the NVIDIA Maxwell architecture.
NVIDIA GPU Boost 3.0
Dynamically maximizes clock speeds based on workload and allows enthusiast-class controls such as temperature target and fan controls, extra over-voltage headroom, and optimizations for water-cooling solutions. This allows gamers to push performance to new levels.
Microsoft DirectX 12
Support for the latest Microsoft DirectX API to enable next-generation gaming.
Vulkan API
A next generation graphics and compute API from Khronos Group that provides high-efficiency, cross-platform access to modern GPUs.
Max Digital Resolution - 7680x4320
DisplayPort 1.4 Ready supporting up to 7680x4320 resolution at 60Hz
HDMI 2.0b, DisplayPort 1.4 and Dual-Link DVI
The latest standards in DisplayPort and HDMI interfaces.
EVGA ACX 3.0 Cooling
EVGA ACX 3.0 once again brings new and exciting features to the award winning EVGA ACX cooling technology. SHP 2.0 gives increased heatpipes and copper contact area for cooler operation, and optimized fan curve for even quieter gaming. Of course, ACX 3.0 coolers also feature optimized swept fan blades, double ball bearings and an extreme low power motor, delivering more air flow with less power, unlocking additional power for the GPU.
10 Phase Power Design
Robust power design for extreme overclocking.
Adjustable RGB LED
An adjustable RGB LED that can be controlled in EVGA PrecisionX OC
Specifications
Performance
NVIDIA GTX 1070
1920 Pixel Pipelines
1506 MHz Base Clock
1683 MHz Boost Clock
Memory
8192 MB, 256 bit GDDR5
8008 MHz (effective)
256 GB/s Memory Bandwidth
Cooling
ACX 3.0
Interface
PCI-E 3.0 16x
DVI-D, DisplayPort, DisplayPort, DisplayPort, HDMI
Resolution & Refresh
Max Monitors Supported: 4
240Hz Max Refresh Rate
Max Digital : 7680x4320
Dimensions
Height: 5.064in - 128.626mm
Length: 10.5in - 266.7mm
Width: Dual Slot
Operating System Support
Windows 10 32/64bit
Windows 8 32/64bit
Windows 7 32/64bit
Requirements
Minimum of a 500 Watt power supply.
Two available 8-pin or 6+2pin PCI-E power dongles
Total Power Draw : 215 Watts
Product Warranty
This product comes with a 3 year warranty. Registration is recommended.
