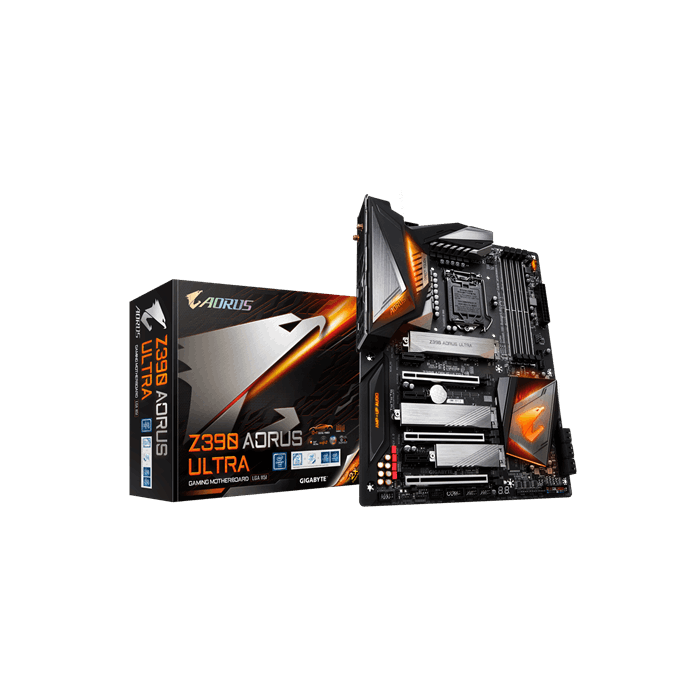

GIGABYTE Z390 AORUS ULTRA ATX Motherboard

$249.99
GIGABYTE Z390 AORUS ULTRA ATX Motherboard SKU: MB1264

$249.99

Free Shipping!

Ready to Ship!
Check Store Stock

Huntsville Store:

Las Vegas:

GIGABYTE Z390 AORUS ULTRA Intel Z390 AORUS Motherboard with 12+1 Phases Digital VRM, Direct Touch Heatpipe, RGB Fusion, 802.11ac Wi-Fi, Triple M.2 with Thermal Guards, Intel® GbE LAN with cFosSpeed, Front & Rear USB 3.1 Gen 2 Type-C

  • Supports 9th and 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel® Optane™ Memory Ready
  • 12+1 Phases Digital VRM Solution with DrMOS
  • Advanced Thermal Design with Direct Touch Heatpipe
  • Onboard Intel® CNVi 802.11ac 2x2 Wave 2 Wi-Fi
  • ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
  • Intel® Gigabit LAN with cFosSpeed
  • RGB FUSION with Multi-Zone LED Light Show Design, Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Front USB 3.1 Gen 2 Type-C™ Header
  • Triple Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Triple Thermal Guards
  • USB DAC-UP 2 with Adjustable Voltage
  • CEC 2019 Ready, Save Power With a Simple Click
  • Multi-Way Graphics Support with Dual Armor and Ultra Durable™ Design
  • Supports 9th and 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel® Optane™ Memory Ready
  • 12+1 Phases Digital VRM Solution with DrMOS
  • Advanced Thermal Design with Direct Touch Heatpipe
  • Onboard Intel® CNVi 802.11ac 2x2 Wave 2 Wi-Fi
  • ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
  • Intel® Gigabit LAN with cFosSpeed
  • RGB FUSION with Multi-Zone LED Light Show Design, Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Front USB 3.1 Gen 2 Type-C™ Header
  • Triple Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Triple Thermal Guards
  • USB DAC-UP 2 with Adjustable Voltage
  • CEC 2019 Ready, Save Power With a Simple Click
  • Multi-Way Graphics Support with Dual Armor and Ultra Durable™ Design
  • Mfr Part Number: Z390 AORUS ULTRA
  • CPU: LGA1151
    • Supports 9th and 8th Generation Intel Core i9/ i7/ i5/ i3, Pentium and Celeron processors
    • L3 cache varies with CPU
  • Chipset: Intel Z390 Express
  • Memory: 4x DDR4-4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3666(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB
  • Slots: 3x PCI-Express 3.0 x16 Slots(one runs at x8, one runs at x4), 3x PCI-Express 3.0 x1 Slots
  • Multi-Graphics: Supports AMD Quad-GPU, 3-Way/ 2-Way CrossFireX and NVIDIA Quad-GPU, 2-Way SLI Technology
  • Storage:
    • SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
    • M.2: 3x M.2 Ports (w/ M Key), one supports type 2242/2260/2280/22110 SATA and PCIe x4/ x2 SSD (M2M); one supports type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD (M2A); one supports type 2242/2260/2280 PCIe x4/x2 SSD (M2P)
  • Audio: Realtek ALC1220-VB 7.1-Channel High Definition Audio CODEC, Support for S/PDIF Out
  • LAN: Intel Gigabit Ethernet Controller, Intel CNVi interface 802.11a/b/g/n/ac Wireless LAN (2.4/5 GHz Dual-Band), Bluetooth 5.0
  • Ports: Ports: 2x USB Type-C Ports (1 rear, 1 via header, with USB 3.1 Gen 2 support), 3x USB 3.1 Gen 2 Port (Type-A rear), 4x USB 3.1 Gen 1 Ports (2 rear, 2 via header), 8x USB 2.0/1.1 Ports (4 rear, 4via headers), 1x HDMI Port, 2x SMA antenna connectors (2T2R), 1x optical S/PDIF Out connector, 1x RJ45 LAN Port, Audio I/O Jacks
  • Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector, 1x 4-pin ATX 12V power connector
  • Form Factor: ATX, 30.5 x 24.4 cm
