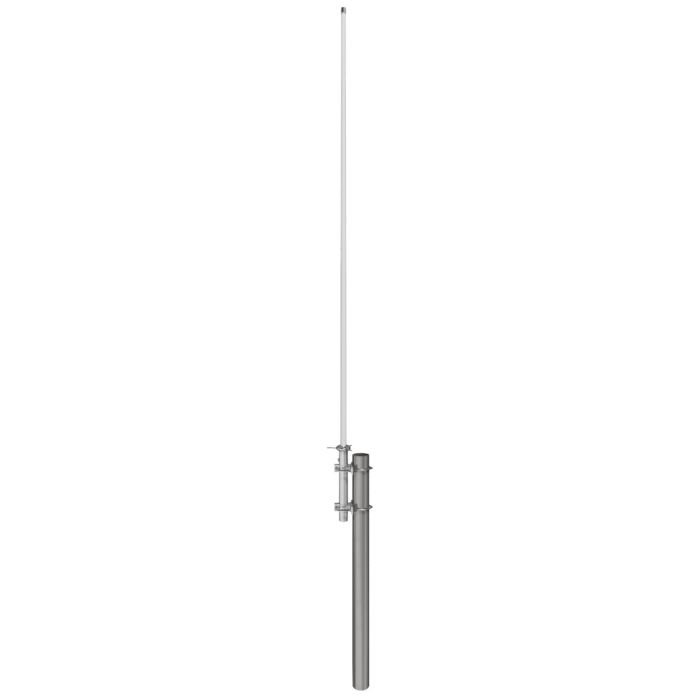

Comet Antenna Dual Band Collinear GP Antenna 2400MHz/5600MHz - GP-2456

Adopting an air-core coaxial, we have achieved low loss, wide bandwidth, and high gain, and finished it as a high-quality antenna made from purely domestic products.

Domestic thick glass fiber Japan withstands the maximum instantaneous wind speed of +134MPH (60m/sec) is adopted, realizing high strength and excellent weather resistance.

The 2400MHz band covers all the specifications of conventional products.

At 5600MHz, which supports business radio and amateur radio with a wide bandwidth, and has strong straightness, the directivity in the vertical plane is tilted in the vertical direction to the upper and lower sides, enabling stable transmission and reception regardless of the antenna installation location, and is demonstrated for repeaters and assist communications.

By dual-banding, two waves can be transmitted and received simultaneously, and it is possible to handle 2MHz for drone control and 2400MHz for video reception, with one

antenna. In addition, the 5600MHz tilts the vertical in-plane directionality toward the top surface, making it easier to receive video signals from drones.

Uses a hybrid hexagonal bolt with a loosening prevention function.

Various low-loss mounting cables are also available.

Specifications
