Highly Efficient Hive Fin™
The Ultra Compatible
Single Tower Cooler
Breaking Design Molds
Efficiency by Innovation
CRYORIG H Series coolers feature our proprietary Hive Fin™ structure. This design allows for a combination of Jet Fin Acceleration™ and Turbulence Reduction, as well as strengthening structural strength of the fin stacks. Combined together, the Hive Fin™ design brings cool innovation.
Air Exhaust Acceleration
Hot Air Cooled Fast
By utilizing a larger air intake and narrower air exhaust section on the fins, compresses the air to move faster while exiting the heatsink. Jet Fin Acceleration System™ carries the hot air out of the system faster and more efficiently.
Turbulence Reduction System
Utilizing a bee hive shaped structure at the front air intake of the heatsink, lowers air turbulence and straightens out the airflow. Assisting airflow to move directly through the full length of the heatsink and carrying out hot air.
Total CPU Coverage
The H7’s Heatpipe Convex-Align™ System allows for more heatpipes in a given area, optimized heatpipe placement in the copper base, and improved alignment with your CPU. With the Heatpipe Convex-Align™ System, each heatpipe functions to their maximum TDP capacity.
Quad Air Inlet™
CRYORIG’s proprietary Quad Air Inlet™ system features four strategically placed aerodynamic air inlet that allows for extra air intake. The additional air intake allows the QF series fan to have a higher air output volume for its fan diameter, which equals better temperatures for your CPU heatsink and more air exchanged for your system case.
Zero RAM Interference
Focusing on providing the widest range of
compatibility, the H7 utilizes an asymmetric slanted
heatpipe layout to move the heatsink away from the
RAM zone, Offering optimal compatibility for RAM
with tall heat spreaders on both Intel™ 115X and
Patent Pending X-Bar™
Quick Mount System
Fast, Easy and Secure
Our new patent pending X-Bar™ Quick Mount System follows CRYORIG’s renowned mounting system design, and provides a quick and secure solution on both Intel™ and AMD platforms. The X-Bar™ system’s dedicated backplate is made from fiber glass augmented PBT, for higher tensile strength, resistance to heat and is more easily recyclable than other plastics. The backplate protects the mainboard from excessive stress that may come from the mounted heatsink, and also provides a solid base for your fast and secure installation.

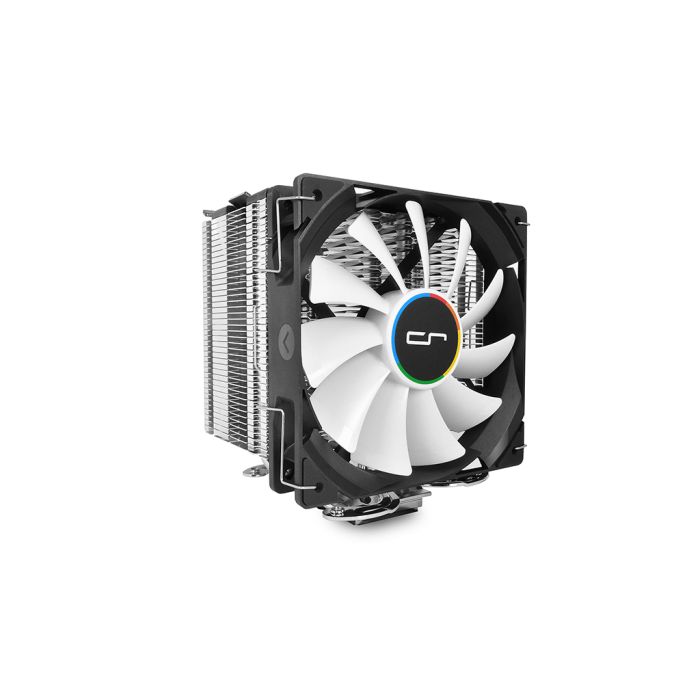

The Compact Tower That Fits
The CRYORIG H7 has compact compatibility written in it’s design. Only 145mm in height the H7 is one of the smallest 120mm fan class tower heatsinks on the market. The H7 will fit in almost all mid-tower PC chassis. The H7 can deliver much needed tower grade cooling performance in tight spaces.
|Dimension ( with fan )||L98 mm x W123 mm x H145 mm|
|Weight ( with fan )||711 g|
|Weight ( without fan )||577 g|
|Heat pipes||6mm heatpipe x 3 units|
|Fin||T = 0.4 mm ; Gap = 2.2 mm|
|Front Fin Pcs||40 pcs|
|Copper Base||C1100 Pure copper nickel plated|
|RAM Tolerance Height||Limitless|
|QF120 BALANCE SPECIFICATION|
|Dimension||L120 mm x W120 mm x H25.4 mm|
|Rated Speed||330 ~ 1600 RPM ±10 %|
|Noise Level||10 ~ 25 dBA|
|Air Flow||49 CFM|
|Air Pressure||1.65 mmH2O|
