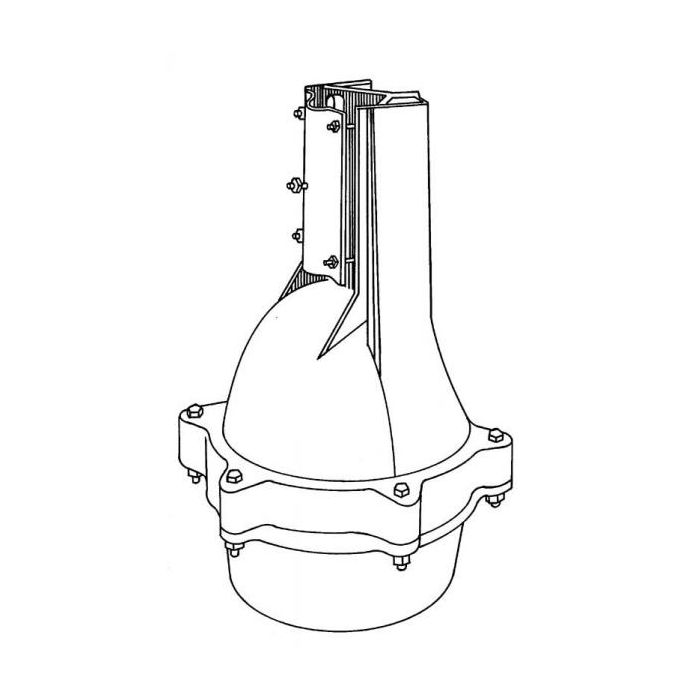

Hy-Gain T-2XD

Hy-Gain T-2XD SKU: ZHY-T-2XD


Free Shipping!

No Longer Available

Check Store Stock

Huntsville Store:

Las Vegas:

20 sq. ft. Wind Load TailTwister Rotator with DCU-1, 110V

The T-2XD Tailtwister Series II is designed for medium communications antenna arrays of up to 20 square feet wind load area. Low temperature grease, alloy ring gear indicator potentiometer, ferrite beads on potentiometer wires, new weatherproof AMP connectors plus 8-pin plug at control box, triple bearing race with 138 ball bearings for large load bearing strength, electric locking steel wedge brake, north or south center of rotation scale on meter, low voltage control, max mast of 2 1/16. It comes with a DCU-1 Digital Control Unit. Both operate at 110V.

T-2XD Rotator Specifications
Wind Load Capacity (inside tower) 20 square feet
Wind Load (w/ Mast Adapter) 10 square feet
Turning Power 1000 pounds
Brake Power 9000 pounds
Brake Construction Electric Wedge
Bearing Assembly Dual race/138 ball bearings
Mounting Hardware Clamp Plates/Steel U-Bolts
Control Cable Conductors 8
Shipping Weight 28 pounds
Effective Movement (in tower) 3400 ft/lbs.
