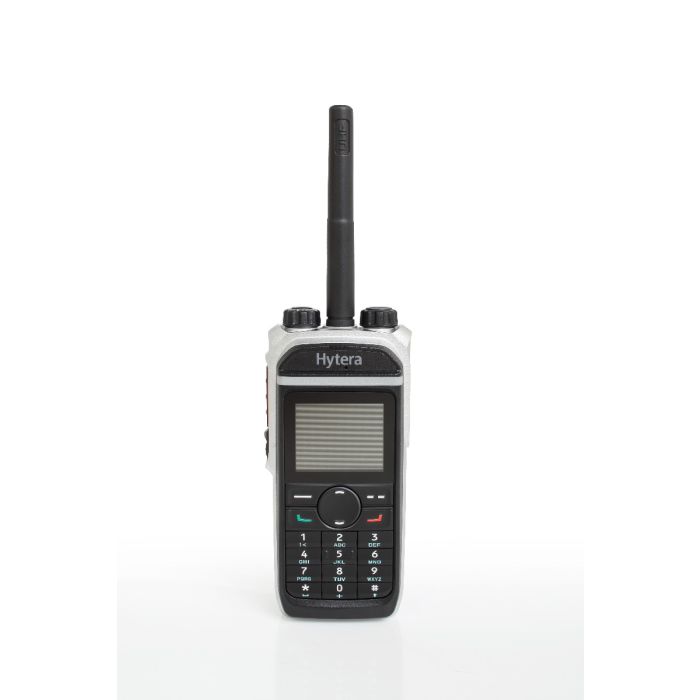

Hytera PA682G-U1
Huntsville:
Las Vegas:
Distribution Center:
Save $15 INSTANTLY when you purchase this radio and the Hytera PC45 USB Programming Cable together!
The PA6 Series is an open-standard DMR radio rich in features for both voice and data communication in a design approved to rigorous IP67 and MIL-STD 810 testing. It is the ideal solution for organizations looking for an affordable migration from analog to digital technology. The Hytera-patented pseudo-trunking maximizes channel usage. The PA6 Series G also comes with an optional GPS chip that allows the radio to integrate with Hytera Dispatch System or other 3rd party GPS dispatching software.
FAQ:
Q. What’s the difference between the amateur Hytera radios their land mobile counterparts?
A. The biggest difference is the amateur model is less expensive. During our initial market test, there is no difference between the two radios but future revisions are expected to include the removal of features such as encryption and man-down, restriction to amateur frequencies, and additional features and interface improvements based on feedback from the amateur community.
Q. Why don’t we show the price?
A. The manufacturer requires you to put the item in your cart before we can show you the price. We realize that this is an inconvenience and we regularly provide this feedback to manufacturers.
Q. Where can I download programming software?
A. Programming software can be downloaded at www.gigaparts.com/downloads
This radio can be enabled for wideband FM and front panel programmability if it is purchased by a licensed amateur operator. After you purchase the radio, send an email to sales@gigaparts.com requesting this feature and we will email a program to you that will allow the Hytera CPS software on your computer to enable those features for your serial number. This process is controlled by the radio’s model number and serial number and only works on Hytera radios sold by GigaParts. Please provide your amateur radio call sign in the email request.
Smaller, Sleeker, Lighter
The PA6 Series has a light weight PC & Metal frame design. The PA682G is 4.8 x 2.17 x 1.1 inches, weighing 10.93oz.
Rugged & Reliable
Complies with MIL-STD-810 C/D/E/F/G standards and passes HALT (Highly Accelerated Life Test).
Dual Mode: Analog & Digital
Dual mode (analog & digital) operation ensures a smooth analog to digital migration.
Advanced Signaling
Supports multiple advanced analog signaling modes, including HDC1200, 2-Tone and 5-Tone, providing better integration into existing analog radio fleets.
DMRA Data Service
The data protocol is fully compliant to DMRA standard.
Pseudo Trunk
This virtual trunking feature allocates a free timeslot for urgent communications. This effectively enhances frequency efficiency and allows you to communicate in a timely manner in emergency situations. See example below.Slot 1, Slot 2 are automatically assigned to voice call 1 or voice call 2
GPS Positioning (Factory Option)
The built-in GPS module in the PA6 series G supports GIS applications.
Further Development Port
The reserved side port allows users or any third party partner to further develop other helpful applications to extend radio functionalities.
One Touch Call/Text
Supports One Touch features that comprise of Preprogrammed Text Messages, Voice Calls and Supplementary Features.
Supplementary Features
PA6 Series can decode radio enable, radio disable, and remoter monitor as well as Priority Interrupt.
IP67 Protection
The Ingress Protection reaches IP67 (6: Totally protected against dust; 7: Protected against the effects of immersion up to 1m for 30 minutes). It’s the highest IP level for land-based wireless radio application.
DMO True 2-Slot / DMRA Direct Mode
In Directmode Hytera can provide 2-slot communication, which allows for 2 talk paths on 1 frequency.
|
Frequency range
|
UHF: 420 - 450 MHz
|
|
Channel capacity
|
1024
|
|
Zone capacity
|
64
|
|
Channel spacing
|
25/20/12.5 kHz (analog)
12.5 kHz (digital) |
|
Operating voltage
|
7.4 V
|
|
Battery
|
1500 mAh (Li-Ion)
|
|
Battery service life (5/5/90)
|
approx. 11 h (analog)
approx. 16 h (digital) |
|
Frequency stability
|
±0.5 ppm
|
|
Antenna impedance
|
50 Ω
|
|
Dimensions (H×W×D)
|
4.8 x 2.17 x 1.1 inches
|
|
Weight
|
10.23oz
|
|
Transmitter
|
|
|
RF Power Output
|
UHF: High 4W - Low 1W
|
|
FM Modulation
(Analog Emissions Designator) |
11K fF3E @ 4KfF3E @ 20KHz ;
16KfF3E @ 25KHz |
|
4FSK Digital Modulation
(Digital Emissions Designator) |
2.5KHz Data Only: 7K6fFXD
2.5KHz Data & Voice: 7KfFXW |
|
Conducted/Radiated Emission
|
-36 dBm < 1 GHz
-30 dBm > 1 GHz |
|
Modulation limiting
|
±2.5 kHz at 12.5 kHz
±4.0 kHz at 20 kHz ±5.0 kHz at 25 kHz |
|
FM Hum & Noise
|
40 dB at 12.5 kHz
43 dB at 20 kHz 45 dB at 25 kHz |
|
Adjacent Channel Power
|
60 dB at 12.5 kHz
70 dB at 20/25 kHz |
|
Audio Response
|
+1 dB to -3 dB
|
|
Audio Distortion
|
≤ 3%
|
|
Digital vocoder type
|
AMBE++ or SELP
|
| Digital Protocol | ETSI-TS102 361-1, 2&3 |
|
Receiver
|
|
|
Sensitivity (analogue)
|
0.22 μV (12 dB SINAD)
0.22 μV (typical) (12 dB SINAD) 0.4 μV (20 dB SINAD) |
|
Sensitivity (digital)
|
0.22 μV / BER 5%
|
|
Adjacent channel selectivity
TIA-603 ETSI |
60 dB at 12.5 kHz / 70 dB at 20 and 25 kHz 60 dB at 12.5 kHz / 70 dB at 20 and 25 kHz |
|
Intermodulation
TIA-603 ETSI |
70 dB at 12.5/20/25 kHz 70 dB at 12.5/20/25 kHz |
|
Spurious response rejection
TIA-603 ETSI |
70 dB at 12,5/20/25 kHz 70 dB at 12.5/20/25 kHz |
|
Spurious response rejection
|
40 dB at 12.5 kHz
43 dB at 20 kHz 45 dB at 25 kHz |
|
Nominal audio power output
|
0.5 W
|
|
Nominal audio distortion
|
≤ 3 %
|
|
Audio sensitivity
|
+1 dB to -3 dB
|
|
Conducted spurious emission
|
< -57 dBm
|
|
Ambient Specs
|
|
|
Operating temperature range
|
-30 °C to +60 °C
|
|
Storage temperature range
|
-40 °C to +85 °C
|
|
ESD
|
IEC 61000-4-2 (level 4)
±8 kV (contact discharge) ±15 kV (air discharge) |
|
Protection against dust and moisture
|
IP67
|
|
Shock and vibration resistance
|
MIL-STD-810 C/D/E/F/G
|
|
Relative humidity
|
MIL-STD-810 C/D/E/F/G
|
|
GPS (nur PD605G)
|
|
|
TTFF (cold start)
|
< 1 minute
|
|
TTFF (warm start)
|
< 10 seconds
|
|
Horizontal Accuracy
|
< 10 meter
|
Hytera PA682G-U1 DMR Radio
1500 mAh Li-Ion Battery
MCU Rapid-Rate Charger
Power Adapter
Antenna
Belt Clip
