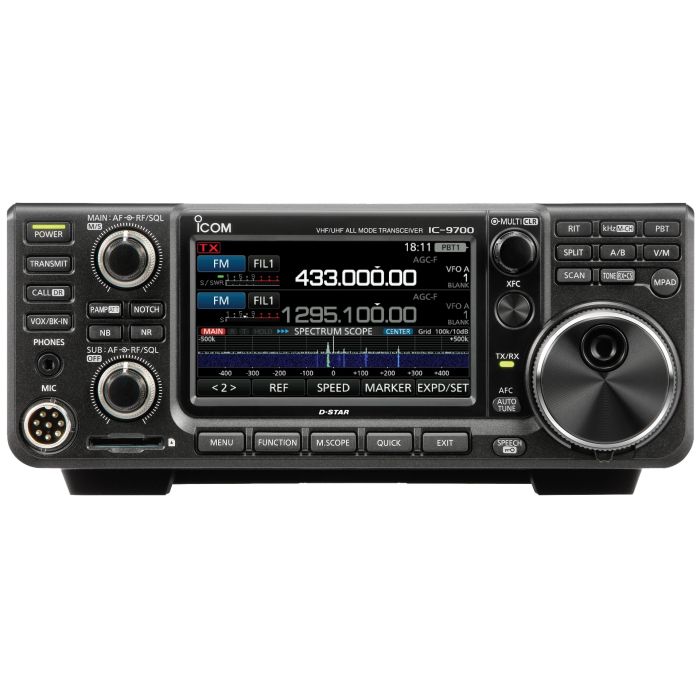

Icom IC-9700 VHF/UHF/1.2GHz D-STAR Transceiver Reservation
Download the Icom IC-9700 Pre-Release Brochure BELOW
Built with the VHF/UHF weak signal operator in mind, the IC-9700 is an RF direct sampling receiver for 2m and 70cm. The IF receiver consists of a single, down conversion for 23cm that is between 311 – 371MHz. This design provides a quiet receiver due to Icom’s DSP technology. The robust PA provides 100W on 2m, 75W on 70cm, and 10W on 23cm.
Band Management
In addition to band specific memory channels, the IC-9700 allows band specific receiver and transmitter settings. For transmit, users can make adjustments to RF power, TX power Limit, Limit Power, and TX Delay by band. Basic receiver settings, like the Noise Blanker, Noise Reduction, and others can be tweaked by band with a dynamic Notch and Filter setup by band/mode.
Direct Sampling Now Enters the VHF/UHF Arena
- All mode, tri-band transceiver covering the 144, 430/440 as well as 1200 MHz
- Real-time, high-speed spectrum scope for the 144, 430/440, 1200 MHz bands
- New PA provides a powerful 100W (144 Mhz), 75W (430/440 MHz) and 10W (1200 MHz) output
- Dualwatch operation and full-duplex operation in the satellite mode
- Follows Icom's center display design style with a 4.3 inch touch screen color TFT LCD
- D-STAR provides digital clear audio and Internet capable communication
- Smooth satellite operation with normal/reverse tracking and 99 satellite channels
- Digital Data (DD) mode provides 128 kbps data communication
General
Frequency Coverage: 144.000-148.000, 430.000-450.000, 1240.000-1300.000 MHz
Modes: SSB, CW, RTTY, AM, FM, DV, DD
Number of channels: 107 (99 Simplex + 6 Program scan edges + 2 CALL) x 3 bands, 99 (Satellite), 2000 (DR function)
Antenna Connectors: 144 MHz SO-239 (50 ohm), 430/440, 1200 MHz Type-N (50 ohm)
Power Supply Requirement: 13.8V DC (Negative Ground)
Power Consumption: TX Less than 18A (High Power), RX 1.2A typical (standby), Less than 1.8A (Maximum audio)
Frequency Resolution: 1 Hz
Dimensions: 9.4 x 3.7 x 9.4 inches (W x H x D, projections not included)
Weight: 10.4 lbs (approximate)
Transmitter Output Power
<SSB/CW/FM/RTTY/DV/DD>
144 MHz: 0.5-100W
430/440 MHz: 0.5-75W
1200 MHz: 0.1-10W
<AM>
144 MHz: 0.125-25W
430/440 MHz: 0.125-18.75W
1200 MHz: 0.025-2.5W
Modulation System:
SSB Digital PSN modulation
FM Digital Reactance modulation
AM Digital Low Power modulation
DV Digital GMSK Reactance modulation
DD Digital Quadrature modulation
Receiver System
144,430/440 MHz RF Direct Sampling
1200 MHz Down Conversion IF Sampling
Intermediate frequency: 311-371 Mhz (1200 Mhz)
Audio output power: More than 2.0W (1 kHz, 10% distortion) into an 8 ohm load
Icom IC-9700
HM-219 hand microphone
DC Power Cable
