LDG Electronics Z-817H

$135.00
LDG Electronics Z-817H SKU: ZLD-Z-817H

$135.00

Discontinued. No Longer Available

Check Store Stock

Huntsville Store:

Las Vegas:

This item has been discontinued.

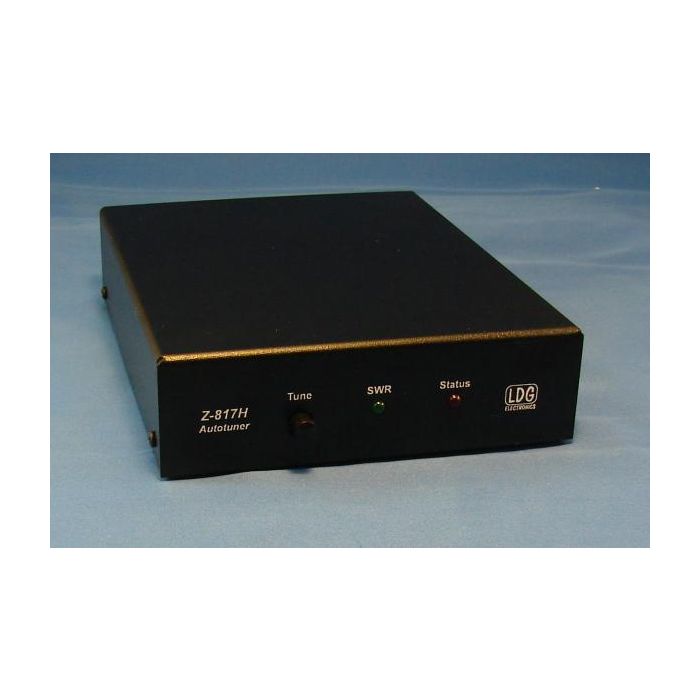

The LDG Z-817H is an automatic antenna tuner designed specifically for owners of the Yaesu FT-817 who also use a power amplifier like the Tokyo Hi Power. This tuner will also work with other amplifiers and other QRP rigs.

The Z-817H interfaces to the CAT port (ACC) on the back of the FT-817 radio with the provided cable. Tuning could not be simpler; one button push on the tuner is all that is needed and the Z-817H takes care of the rest. It will switch to PKT mode, transmit a carrier, tune the tuner, then restore the radio to the previous mode! The CAT thru port on the back allows connection to the THP HL-45B for automatic band selection on the amp.

Of course, the Z-817H will also function as a general purpose antenna tuner with other QRP radios or QRP radios with up to 75 watt HF amps. Just transmit a carrier (with the amp in bypass) and press the tune button on the tuner. Once tuned, turn on the amp and enjoy more power. The Z-817H is powered by four AA internal Alkaline batteries (not included), so there are no additional cables required to use the Z-817H. 2000 memories cover 160 through 6 meters.Latching relays are used so that power consumption is Zero when not tuning allowing a set of batteries to last about one year.



Specifications:
  • RF Power 0.1 to 75 watts SSB, CW and digital modes.
  •
<
