Messi and Paoloni StealthFlex 7, PL-259, 100ft Green Coax Cable with Carry Case and Reel

Name: Messi and Paoloni StealthFlex 7, PL-259, 100ft Green Coax Cable with Carry Case and Reel
Brand: Messi and Paoloni
SKU: ZMP-SF7-100U
Price: 269.95 USD
Availability: InStock

SKU: ZMP-SF7-100U

Availability:

In stock

$269.95

VIP Price

After Mail-In Rebate

SAVE $30.00

Regular Price: $299.95

Free Shipping

Must Have Accessories

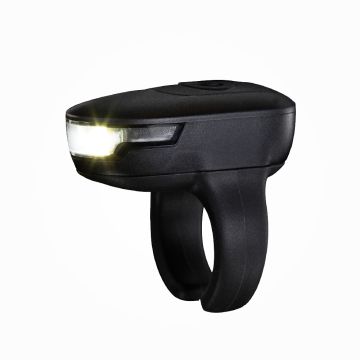

DEX FingerLight with USB-C Charging Cable - DEX-FL-1B

$49.99

Description

Specifications

Includes

Parameter	Value
Impedance @200Mhz	50 Ohm ± 3
Minimum bending radius (up to 15 bends)	68mm (2.68 in)
Minimum bending radius (single bend/choke)	34mm (1.34 in)
Temperature	-40°C to +60°C (-40°F to +140°F)
Capacitance	75 pF/m ± 2 (22.9 pF/ft ± 2)
Velocity factor	83%
Screening Efficiency (SA) 100-2000 MHz	>105 dB
Inner conductor resistance	7,3 Ohm/Km
Outer conductor resistance	12 Ohm/Km
Tension test (spark test)	4 kV
Net weight 100m	5,4 Kg (3,63 lbs)
Maximum peak power	8000 Watts
Structural Return Loss (0,3-600 MHz)	>28 dB
Structural Return Loss (600-1200 MHz)	>22 dB
Structural Return Loss (1200-2000 MHz)	>18 dB

Frequency	Max Power (W)	Frequency	Max Power (W)
1.8 MHz	4572	430 MHz	353
3.5 MHz	3393	800 MHz	254
7 MHz	2714	1000 MHz	225
10 MHz	2286	1296 MHz	195
14 MHz	1974	2400 MHz	134
21 MHz	1670	3000 MHz	120
28 MHz	1448	4000 MHz	102
50 MHz	1086	5000 MHz	88
100 MHz	749	6000 MHz	79
144 MHz	629	7000 MHz	71
200 MHz	530	8000 MHz	63
400 MHz	368

Frequency	dB/100m	dB/100ft
1.8 MHz	1.1	0.3
3.5 MHz	1.3	0.4
7 MHz	1.7	0.5
10 MHz	1.9	0.6
14 MHz	2.2	0.6
21 MHz	2.6	0.8
28 MHz	3.0	0.9
50 MHz	4.0	1.2
100 MHz	5.8	1.7
144 MHz	6.9	2.1
200 MHz	8.2	2.5
400 MHz	11.8	3.6
430 MHz	12.3	3.7
800 MHz	17.1	5.2
1000 MHz	19.3	5.8
1296 MHz	22.3	6.8
2400 MHz	32.3	9.8
3000 MHz	36.2	11.0
4000 MHz	42.6	12.9
5000 MHz	49.3	15.0
6000 MHz	55.3	16.8
7000 MHz	61.6	18.7
8000 MHz	68.4	20.8
