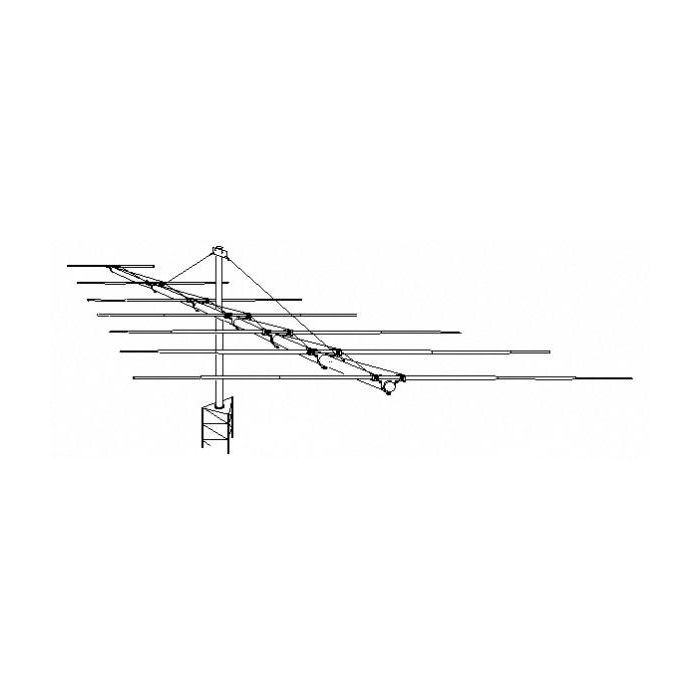

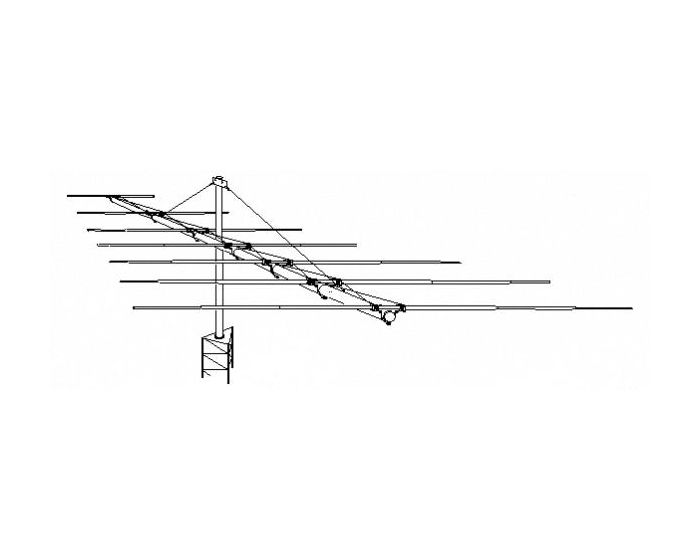

M2 Antenna 10M4DX
SKU
ZM2-10M4DX
$881.95
Check Store Stock
Huntsville:
Las Vegas:
Distribution Center:
FEATURES
The 10M4DX was designed for high performance while keeping weight, wind area and costs low. Using computer optimization techniques, we have squeezed for excellent performance on both the CW and phone. the 10M4DX is a great antenna to stack with more 10M4DX Yagis or with other HF antennas.
Mechanically, CNC machined aluminum (6061-T6) ring clamps ground the elements to the boom and make assembly a snap. A hairpin type match couples the 5 kW 1: balun to the feed line. The antenna is completely DC grounded. Great effort has been put into making sure this antenna stays in the air for years to come while providing enjoyment and satisfaction along the way.
SPECIFICATIONS
The 10M4DX was designed for high performance while keeping weight, wind area and costs low. Using computer optimization techniques, we have squeezed for excellent performance on both the CW and phone. the 10M4DX is a great antenna to stack with more 10M4DX Yagis or with other HF antennas.
Mechanically, CNC machined aluminum (6061-T6) ring clamps ground the elements to the boom and make assembly a snap. A hairpin type match couples the 5 kW 1: balun to the feed line. The antenna is completely DC grounded. Great effort has been put into making sure this antenna stays in the air for years to come while providing enjoyment and satisfaction along the way.
SPECIFICATIONS
- Model 10M4DX
- Frequency range 28.0 TO 28.8 MHz
- Gain 8 dBd
- Front to back, Typical 22 dB
- Beamwidth E=53° / H=64°
- VSWR 1.2:1 TYPICAL
- Feed ImpConnector 50 OHMS / SO-239
- Power Handling 2500 WATTS
- Boom length and diameter 24 FT. / 2" O.D.
- Element Dia 1", 3/4" & 1/2" TIPS
- Stcking Distance 25-31 FT. VERTICAL
- Turning radius 14 ft.8 in.
- Wind Load 3.5 SQ. FT.
- Wind / Survival 115 MPH
- Weight / ShipWt. 38 LBS. / 41 LBS. UPS
