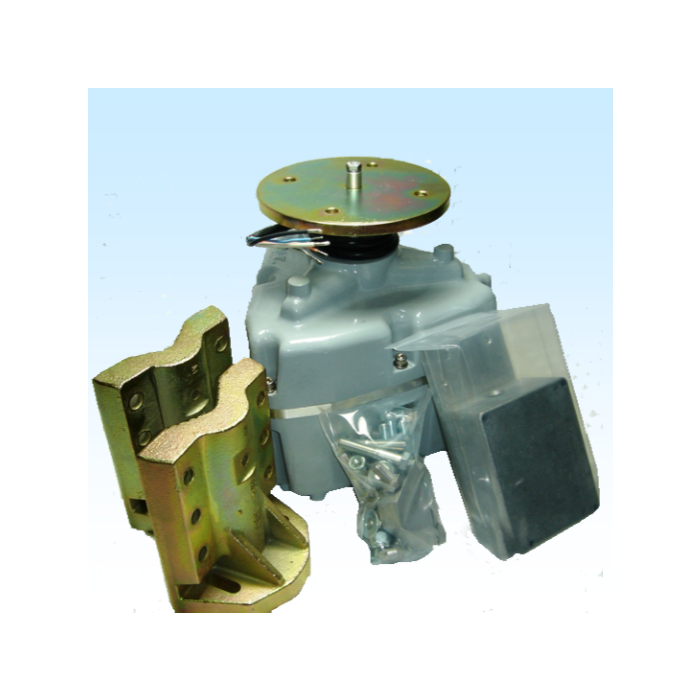

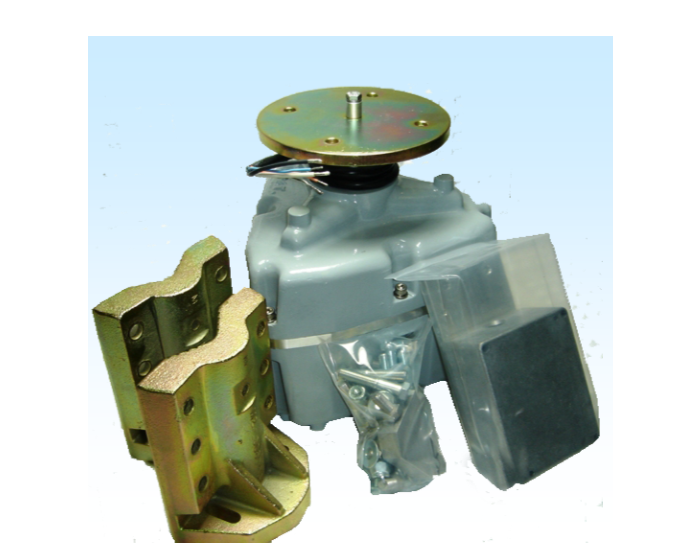

M2 Antenna OR2800PX

SKU
ZM2-OR2800PX
$1,769.99
Add to Wish List

This item is currently out of stock. We are not accepting backorders at this time.

Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

  • Ductile iron, massive, toothed mast clamps
  • Grade 5, 3/8-24 steel hardware
  • Self-centering mast guide
  • Drive plate accepts masts up to 3-1/8" OD
  • NEW! 6-SPLINED OUTPUT SHAFT AND HUB, NO KEYS TO SHEAR
  • Water seal to keep moisture out.
  • 2000 lb thrust bearing for low friction
  • Massive hardened steel main gear
  • Prop-pitch style torque plate
  • Magnetically actuated pulse counting switch for accurate heading display and target accuracy.
  • NEW! DC motor - higher starting torque
  • Precision wormdrive - cannot be reversed by mast torque; NO BRAKE RQD.
  • Standard Ham M etc. 3" x 3" bolt pattern + 2 extra holes, - fits inside towers like Rohn 25 & up, Triex LM-354 & up U.S. TOWERS TX438 & UP
OR-288P-DC SPECIFICATIONS
Wind Area Capacity 35 sq. ft.
Starting Torque 3500 in. lbs.
Rotating Torque 2800 in. lbs.
Braking Torque 17,000
Vertical Load Capacity 1800 lbs
Height of positioner (without clamps) 9.75"
Total height positioner and clamps 15.75
Mast Size (OD) 1.75-3"
Rotation Speeds / 360 degrees 40 TO 70 sec.
Rotation Range 0-360 degrees -+ 14 degrees
Readout Resolution 0.1 degrees
Travel Accuracy + - .5 degrees
Input Voltage 110 / 220 VAC
Motor Voltage 28-42 VDC
Cable req. - min 2-#18, 2-#22
Weight (rotator unit 42 lbs.
Shipping Weight 53 lbs. UPS


CONTROL UNITS
RC2800PX (Sold Separately)
