Portable radio, 40m, 5W, CW- only, additional band modules available
Additional Band Modules Available:
MFJ-BM15 - 15 Meter Module
MFJ-BM17 - 17 Meter Module
MFJ-BM20 - 20 Meter Module
MFJ-BM30 - 30 Meter Module
MFJ-BM40 - 40 Meter Module
MFJ-BM80 - 80 Meter Module

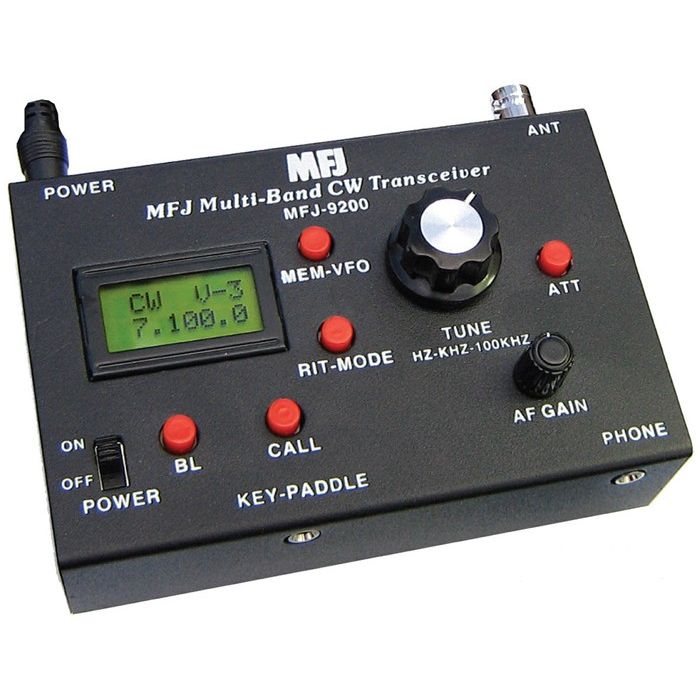

MFJ-9200 is a bold new addition to MFJ's legendary QRP transceiver line, delivering unmatched six-band CW performance in a compact pocket-sized package. QRP radios have always been small in size, but thanks to direct-digital synthesis and microprocessor technology, the MFJ-9200 represents a quantum leap over traditional designs with an unprecedented number of features for a very affordable price.
The MFJ-9200 covers 80 through 15 Meters using computer-modeled plug-in filter modules that yield no-compromise receiver performance and solid QRP+ transmit power on every band. There's also built-in iambic keying with a manual-key sensor, a programmable CQ message, and seamless QSK T/R switching. DDS frequency control delivers rock-solid stability, precise 100-Hz readout, and eight memory channels per band. Plus, you get a choice of three main-dial tuning rates and RIT with 10-Hz tuning resolution.
Other features include selectable IF-band-width for monitoring SSB or CW, a 20-dB front-end attenuator for overload protection, and a switched backlight for the LCD display. There's also plenty of receiver overlap for monitoring international short wave broadcasting.
MFJ-9200 runs on any power source between 8 and 15 VDC and draws a miserly
40 mA on receive with the display backlight turned off -- perfect for prolonged off-the-grid adventures. Best of all, the QR-Pocket Radio is the smallest and lightest backpack transceiver currently available.
MFJ also offers a wide range of QRP accessories to compliment the MFJ-9200 QRPocket CW TransceiverTM. For example, the MFJ-561 Miniature Iambic Paddle is a perfect companion when you're traveling light.
Also, consider picking up a pair of MFJ-392B light-weight stereo headphones for cushioned comfort and clear sound during those long QRP contest sessions.
For off-road adventure, check out MFJ's line of Walkabout portable antennas that plug directly into the QRPocket CW Transceiver's BNC connector. MFJ-1899T, (see left) features 80 through 6 Meter coverage with a "wander-lead" tapped loading coil and collapsible 52-inch whip.
For mono-band coverage, consider the collapsible MFJ-1880T, MFJ-1840T, MFJ-1830T, MFJ-1817T, or MFJ-1815T.
For random wire antennas, try the popular MFJ-902 miniature travel tuner.
Finally, when operating at home with your feet up, plug in the MFJ-4103
miniature switching power supply.
The MFJ-9200 QRPocket CW Transceiver comes complete with one band module of your choosing, and modules for the other bands.
Transceiver operation is intuitive, easy-to-master, and clearly explained in an easy-to-understand manual written by popular author and QRP Hall of Fame member
Rick Littlefield, K1BQT.
We all know working rare DX is exciting, but being rare DX is a truly indescribable!
Given the MFJ-9200 QRPocket CW Transceiver's diminutive size, features, wide
coverage, and solid output, all of the ingredients are here to turn your next vacation or business trip into a expedition to remember!
Frequency Control: DDS, 60-MHz reference
