The perfect all rounder!

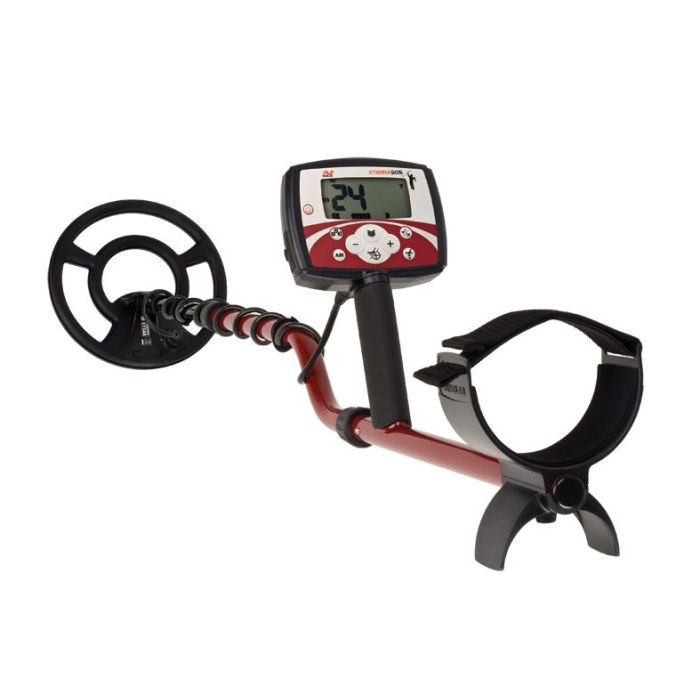

The X-TERRA 505 is the high performance, mid-range detector in the new generation Minelab X-TERRA Series. With advanced capability, great depth and excellent discrimination, the X-TERRA 505 is the ideal all-rounder to take your detecting experience to the next level. The X-TERRA 505 now has full frequency capability and can adapt easily to coin & treasure and relic hunting.
  • Minelab’s proprietary "True Digital" VFLEX technology, the new class of single frequency detectors – you can change the operating frequency simply by changing coils.
  • Compatible with low frequency (LF) 3kHz coils as well as medium 7kHz and high frequencies 18.75kHz. The LF coil option is ideal for hunting large, deep targets. All seven X-TERRA Coils can now be used on the X-TERRA 505.
  • Increased Ground Balance capability, range now (0-50), allowing the user to adjust to ground mineralization.
  • Extra detecting pattern – Now features three preset detecting patterns, that can also be customised, plus All Metal mode.
  • Choice of 1,2,3 or 4 Tone ID’s plus Multi-tone Target ID (19) response options increasing your flexibility in deciding how target signals are represented.
  • Larger discrimination range allowing for finer discrimination of high conductive targets.
  • Increased Noise Cancel range, now 5 manual settings, allowing greater choice of detecting channel. Increased Target Volume Adjust range, now (0-30), allowing better target response.
  • Threshold adjustment, with a range of -5 to 25, allowing the user to set threshold to level where slight variations from either very small shallow, or very large deep, targets can be noticed.
  • Fast recovery Pin-Point with variable tone and graphical indicator.
  • Depth indicator, updates continuously, even in Pinpoint mode.
  • Positive reflective LCD display.
  • Runs on just 4 x AA batteries.
  • Ultra lightweight, balanced design (only 1.3kgs).
  • Application Coin, Relic, Jewelry & Beach
  • Technology VFLEX
  • Frequency/Transmission 3, 7.5 & 18.75kHz - change frequency by changing coils
  • Coil (standard) 9" Concentric lightweight, waterproof 7.5kHz.
  • Audio Output Internal speaker & 6.35mm (1/4") headphone jack.
  • Headphones Supplied Optional accessory.
  • Visual Display Large monochrome 76mm x 37mm (3" x 1.75") positive reflective LCD.
  • Backlight -
  • USB Connectivity -
  • Memory Remembers user settings even if batteries are removed.
  • Depth Indication 5 depth indication icons.
  • Detect Modes (1) Coin & Treasure.
  • Discrimination Three factory Discrimination patterns that can be personalized & All Metal. 19 segment discrimination scale.
  • Timings -
  • Audio tone 1, 2, 3, 4 & Multi.
  • Audio Type -
  • Ground Balance Manual adjustment 0 to 50.
  • Ground Balance Type -
  • Trash Density -
  • Pinpoint Audio & visual.
  • Sensitivity Adjust Adjustable (1 to 20).
  • Tune / Noise Cancel 5 channels (-2, -1, 0, 1, 2).
  • Threshold Adjustable (-5 to 25).
  • Target Volume Adjust Adjustable (0 to 30).
  • Battery 4xAA Alkaline/Carbon/Lithium or NiMH/NiCad (not included).
  • Low battery alert Audio & visual alert.
  • Length 1220mm - 1420mm (48" - 56").
  • Weight 1.3kb (2.9lbs) (ex. battery).
  • Warranty 3 years control box & coil.
