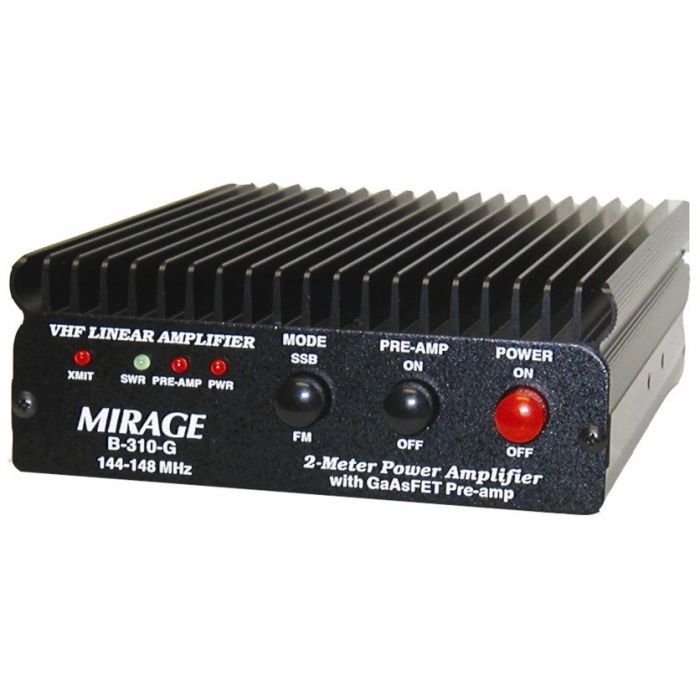

Mirage 3W Amp In 100W Out 144 - B-310-G

Upgrade your 2meter portable or handheld radio with the Mirage B-310-G Amplifier and turn "you're breaking up... can't copy" into "Solid Copy ... Go Ahead!" This powerful and rugged amplifier is perfect for all handhelds up to 8 watts and can transform your device into a powerful 100-watt mobile or base station. With its built-in low-noise GaAsFET receive preamplifier, you can easily dig out weak signals and reach distant repeaters or log onto faraway packet bulletin boards. The compact and lightweight design of the B-310-G Amplifier features Mirage's custom "wrap-around" heat sink to provide excellent heat distribution and runs cool for extra-long life. Plus, it is fully SWR protected to prevent damage from a mobile antenna whipping around in the wind and has reverse polarity protection to save your amp if you accidentally connect the power backwards. You will also get free accessories, including a 3-foot coax cable, mobile bracket, and rubber mounting feet, as well as a full one-year Mirage warranty. Order your B-310-G Amplifier from GigaParts today and start enjoying clearer and more reliable communication.

2m Band VHF Amplifier with GaAsFET Pre-Amplifier

Specifications:

  • Frequency: 144 - 148 MHz
  • RF Input: 250mW - 8W
  • RF Output: 100W (typical)
  • Modes: FM SSB CW
  • Receive Pre-Amp: 18dB (typical)
  • Supply Voltage: 12- 15V DC
  • Supply Current: 15A (typical)
  • Fuse: 20A
  • Connectors: SO-239

    2m Band VHF Amplifier with GaAsFET Pre-Amplifier

    For an incredibly low price, you can boost your 2 Meter handheld to a powerful 100 Watts mobile/base!
    Turn "you`re breaking up... Cant copy..." into "Solid Copy ... Go Ahead."
    Talk further... Reach distant repeaters .... log onto faraway Packet bulletin boards.
    This rugged Mirage B-310-G amplifier operates all modes: FM, SSB and CW. Its perfect for all handhelds up to 8 watts and multi-mode SSB/CW/FM 2 Meter rigs.
    Low Noise GaAsFET preamp
    A built-in low noise GaAsFET receive preamp gives you 15 dB gain -- lets you dig out weak signals.
    Fully Protected
    SWR Protection prevents damage from antennas whipping in the wind. Reverse Polarity Protection can save your amp if you connect power backwards.
    Compact but Powerful
    Mirages integrated HeatsinkCabinet and whisper quiet fan gets heat out fast!
    The results? An ultra-compact 4.75" x 1.75" x 7.75" 2 %frac12; pound amplifier that delivers a super power 100 Watts. It will get you through the most congested bands and snag a rare contact!
    Free Accessories
    Free 3 foot handheld to B-310-G coax cable - just plug and play! Free mobile bracket! Free rubber mounting feet!
    Plus More...
    Automatic RF sense Transmit/Receive switch. Remote keying jack. LEDs monitor "On Air", high SWR, pre-amp, power. Push buttons select SSB/FM, pre-amp, power. Draws 15 Amps at 12-15 VDC.
    Full one year Mirage warranty
    With Mirages legendary ruggedness, you may never need our superb warranty.

    Specifications:

    • Frequency: 144 - 148 MHz
    • RF Input: 250mW - 8W
    • RF Output: 100W (typical)
    • Modes: FM SSB CW
    • Receive Pre-Amp: 18dB (typical)
    • Supply Voltage: 12- 15V DC
    • Supply Current: 15A (typical)
    • Fuse: 20A

    MIRAGE 2 Meter Amplifiers

    Typical Power Curve

    Watts In 0.25 0.5 1 2 3 4 5 6 7 8
    B-34-G Watts Out 8 12 18 30 33 35 35 35 35 35
    B-310-G Watts Out 25 50 75 95 100 100 100 100+ 100+ 100+
    DB-35 Watts Out (2 Meters) 10 18 30 40 45 45 45 45+ 45+ 45+
    DB-35 Watts Out (440 MHz) 4 10 16 26 32 35 35 35+ 35+ 35+
