Tarheel Antennas Model 40A-HP

Tarheel Antennas Model 40A-HP SKU: ZTH-40A-HP
This item does not qualify for free shipping.


Ready to Ship!
Check Store Stock

Huntsville Store:

Las Vegas:

Model 40A-HP

Don't forget to look for the appropriate automatic screwdriver antenna tuner from TurboTuner! Proudly made in the USA, the TurboTuner comes in three models: ITT-1 for Icoms. KTT-1 for Kenwoods, ZTE-YTT-1 for Yaesu.

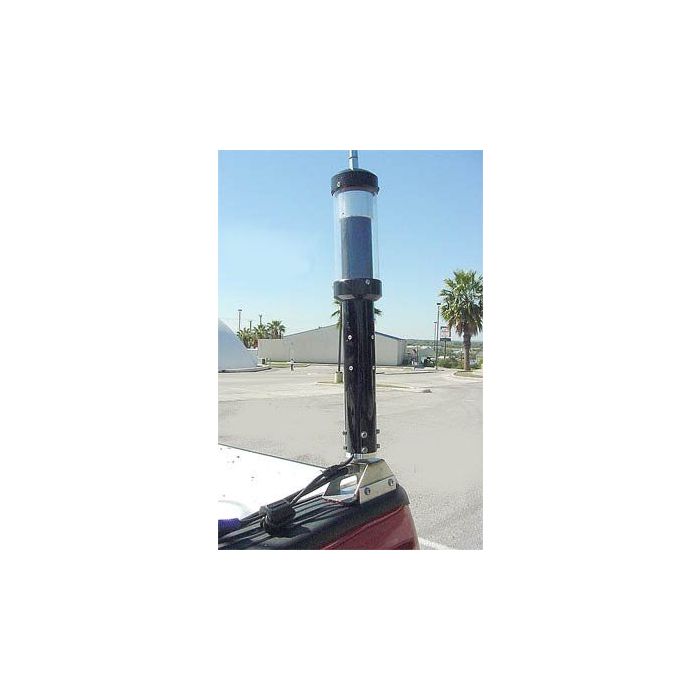

When properly installed on your vehicle the Model 40A-HP will provide continuous coverage from 7 to 32 MHz with a 6' whip. The Model 40A-HP gives you low profile like the Little Tarheel II and the larger coil and more power like the larger Tarheels. The lower mast of the Model 40A-HP is 16" in height like the Little Tarheel II but has the 2" coil like the Model 200. All of our antennas come with the sensors already pre-installed so if you decide to add one of the auto controllers (SDC-100 Simple Controller, SDC-102 Programmable Controller, Turbo Tuner) now or later everything is ready.

What makes our antennas stand above the rest is all of our CNC machined components are either aircraft aluminum or stainless steel and blueprinted, meaning you can take 100 antennas apart and mix up the parts then reassemble them and they all work the same. Our coil form is approximately 2" in diameter and made of fiberglass. The other antenna builders know fiberglass is better but they choose not to use it because of the expense and difficulty in machining.

The decoupler we use is CNC machined for tight tolerances with custom fingerstock designed to contact 5 turns of coil all the time with over 25 lbs. of combined contact pressure. With this design you can run up to 1.5 Kw P.E.P trouble free. It's so superior to anything else on the market. The Pittman 12 volt commercial grade gear motor is very durable and very quiet while receive tuning.

Our weather shield is made of LexanTM. This is the same stuff used on racecar windshields and even used to make bulletproof windows. The Model 40A-HP comes in your choice of colors (black, white, red or silver). And folks this is not spray paint in a can. It's the Dupont Imron 5000 or Powder Coat Paint System. With this you get a finish that looks as glossy and last as long as the paint on a new vehicle. That's just some of the effort that goes into a Tarheel Antenna. The antenna is a plug & play system. Included is the antenna, manual switch box, 20 ft. of control cable, ferrite decoupling core, 3/8-24 stud, fuseholder and fuse.
