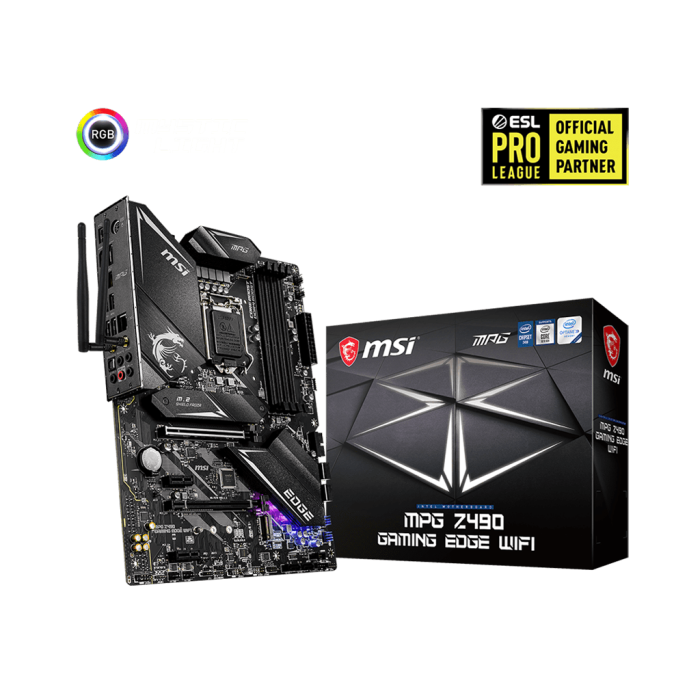

MSI MPG Z490 GAMING EDGE WIFI LGA1200 ATX Motherboard

• Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 4800(OC) MHz
• Ready 4 the Future: Support Lightning Gen 4 Solution for the future
• Enhanced Power Design: 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
• Premium Thermal Solution: Aluminum Cover with Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• Lightning USB 20G: Powered by ASmedia 3241 USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
• 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip
• Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
• Audio Boost: Reward your ears with studio grade sound quality

Model Name MPG Z490 GAMING EDGE WIFI
CPU Support Supports 10th Gen Intel®
Core™ and Pentium®
Gold /
Celeron®
processors
CPU Socket LGA 1200
Chipset Intel®
Z490 Chipset
Graphics Interface 2x PCI-E 3.0 x16 slots
Support 2-Way AMD®
CrossFire™ Technology
Display Interface DisplayPort, HDMI - Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR4-4800(OC)
Expansion Slots 2x PCIe 3.0 x1 slots
Storage 2x M.2 slots, support Intel®
Optane™ Technology
6x SATA 6Gb/s
USB ports 1 x USB 3.2 Gen 2x2 20Gbps (Type-C) + 1 x USB 3.2 Gen 2
10Gbps (Type-A) + 7 x USB 3.2 Gen 1 5Gbps (6 Type-A + 1
Type-C) + 6 x USB 2.0
LAN Realtek®
8125B 2.5G LAN
WiFi / BT Intel®
Wi-Fi 6 AX201, Bluetooth 5.1
Audio 8-Channel(7.1) HD Audio with Audio Boost 4
Form Factor ATX
