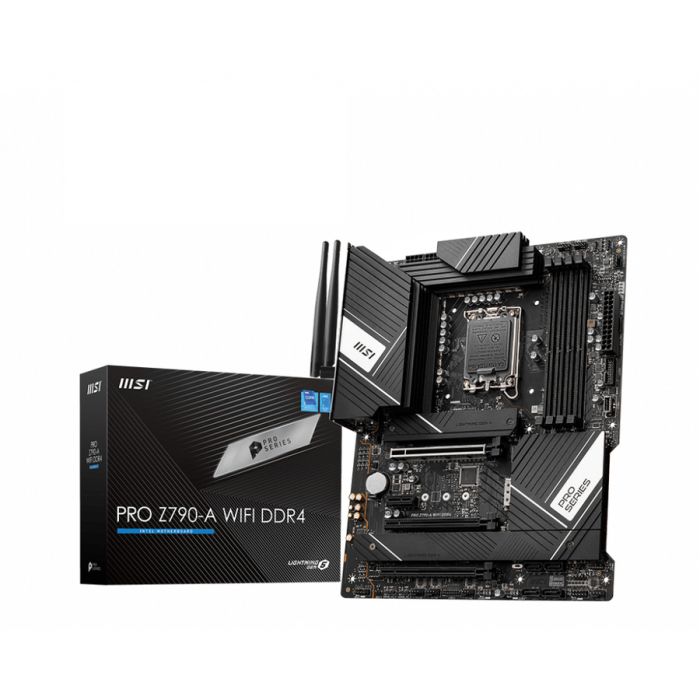

MSI Z790-A WIFI DDR4 ATX Desktop Motherboard - PROZ790AWIFID4

Processor & Chipset

Chipset Manufacturer:   Intel
Chipset Model:   Z790
Total Processor Supported:   1
Processor Socket:   Socket LGA-1700
Processor Generation Supported:   13th Gen
Processor Supported:   Celeron
Processor Supported:   Core i3
Processor Supported:   Core i9
Processor Supported:   Pentium Gold
Processor Supported:   Core i5
Processor Supported:   Core i7

Memory

Number of Memory Slots:   4
Memory Form Factor:   DIMM
Memory Form Factor:   UDIMM
Maximum Memory Supported:   128 GB
Memory Technology:   DDR4 SDRAM

Network & Communication

Bluetooth:   Yes
2.5Gigabit Ethernet:   Yes
Wireless LAN:   Yes
Wireless LAN Standard:   IEEE 802.11 a/b/g/n/ac/ax

I/O Expansions

Number of Total Expansion Slots:   4
Total Number of PCI Express Slots:   4
Number of PCI Express x1 Slots:   1
Number of PCI Express x16 Slots:   3

Interfaces/Ports

Total Number of USB Ports:   8
Number of USB 2.0 Ports:   2
Number of USB 3.2 Ports:   1
Number of USB 3.2 Gen 1 Ports:   2
Number of USB 3.2 Gen 2 Type-A Ports:   3
S/PDIF:   Yes
HDMI:   Yes
DisplayPort:   Yes
Number of Network (RJ-45) Ports:   1

Onboard Interfaces

Number of SATA Interfaces:   6
Number of M.2 Interfaces:   4
Total Number of Onboard USB Ports:   7
Number of Onboard USB 2.0 Ports:   4
Number of Onboard USB 3.2 Ports:   3

Physical Characteristics

Form Factor:   ATX
Width:   12"
Depth:   9.6"

• MPG Z790 EDGE WIFI DDR4 Gaming Desktop Motherboard
• I/O Shield
• Quick Installation Guide
• Wi-Fi Antenna
• 2 x SATA Cables
• M.2 Clip
• M.2 Screw / Standoff Sets
• Driver DVD
