Netgear FS105NA

Netgear FS105NA SKU: NH0122


Discontinued. No Longer Available

Check Store Stock

Huntsville Store:

Las Vegas:

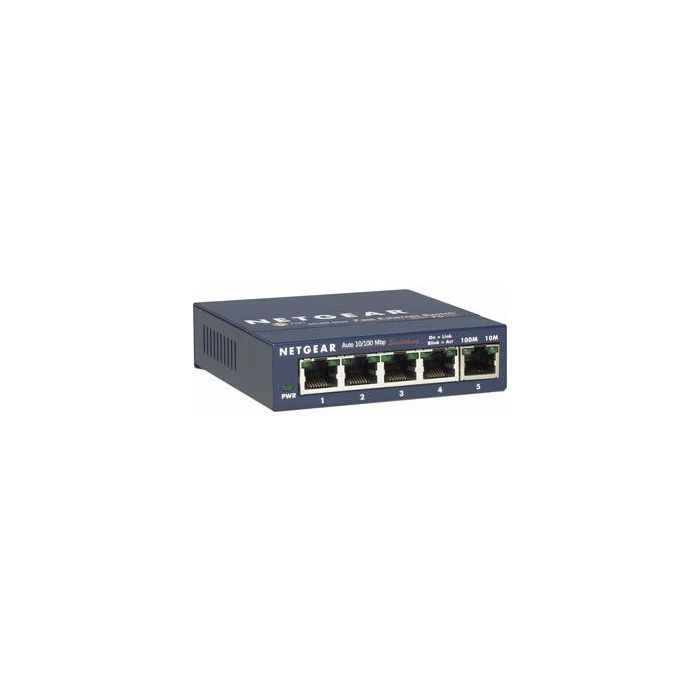

Netgear ProSafe FS105 5-Port Ethernet Switch

The FS100 series FS105 Fast Ethernet switch brings the 100 Mbps switching technology and simplifies it for the small office marketplace. This product provides a cost effective way to instantaneously boost network performance while preserving your network infrastructure, including installed cabling and desktop software and hardware. Since each port is auto-speed- sensing, installation is plug and play and each connection can easily be upgraded from 10 to 100 Mbps.

  • Mfr Part Number: FS105NA
  • Network Ports: 5 switched auto-speed-sensing UTP ports
  • Standards Compliance:
    • IEEE 802.3 10BASE-T Ethernet
    • IEEE 802.3u 100BASE-TX Fast Ethernet
    • IEEE 802.3x Full-duplex Flow Control
  • Performance Specifications:
    • Forwarding modes: Store-and-forward
    • Network latency: Less than 20 s for 64-byte frames in store-and-forward mode for100 Mbps to 100 Mbps transmission
    • Buffer memory: 64 KB
    • Address database size: 1,000
    • Addressing: 48-bit MAC address
    • Mean Time Between Failure (MTBF): 390,000 hours (~40 years)
  • Safety Agency Approvals: UL listed (UL 1950)/cUL; IEC950/EN60950
  • Status LEDs: Power, Link, speed, and activity indicators built into each RJ-45 port
  • Electromagnetic Emissions
    • CE mark, commercial
    • FCC part 15 Class A
    • EN55 022 (CISPR22), Class A
    • VCCI Class A
    • C-Tick
  • AC Power: 7.5W (7.5VDC, 1A)
  • Dimensions: 3.7 x 4.1 x 1.1 in (94 x 103 x 27 mm)
  • Weight: 0.62 lbs (0.28 kg)
  • Matel Case
