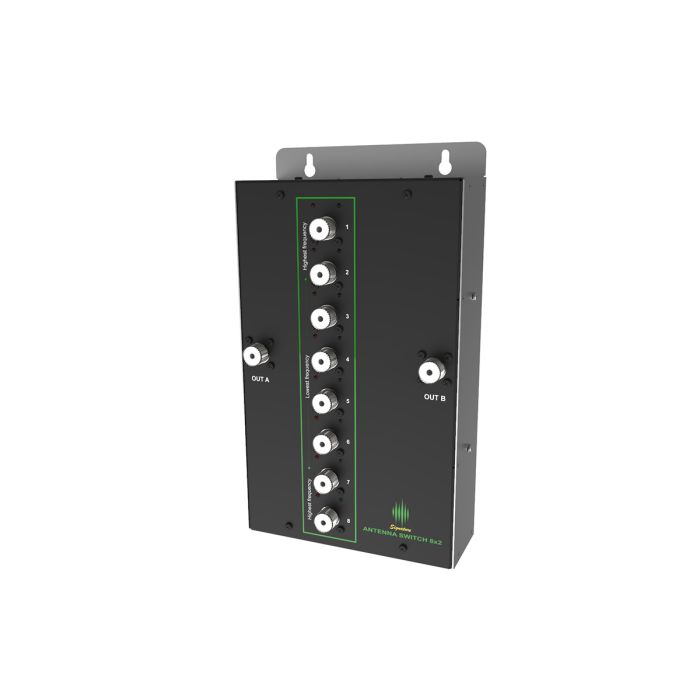

OPEN BOX 4O3A Signature AB 8x2 Antenna Switch - SO-239

OPEN BOX

Eight antennas to two radios high isolation antenna switch.

Key Features

Built in hardware interlock system. Same antenna can not be used on both radios at the same time.
4kW power rated.
Wire controlled by a mechanical switch or Station Genius, SAC X or any other band decoder.
Mechanical antenna switch, Station Genius and SAC X are not included but can be purchased separately.
Control connectors on bottom of the case makes installing, replacing and repairing fast and easy.
LED control diodes for visual monitoring of device.
4O3A style high isolation.
Easy to install anywhere in the shack.
Input conectors are SO 239 or N type conectors.
Compatible with all +12V source driver band decoders.
Factory preset on +12V signals.
Unselected antenna ports are grounded.
Without power all antenna ports are grounded.
Each device is individualy trimed and tuned for best performance.
