Open Box Hybrid Portable Micro HF Antenna System with 60ft Wire SN112727

Open Box Hybrid Portable Micro HF Antenna System with 60ft Wire SN112727

Hybrid Portable Micro HF Antenna System with 60ft Wire

The CHA HYBRID-MICRO is a lightweight highly portable broadband antenna system designed to offer maximum portability and performance. The antenna weights about  10oz.

The antenna will operate at all frequencies in the 1.8-54 MHz band without any adjustment with most modern external antenna tuners. No masts or guying are required.

The antenna will work successfully supported by trees, masts, the tops of vehicles or any convenient object or structure. The antenna works most effectively when elevated at a reasonable height.

Specifications:

Frequency: 6M - 160M

Power: 100 SSB or 50W CW.

Mounting Configuration: 3/8-24 Thread

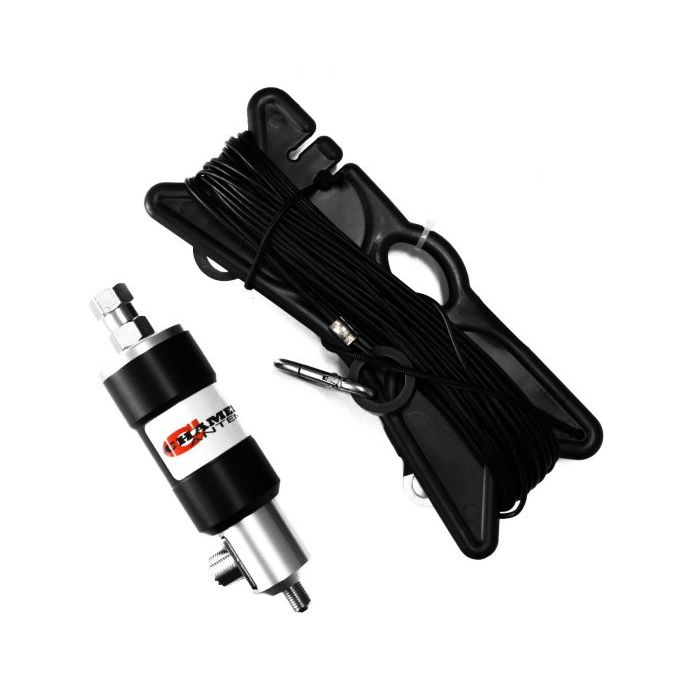

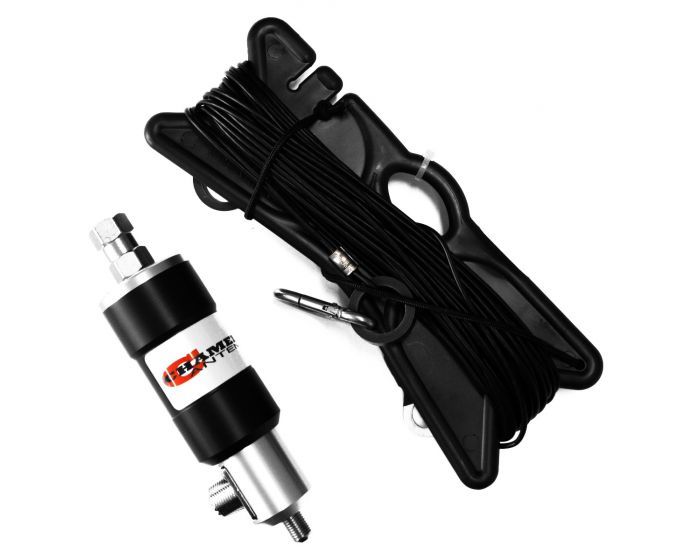

The antenna system consists of:

1 X HYBRID-MICRO Matching Unit Base

1 X 60' Copper Clad KEVLAR PTFE (Teflon) (-70°C to 150°C) wire

Stainless Steel Hardware
