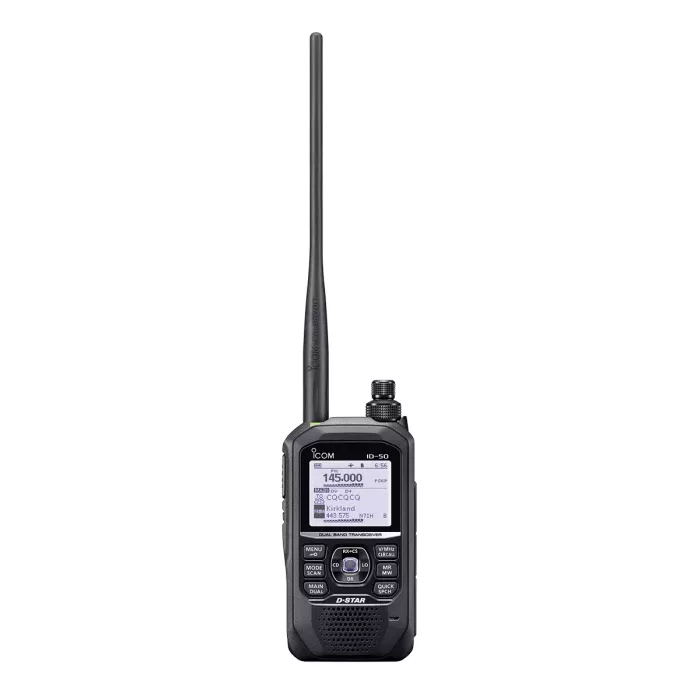

The ID-50A's Band Scope and Waterfall displays can visually show active channels with a wide span and timeline, so it is easy to find active channels by sight. The Dualwatch function doubles QSO opportunities to monitor VHF/VHF, VHF/UHF and UHF/UHF bands at the same time. The ID-50A can receive both the Airband and the FM bands. Large capacity battery pack, BP-307 for the IC-705 is usable as well.
- Global communication reach using the D-STAR network
- Easy D-STAR settings help beginners
- Terminal Mode and Access Point Mode
- Share Picture function with the ST-ID50A/W picture utility software
- Band Scope with Waterfall display
- Dualwatch function of VHF/VHF, VHF/UHF and UHF/UHF
- VHF Airband and FM broadcast receiver capability
- Same optional accessories can be shared with the ID-52/ID-51/ID-31 series transceivers
| General |
| Frequency Coverage |
Transmit |
Receiver |
Broadcast band |
| 144~148 MHZ, 430~450 MHZ* |
(A)108~174 MHZ, 375~479 MHZ*
(B) 137~174 MHZ, 375~479 MHZ*
|
88.0~108 MHZ |
| (A) means A band, (B) means B band. Guaranteed Range: *144~148, 440~450 MHZ |
| Type of emission |
F2D, F3E, F7W |
| Mode |
DV, FM, FM-N, WFM, AM, AM-N |
| Number of memory Channels |
500 memory channels, 4 call channels, 25 scan edges
100 skip channels, 500 broadcast stations, 2500 repeater lists, 300 call signs and 300 gps memories
|
| Frequency resolution |
5, 6.25, 8.33, 10, 12.5, 15, 20, 25, 30, 50, 100, 125, 200 kHz |
| Operating temperature range |
-20C ~ +60C, -4F ~ +140F |
| Frequency stability |
±2.5ppm (-20C ~ +60C on the basis of 25C) |
| Antenna impedance |
50Ω (SMA) |
| Power supply requirement |
Battery Pack |
7.4V DC(with BP-271/BP-272) |
| Alkaline cells |
5.5V DC (with BP-273) |
| External DC |
10-16V DC |
|
Current drain
(at 7.4V DC)
|
TX High |
Less than 2.5A |
| RX AF Max. |
Less than 400 mA (FM, FM-N) (8Ω)
Less than 450 mA (DV) (8Ω) |
| Dimensions (WxHxD) |
2.3 x 4.4 x 1.2 inches (Projections not included) |
| Weight (approx) |
300g, 10.6 oz (with BP-272 & antenna) |
| Transmitter |
| Modulation System |
DV |
GMSK reactance modulation |
| FM, FM-N |
FM reactance modulation |
| Output Power |
5W, 2.5W, 1.0W, 0.5W, 0.1W
(High, Mid, Low2, Low1, S-low) |
| Spurious emissions |
Less than -60 dBc (High, Mid)
Less than -13 dBm (Low2, Low1, S-low) |
| Max frequency deviation |
Less than ±5.0/2.5 kHz (FM/FM-N) |
| Ext. Mic impedance |
2.2kΩ |
Receiver
|
| Sensitivity |
DV |
Less than 0.2μV (at 1% BER) |
| FM, FM-N |
Less than 0.18μV (at 12 dB SINAD) |
| Selectivity |
More than 50 dB (DV, FM-N), More than 55 dB (FM) |
| Spurious rejection |
More than 60 dB |
| Audio output power |
Internal SP |
More than 750 mW (8Ω load) |
| External SP |
More than 200 mW (8Ω load) |
| Receiver sensitivity (Except amateur bands.) |
| |
Frequency range |
FM/FM-N/WFM (12 dB SINAD) |
AM/AM-N (10 dB S/N) |
| BC band |
88.000~108.000 |
Less than 1μV (WFM) |
- |
| A band |
108.000~136.991 |
- |
Less than 1 μV |
| 137.000~142.000 |
Less than 0.18 μV |
Less than 1 μV |
| 142.005~148.000 |
Less than 0.18 μV |
- |
| 148.005~174.000 |
Less than 0.32 μV |
- |
| 375.000~399.995 |
Less than 0.5 μV |
- |
| 400.000~479.000 |
Less than 0.32 μV |
- |
| |
|
| B band |
137.000~142.000 |
Less than 0.18 μV |
- |
| 142.005~148.000 |
Less than 0.18 μV |
- |
| 148.005~174.000 |
Less than 0.32 μV |
- |
| 375.000~399.995 |
Less than 0.5 μV |
- |
| 400.000~479.000 |
Less than 0.32 μV |
- |
All stated specifications are subject to change without notice or obligation.
