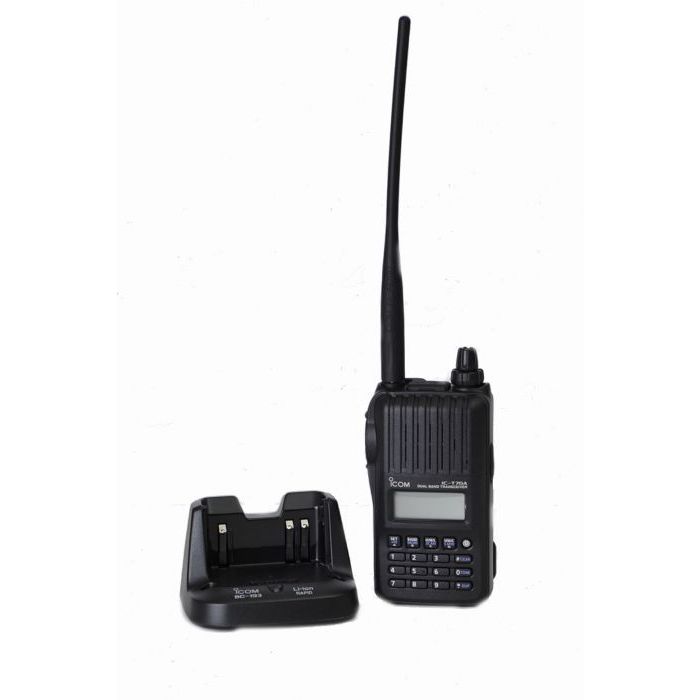

Open Box ICOM T70A-HD Handheld Radio, 2m/70cm S/N15004048

Open Box ICOM T70A-HD Handheld Radio, 2m/70cm S/N15004048

Impressive audio output volume, long-lasting power, plenty of memory channels, rugged construction, rich in analog features – the T70A offers practical 2m/70cm dual band operation and ruggedness, updated for today's ham radio enthusiasts.

700mW loud audio

The IC-T70A HD users a BTL (bridge-tied load) amplifier that doubles the audio output. Every ham knows that power = current × voltage. The T70A’s BTL increases the audio output by doubling the voltage delivered to the speaker. The 36mm large speaker delivers 700mW of loud and intelligible audio* even in noisy environments.
*Typical value using internal speaker.

Long lasting battery life

Get 5W of power on VHF and UHF in a small, lightweight package. Get up to 19 hours* of operating time with the T70A HD power version, which includes a Li-ion battery pack (BP-265) and rapid charger (BC-193). All that power comes is an easy to hold and use size – not too big, not too small. The T70A Sport version, ideal for long storage or quick back-up, features an AA alkaline battery case instead of a charger/rechargeable battery pack.
* Typical value using internal speaker.

External DC power jack

An external DC power jack allows for operation and charge when used with an external DC power supply (10-16V DC).*
The BP-265 cannot be charged using the external DC power jack.

A total of 302 memory channels

With 302 alphanumeric memory channels, including 50 band edges and 2 call channels, the IC-T70A HD gives you flexible scanning lists. With a maximum of 26 memory banks*, you can pick and choose the desired banks for scanning from the 250 memories.
Up to 100 channels per bank.

Built-in CTCSS/DTCS

CTCSS and DTCS tone codes provide quiet stand-by and allow you to use tone-access repeaters. Pocket beep alerts you when a matching tone frequency is received. Tone scan detects the subaudible tone that is used for repeater access.

Internal VOX function

The IC-T70A HD has an internal VOX (Voice Operated Transmit) function for convenient hands-free operation when used with a compatible optional headset and plug adapter cable. Also, the VOX level and VOX delay time are adjustable.

IP54 and MIL-STD 810 rugged construction

Dust protection and water-resistance equivalent to IP54 provides reliable operation for practical outdoor operation. The IC-T70A HD tested to and passed MIL-STD 810 environmental tests.

Other Features

• WX channel and WX alert function (USA version only)
• Power save function
• SMA type antenna connector
• Automatic repeater function (USA version only)
• 1750 Hz tone for European repeater access
• TOT (time out timer) setting
• Repeater lockout and busy channel lockout
• PC programmable with optional CS-T70
• Transceiver-to-transceiver cloning (Optional)
• Direct keypad frequency entry
• 16 DTMF autodial memories
• Auto power off
• LCD backlight
• Wide/narrow channel spacing
