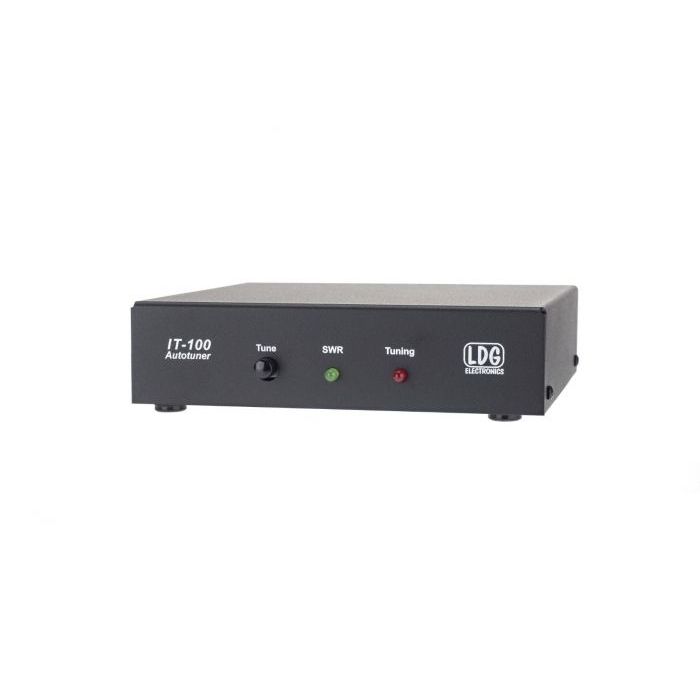

Open Box LDG IT-100 Automatic External Tuner for ICOM Radios SN123493. Tested and worked on Showroom IC-7300.
Radios just keep getting better and better. Back in the day, a 6146 backed by a VFO was a big deal. Now, radios are basically computers with an RF stage or two. They get so much right on these fantastic rigs, you just have to wonder how they could have gone so wrong with the antenna tuner.
Icom's AT-180 tuner matches an SWR of only 3:1 at most (2.5:1 on 6 meters)!
This limits you to antennas that are pretty much resonant to start with; droopy dipoles and wet-noodle verticals on Field Day are out of the question with the AT-180. And, the AT-180 has only 70 memories. That's just 7 or 8 memories per band; heck, there's more RV and county hunter nets than that, never mind DX calling frequencies and SSTV watering holes.
Once again, LDG comes to the rescue. The IT-100 is the ideal tuner for your shiny new IC-7000. First, it matches up to 10:1 SWR (3:1 on 6 meters), so just about anything you can feed with coax is good to go. And, it has 2,000 (not a typo; that's 2,000!) memories, enough for every Dxpedition, RTTY spot and radio buddy you've got, and then some. Just hit the tune button on the radio, and your IT-100 will set tuner parameters in less than a second if you've been there before. If not, it kicks off a full tuning cycle that will be over in about 3 seconds. Don't need the tuner just now? Then just tap the Tune button briefly, and the tuner goes into bypass. Press it again to bring the tuner back on line -- it's just that simple.
The IT-100 is just 6.5" long, 6.5" deep and 1.5" tall. It weighs only 1.5 pounds, and gets its DC power directly from the radio; no separate power supply needed. The IT-100 works with any Icom radio that supports AH-3 or AH-4 Icom antennas. The list includes: IC-706, 703, 718, 7000, 7100, 7200, 7410, 746, 756, 7600 (and all variants).
The IT-100 comes fully assembled, aligned and ready to use. The package includes a 14" radio interface to an Icom radio. (Coax jumper not included.)
Oh, and one other thing: the LDG IT-100 costs about half as much as the AT-180. So, let's review: much wider matching range, thousands more memories and LDG's famous 2 year warranty, all at half the price. The IT-100 is clearly the tuner of choice for your Icom radio; order yours today.
If you have any questions about which LDG tuner to purchase, take a look here!
