Open Box Rig Expert AA-230 Zoom SN123202758

$389.95
Open Box Rig Expert AA-230 Zoom SN123202758 SKU: ZUS-2320

$389.95

Free Shipping!

Ready to Ship!
Check Store Stock

Huntsville Store:

Las Vegas:

Open Box Rig Expert AA-230 Zoom SN123202758. Screen has hairline scuff. Includes case, connector and manuals.

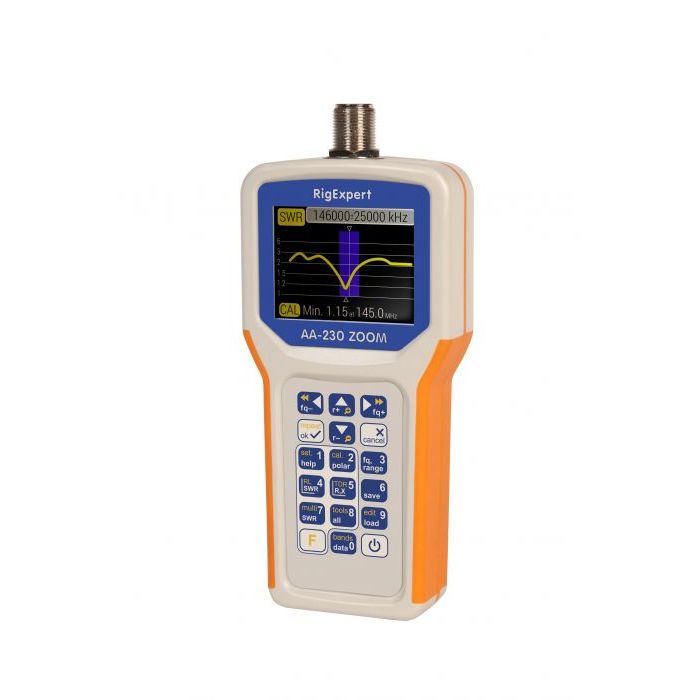

The RigExpert AA-230 Zoom analyzer is designed for measuring SWR (standing wave ratio), return loss, cable loss, as well as other parameters of cable and antenna systems in the range of 100 kHz to 230 MHz.

A built-in ZOOM capability makes graphical measurements especially effective.

An integrated Time Domain Reflectometer mode can be used to locate a fault within the feedline system.

Frequency range: 0.1 to 230 MHz

Frequency entry: 1 kHz resolution

Measurement for 25, 50, 75 and 100-Ohm systems

SWR measurement range: 1 to 100 in numerical modes,
1 to 10 in chart modes

SWR display: numerical or analog indicator

R and X range: 0…10000, -10000…10000 in numerical modes,
0…1000, -1000…1000 in chart modes

Display modes:
– SWR at single or multiple frequencies
– SWR, return loss, R, X, Z, L, C at single frequency
– SWR chart, 20 to 500 points
– R, X chart, 20 to 500 points
– Smith chart, 20 to 500 points
– Return loss chart, 20 to 500 points
– TDR (Time Domain Reflectometer) chart
– Cable tools (loss and characteristic impedance)

Optional open-short-load calibration.

Non Volatile memory:
– 100 slots to save measurement results

RF output:
– Connector type: N
– Output signal shape: square
– Output power: -10 dBm (at 50 Ohm load)

Power:
– Four 1.5V alkaline batteries, type AAA
– Four 1.2V Ni-MH batteries, type AAA *
– Max. 4 hours of continuous measurement, max. 2 days in stand-by mode when fully charged batteries are used
– When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources

Interface:
– 290×220 color TFT display
– 6×3 keys on the water-proof keypad
– Multilingual menus and help screens
– USB connection to a personal computer

Dimensions: 82 x 182 x 32 mm (3.2 x 7.2 x 1.3 in)

Operating temperature: 0…40 °C (32…104 °F)

Weight: 236 g (8.32 oz)

Warranty: 2 years

GTIN-13: 4820185420082

RigExpert AA-230 ZOOM is made in Ukraine.

Specifications are subject to change without notice.

* Batteries are not included with the analyzer.
