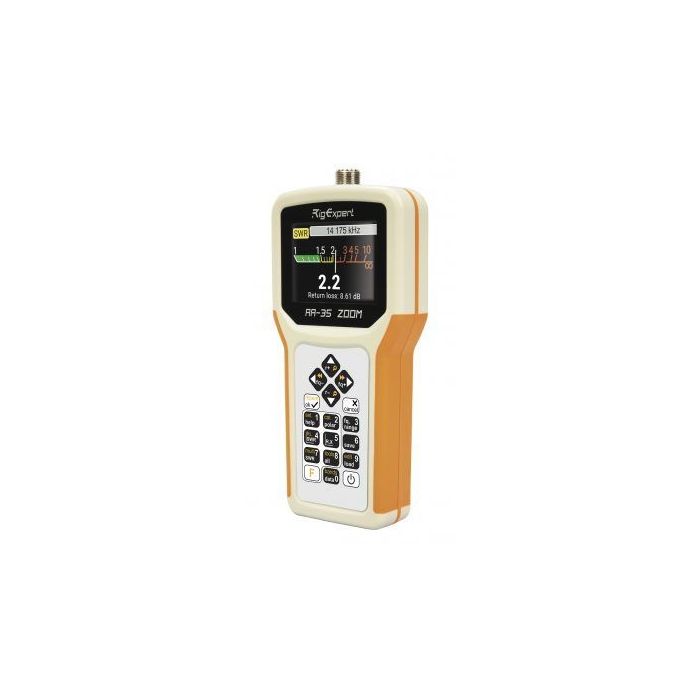

Open Box RigExpert AA-35 ZOOM S/N135001440

Open Box RigExpert AA-35 ZOOM S/N135001440.

Slight staining on box, unit it okay. Missing usb cable and batteries.

The RigExpert AA-35 Zoom analyzer is designed for measuring SWR (standing wave ratio), return loss, cable loss, as well as other parameters of cable and antenna systems in the range of 60 kHz to 35 MHz.

A built-in ZOOM capability makes graphical measurements especially effective.

Frequency range: 0.06 to 35 MHz

Frequency entry: 1 Hz resolution

Measurement for 25, 50, 75 and 100-Ohm systems

SWR measurement range: 1 to 100 in numerical modes,
1 to 10 in chart modes

SWR display: numerical or analog indicator

R and X range: 0…10000, -10000…10000 in numerical modes,
0…1000, -1000…1000 in chart modes

Display modes:
– SWR at single or multiple frequencies
– SWR, return loss, R, X, Z, L, C and phase angle at single frequency
– SWR chart, 100 points
– R, X chart, 100 points

Non Volatile memory:
– 10 slots to save measurement results

RF output:
– Connector type: UHF (SO-239)
– Output signal shape: square, 0.06 to 35 MHz
– Output power: +13 dBm (at 50 Ohm load)

Power:
– Two 1.5V alkaline batteries, type AA
– Two 1.2V Ni-MH batteries, type AA *
– Max. 4 hours of continuous measurement, max. 2 days in stand-by mode when fully charged batteries are used
– When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources

Interface:
– 320×240 color TFT display
– 6×3 keys on the water-proof keypad
– Multilingual menus and help screens
– USB connection to a personal computer

Dimensions: 103 mm x 207 mm x 37 mm (4.1 in x 8.1 in x 1.4 in)

Operating temperature: 0…40 °C (32…104 °F)

Weight: 310 g (10.9 Oz) w/o batteries

Warranty: 2 years

GTIN-13: 4820185420099

RigExpert AA-35 ZOOM is made in Ukraine.

Specifications are subject to change without notice.

* Batteries are not included with the analyzer.
