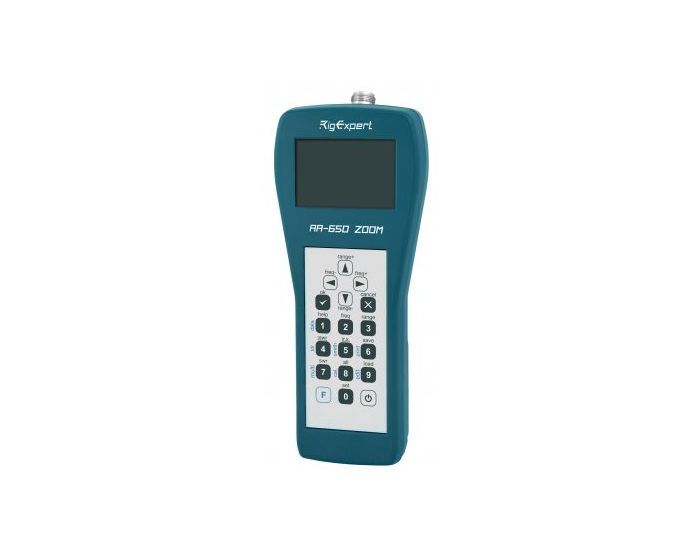

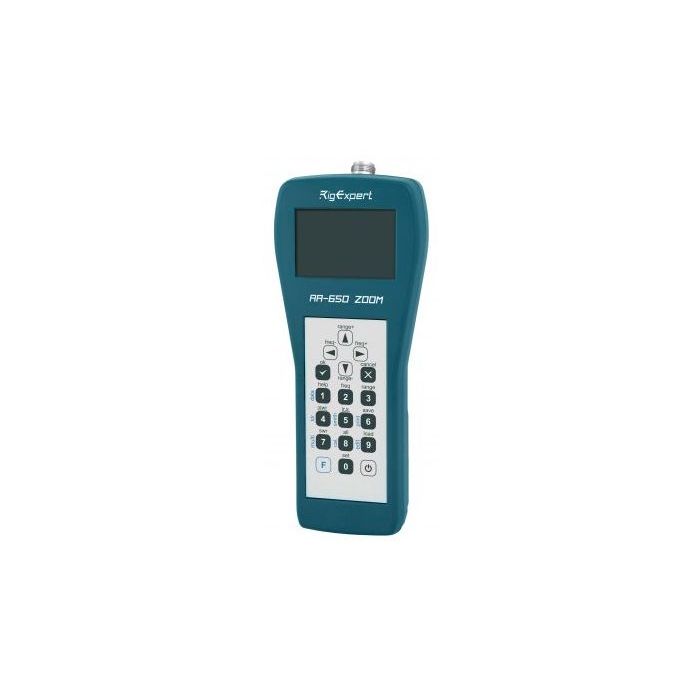

Open Box RigExpert AA-650 ZOOM Antenna Analyzer S/N: 165000081. Analyzer was used in HamRadio 2.0 demonstration.
Frequency range: 0.1 to 650 MHz
Frequency entry: 1 kHz resolution
Measurement for 25, 50, 75 and 100-Ohm systems
SWR measurement range: 1 to 100 in numerical mode,
1 to 10 in graph mode
SWR display: numerical or easily-readable bar
R and X range: 0…2000, -2000…2000
Display modes:
– SWR,
– Return loss, R, X, Z, L, C,
– Magnitude and Phase Angle at a single frequency,
– SWR chart (100 points). SWR chart at fixed HAM bands by IARU Regions (100 points),
– Cable tools (Velocity factor & Cable length measurer, Stub tuner, Cable loss chart, Cable impedance chart),
– TDR
Optional open-short-load calibration in SWR, R, X, or Smith/polar chart graph modes.
RF output:
– Connector type: N
– Output signal shape: square, 0.1 to 200 MHz. For higher frequencies, harmonics of the main signal are used.
– Output power: -10 dBm (at 50 Ohm load)
Power:
– Three 1.5V, alkaline batteries, type AA *
– Three 1.2V, 1800…3000 mAh, Ni-MH batteries, type AA
– Max. 3 hours of continuous measurement, max. 2 days in standby mode when fully charged batteries are used
– When the analyzer is connected to a PC or a DC adapter with a USB socket, it takes power from these sources
Interface:
– 320×240 color TFT display
– 6×3 keys on the water-proof keypad
– Multilingual menus and help screens
– USB connection to a personal computer
– Bluetooth v. 4.2 (Single-mode, Class B)
Dimensions: 23x10x5.5 cm (9x4x2”)
Operating temperature: 0…40 °C (32…104 °F)
Weight: 650g (23 Oz)
Warranty: 2 years RigExpert Care
GTIN-13: 4820185420297
