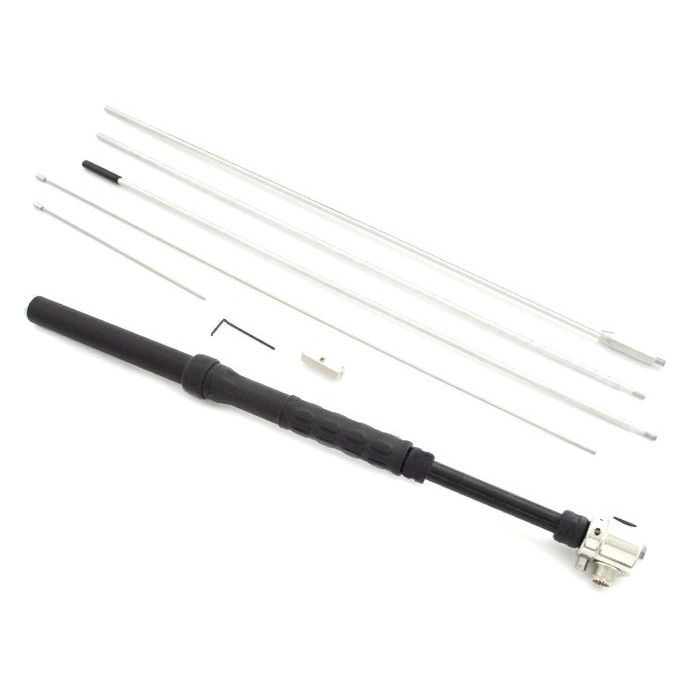

Open Box Yaesu ATAS-25 Portable Antenna System for 40M-70CM SN163198

Open Box Yaesu ATAS-25 Portable Antenna System for 40M-70CM SN163198

The ATAS-25 utilizes a manual tuning system which resonates the radiating element for lowest SWR without the need for expensive, inconvenient mono-band resonating whip assemblies. The ATAS-25 allows dual-frequency operation (on HF or 50 MHz and either 144 or 430 MHz), if two transceivers are combined via a suitable diplexer (not supplied). The ATAS-25 is designed to mount directly onto a standard camera tripod (not supplied).

OPERATING BAND
RADIATING ELEMENT(S)
7 MHz - Three Elements
14 MHz - Three or Two Elements
21 MHz - Two Elements
28 MHz - Two or One Elements(s), or No Connection
50 MHz - Do Not Connect
144 MHz - Not Used
430 MHz - Not Used
