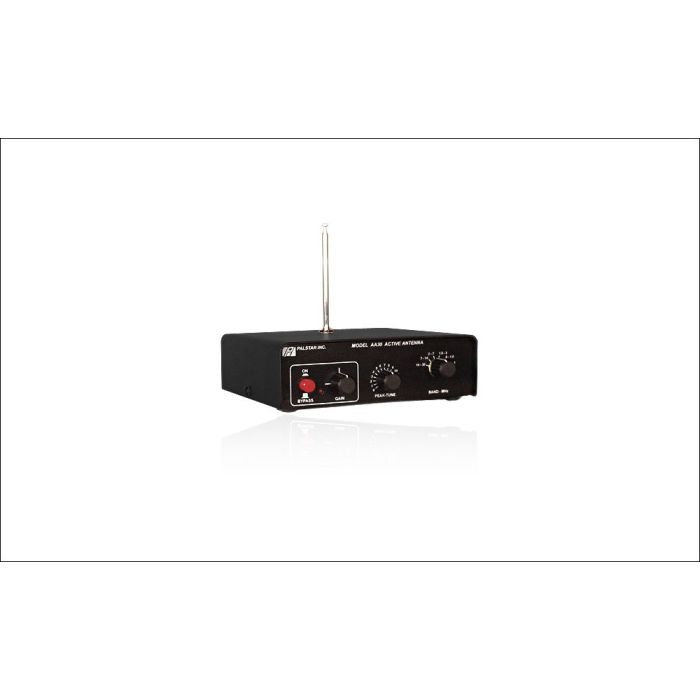

Palstar AA30
The Palstar AA30's Active Antenna is designed for the avid SWL who is unable to put up an outdoor antenna.
Utilizing the built in whip antenna or an external wire, the AA30’s pre-amplifier circuit provides from –10 to +15 dB of gain over a frequency range of 300kHz to 30mHz.
A varactor-tuned pre-selector with 6 band ranges prevents strong out-of-band signals from overloading the pre-amplifier. Rear switch can select either wall transformer input or a 9V internal heavy duty battery. As on all Palstar tuners the front panel and top cover are powdercoated.
Utilizing the built in whip antenna or an external wire, the AA30’s pre-amplifier circuit provides from –10 to +15 dB of gain over a frequency range of 300kHz to 30mHz.
A varactor-tuned pre-selector with 6 band ranges prevents strong out-of-band signals from overloading the pre-amplifier. Rear switch can select either wall transformer input or a 9V internal heavy duty battery. As on all Palstar tuners the front panel and top cover are powdercoated.
| Gain: | -10 to +15dB, adjustable, switchable bypass |
| Frequency: | 300kHz - 30mHz |
| Whip antenna: | 20" telescopic whip for use as active antenna |
| Input: | 50 Ohm SO235 wire input (wire not included) |
| Chassis: | .090 ga. aluminium iridite coated |
| Top cover: | .090 ga. aluminium powder coated |
| Front cover: | .090 ga. aluminium powder coated |
| Dimensions: | 6" wide x 1 3/4" high x 6" deep |
| Shipping weight: | 0.5 lbs |
| Warranty: | One year |
