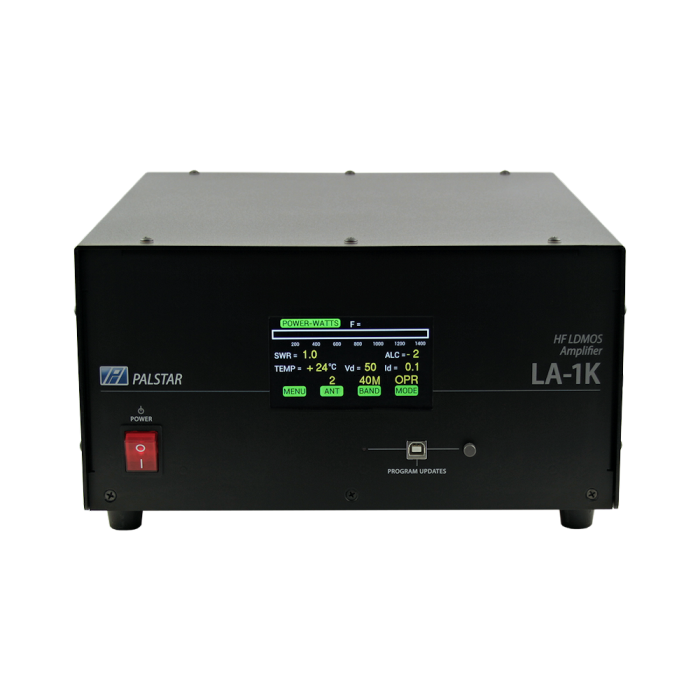

Palstar LA-1K 1kW Solid State Amplifier

Output Power

• SSB POWER: 1000 Watts PEP CW ICAS
• CW MODE: Power levels up to 850W transmissions | 5 minutes on, 1 minute off
• FM/RTTY: 500 watts
• AM: 275 watts

FREQUENCY RANGE: 1.8 TO 54 MHz
DISPLAY: Color TFT touch screen
OUTPUT: 3 RF SO-239 connectors
ALC: Exciter power control
GAIN: 13+/-1dB (NOMINAL)
RF SENSING: Auto band switching
RF OUTPUT: Vacuum REL AY R/T Switching
POWER SUPPLY: Internal Medical grade
DC SUPPLY: 100VAC - 250VAC/50V@42A
POWER DEVICES: 2 x 5600H 600W (LDMOS)
INTERMOD: Low IMD Distortion >-35dB
PURESIGNAL: Sample @ + 10 dBm Rear Panel @ 1kW output
COOLING: Variable Speed Fans (3 speed)
CHASSIS: .090 ga. aluminium
TOP COVER: .090 ga. aluminium, powder coated
DIMENSIONS: 12.75” W x 6.25“ H x 16.5” D
WEIGHT: 27 LBS, 12.25 Kg
DESIGN CONCEPT: Full compatibility with Palstar HF-AUTO autotuner
WARRANTY: Two year

Radio Interface Cables

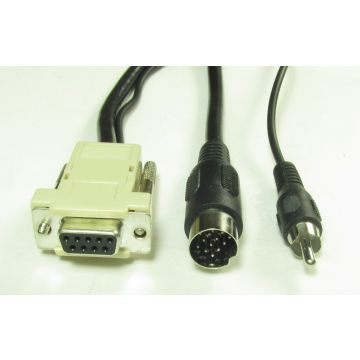

DB-13D - ICOM 13 Pin Din Radios

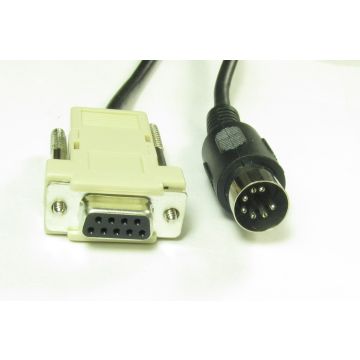

DB-7DI - ICOM 7 Pin Din Radios

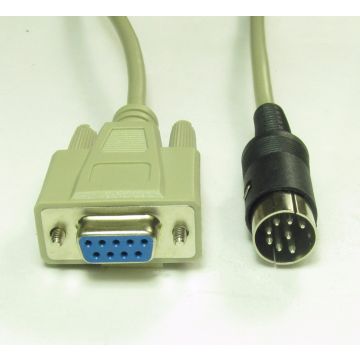

DB-8DY - Yaesu 8-pin DIN Radios, BAND DATA PORT

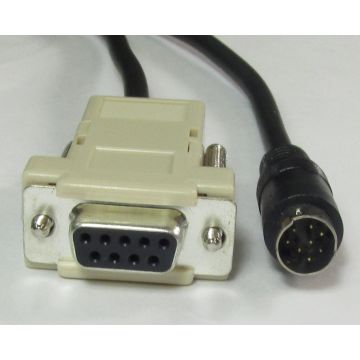

DB-8MY2 - Yaesu 818, 857, 897, 991/A

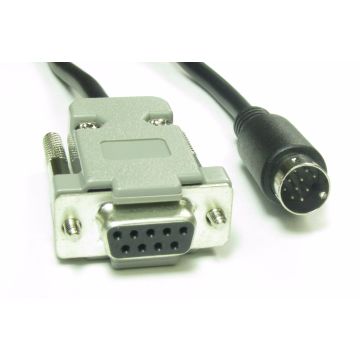

DB-10MY - Yaesu FT-450, FT-950 Yaesu 10 pin Din

Included with the LA-1K:

• Two (2) line cords for 110VAC and 220VAC
• User Manual
• Palstar LA-1K Amplifier unit
• Shipping box (please keep box for warranty repair, etc.)
